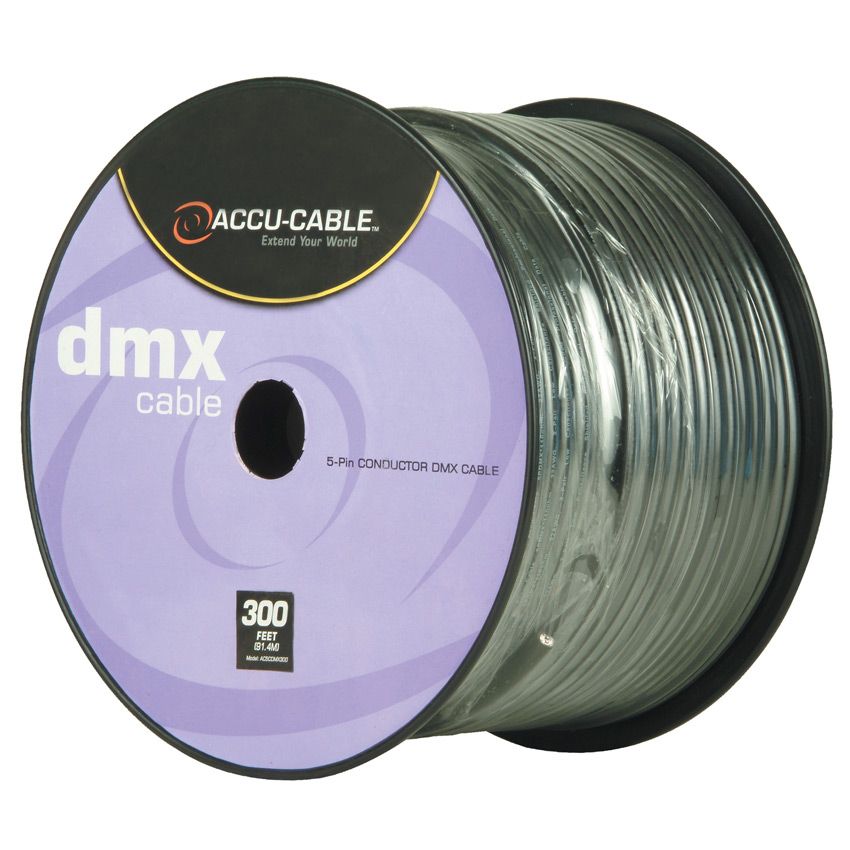

Accu-Cable AC5CDMX300 5 Pin DMX Cable 300-Foot Spool

Accu-Cable AC5CDMX300 5-Pin DMX Cable 300-Foot Spool

22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

SPECIFICATIONS

Conductor

• Number of Pairs: 2
• Total Number of Conductors: 4 (Plus 1 Ground)
• AWG: 22
• Stranding: 0.15 x 19
• Conductor Diameter: 0.0354"
• Conductor Material: TC-Tinned Copper

Insulation

• Material: PE (Polyethylene)
• Lay Length: 1.1"
• Direction: Left Hand Lay
• Twists: 10.9 Per Foot

Inner Jacket

• Material: PE (Polyethylene)
• Diameter: 0.055"
• Pair Color Code: Green/Black/Red/White

Outer Shield

• Trade Name: Duofoil®
• Type: Tape/Braid
• Layer 1: Aluminum Foil-Polyester, 100% Coverage
• Layer 2: TC-Tinned Copper Braid, 85% Coverage

Outer Jacket

• Material: PVC (Polyvinyl Chloride)
• Overall Nominal Diameter: 0.295"

Mechanical Characteristics

• Operating Temperature Range: -30°C to +75°C
• Bulk Cable Weight: 50 lbs/1000 ft
• Minimum Bend Radius (Install): 3.5"
• Maximum Recommended Pull Tension: 22 lbs

Electrical Characteristics

• Nominal Characteristic Impedance: 110 Ohms
• Nominal Capacitance (Conductor to Conductor @ 1 kHz): 12.5 pF/ft
• Nominal Capacitance (Cond. to Other Cond. & Shield @ 1 kHz): 23 pF/ft
• Nominal Velocity of Propagation: 76%
• Nominal Delay: 1.6 ns/ft
• Nominal Conductor DC Resistance @ 20°C: 24 Ohms/1000 ft
• Shield DC Resistance @ 20°C: 15 Ohms/1000 ft
• Nominal Attenuation: 0.6 dB/100 ft @ 1 MHz
• Maximum Recommended Current: 2.1 Amps per Conductor @ 25°C

Manufacturer: ADJ Supply
Model: AC5CDMX300
SKU: I364430-N-1-WHXE
UPC: 819730011183
