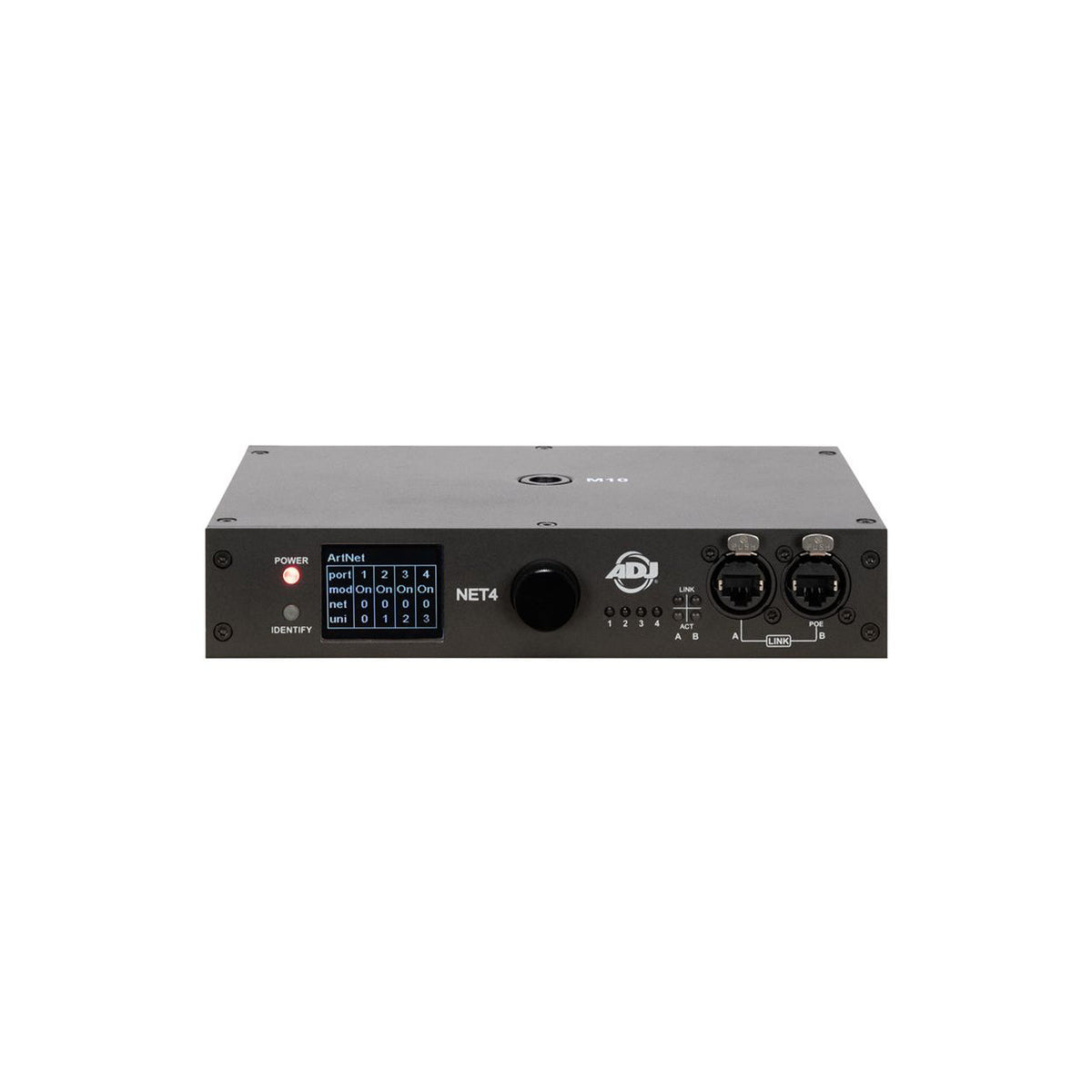

ADJ Net 4 4-port DMX Over Ethernet Node

Integrate Seamlessly with the ADJ NET 4 DMX over Ethernet Node

NET 4 is a versatile 4-port DMX over Ethernet node that can be truss mounted with M10 or M12 threads or rack mounted using the optional Aria X2 shelf. It is compatible with DMX-512, RDM, Art-Net and sACN protocols, ensuring a broad spectrum of integration possibilities. The 1.7-inch LED display facilitates easy configuration, allowing you to fine-tune settings and monitor status at a glance.

• Art-Net, sACN, and DMX 4-port node
• Line voltage or Power over Ethernet (PoE) powered
• DHCP or static IP address support
• 1.7-inch LCD display
• Configurable via unit menu or web browser
• Four DMX output indicators
• Four network status indicators
• M10 and M12 threads for rigging
• Safety eyelet included
• Two indoor RJ45 input and output ports
• Four 5-pin XLR input/output ports

SPECIFICATIONS

Protocols

• DMX512
• RDM
• Art-Net
• sACN

Physical

• Mounting Threads: M10 and M12
• Safety Eyelet: Included
• RJ45 Ports: 2x indoor input and output
• XLR Ports: 4x 5-pin input/output

Dimensions and Weight

• Length: 5.93 inches (150.5 mm)
• Width: 8.48 inches (215.3 mm)
• Height: 1.66 inches (42 mm)
• Weight: 3.16 lb. (1.43 kg)

Power

• AC Input: 95–240 V, 50/60 Hz
• PoE: 802.3af
• AC Power Consumption: 15 W
• PoE Power Consumption: 15 W
• Power Usage: 118 mA 5 W (AC100V), 104 mA 5 W (AC120V), 66 mA 5 W (AC230V)
• Power Input Protection: Fuse, T1.25A/250 (5.2 x 20 mm)

Thermal

• Ambient Operational Temperature: 32°F to 113°F (0°C to 45°C)
• Humidity: Less than 75%
• Storage Temperature: 77°F (25°C)

Certifications and IP Rating

• Certifications: CE, UKCA, cETLus (Control # 5014475), FCC
• IP Rating: IP20

Included Accessories

• Outdoor locking power cord

Optional Accessories

• Aria X2 Shelf
• 35 mm Din Rail adapter (2 pcs. required)
