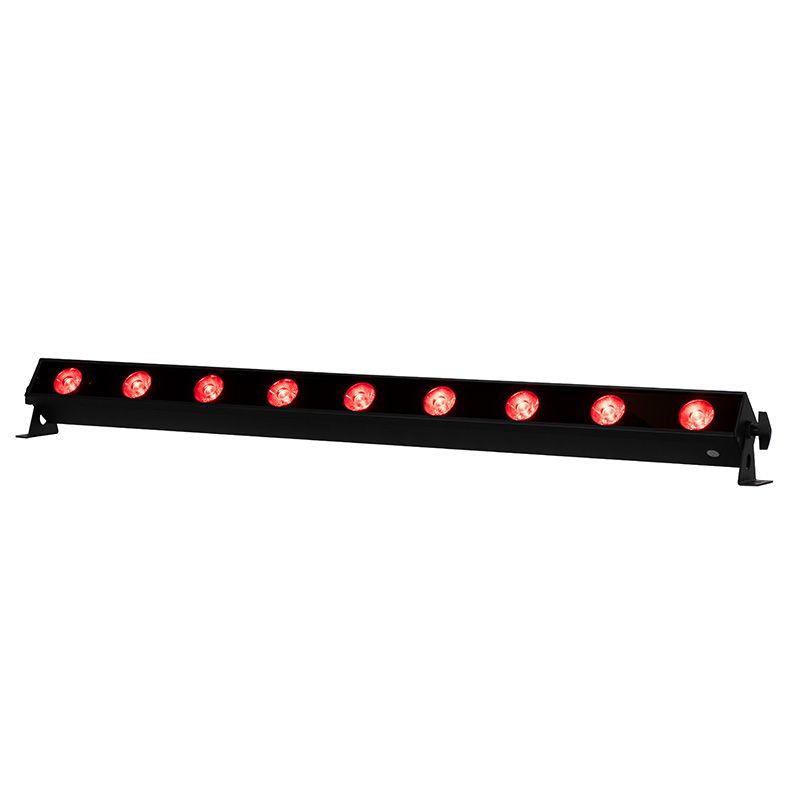

ADJ UBL9H 180-Watt RGBAL+UV HEX LED Light Bar Wash

Higher Caliber of Color Indexing - The ADJ UBL9H 180-Watt RGBAL+UV HEX LED Light Bar Wash

The ADJ Ultra Series has long provided lighting designers and event producers the creativity to create event linear wash lighting for walls, floors and ceilings. The UBL9H incorporates a lime-infused HEX LED with nine (9) 20-Watt (Red, Green, Blue, Amber, Lime and UV) LEDs. The added lime chip offers a higher caliber of color indexing with a high CRI of over 90 along with tunable white light control from 2,300K to 9,900K.

• Compact, lightweight 4 x 20-watt HEX-color LED PAR for stage setups of all sizes
• Patented “sit-flat” design features DMX data and power cables on each side of the fixture, enabling you to daisy chain additional lights for larger setups
• Can be fixed to truss systems or placed directly onstage, thanks to its stable rubber feet
• Tunable white temperature control from 2,300–9900K permits additional user flexibility
• Easily navigable 4-button OLED display menu
• 7 DMX channel modes with 3-pin connectors
• 63 built-in color macros and 13 built-in programs deliver highly customizable visual displays
• Includes a 20° frost filter, a wireless IR remote, an IEC power cord, a safety cable, and a scissor yoke

SPECIFICATIONS

• Light Source:
  • 9 x 20W Ultra bright (Red, Green, Blue, Amber, Lime and UV) LEDs
  • Long Life LEDs (Rated at approximately 50,000 hrs.)
  • 17° beam angle
  • CRI >90
  • Pixel Pitch: 113mm
• Features:
  • Linear Color Temperature Control (2,300K to 9,900K)
  • Smooth RGBAL+UV color mixing
  • Horizontal Magnetic Alignment feature (Built-In)
  • Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)
  • RDM Compatible
• Control:
  • Linear Color Temperature Control (2,300K to 9,900K)
  • OLED Display with 4-buttons
  • 7 DMX Channel Modes: 6, 11, 13, 16, 18, 25, & 28 Channels
  • 3 Groups x3 RGBAL+UV LED pixels controllable via DMX in 18, 25 & 28 channel modes
  • 5 operational modes: Auto Run, Program Mode, Sound Trigger, RGBAL+UV Manual, and DMX-512 Mode
  • LED Refresh Rate: 1.9KHz
  • 64 built-in Color Macros
  • 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • 4 selectable Dim Curves (Square, Linear, Inv. Square & S. Curve)
  • Built-In Microphone for sound trigger
  • LED pulse and strobe effect
  • Electronic Dimming: 0-100
• Connections:
  • Linkable: DMX via 5-pin XLR cable
  • Locking power In/Out to daisy chain power
• Electrical:
  • Multi-voltage operation: AC 100V-240V 50/60Hz
  • Power Draw: 54W
  • Daisy-chain power link (Up to 22 UBL9H's can be linked @120V and up to 40 UBL9H's can be linked @230V)
• Dimensions / Weight:
  • Dimensions (LxWxH): 2.96" x 42.60" x 4.2" (75x1082x106.7mm)
  • Weight: 7.28 lbs./ 3.3kg.
• Certifications / IP Rating:
  • cETLus (Control # 4002034)
  • CE
  • FCC
  • IP20
• Environment:
  • Operational Temperature Range: -4°F ~ 113°F (-20°C ~ 45°C)
  • Storage Temperature: -22°F ~ 113°F (-30°C ~ 45°C)
• What's Included:
  • (1) Indoor Locking Power Cord
  • (1) UC-IR24
  • (1) 20° Diffusion Filter
  • Includes mounting brackets to set on the ground or to mount a clamp to for truss mounting
• Optional Accessories:
  • (1) 1x40° Linear Diffusion Lens (SKU: UBL912)
