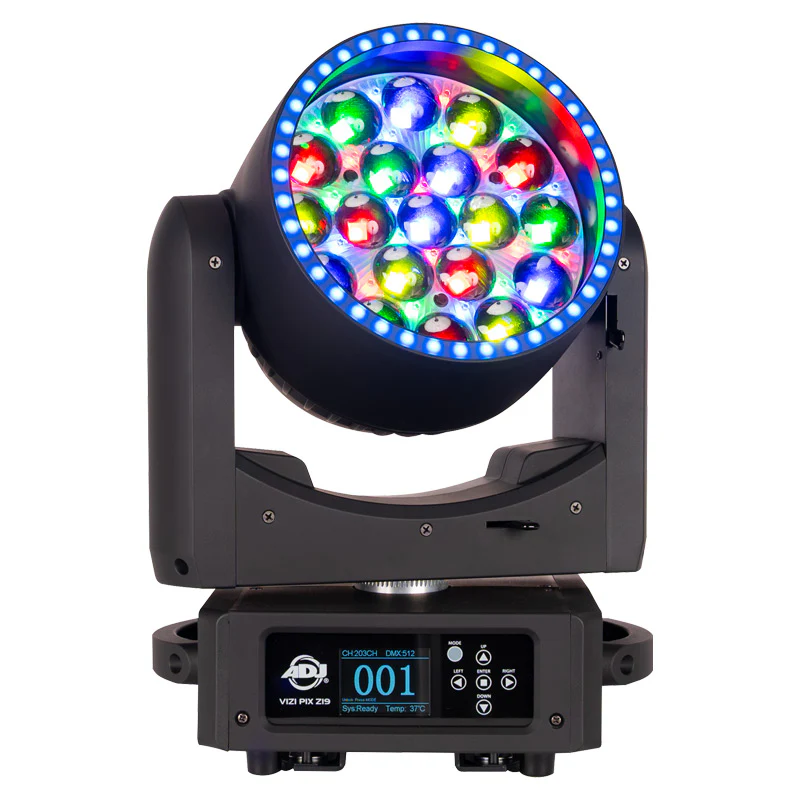

ADJ Vizi Pix Z19 Moving-Head Wash Fixture

Immersive Control – The ADJ Vizi Pix Z19 Moving-Head Wash Fixture

Vizi Pix Z19 is a cutting-edge tool for modern lighting designers, delivering a stunning array of dynamic effects and advanced virtual CMY color mixing for an unforgettable live experience. Featuring 19x 30-Watt RGBL LEDs, vibrant RGB background LEDs, and an innovative LED ring, it creates immersive beams, washes, and vibrant color effects that captivate audiences.

• Moving light pixel wash with effects
• Individual pixel control for foreground and background LEDs
• RGB LED ring
• Built-in pixel effect programs
• Aria X2 Wireless Management System
• Electronic strobe and dimmer
• Pan/tilt: 630/540 x 270
• Motorized zoom
• Color calibrated pixels for batch-to-batch consistency
• Virtual CMY DMX control modes
• Virtual foreground and background color wheel control
• Selectable LED refresh rates (900 Hz ~ 25K Hz)
• Selectable dim modes with user settable dim speed (0.1s ~ 10s)
• Four dim curves: square, linear, inv. square, and S curve
• 0–100% smooth dimming
• Fan cooled

SPECIFICATIONS

Optical (Foreground LEDs)

• 19x 30W RGBL (4-in-1) LEDs
• 30,000-hour average LED life
• CRI: 86
• 15,000 Lux (zoomed in to 7° at 5 meters)
• Beam angle: 7°–42°
• Field angle: 9°–60°

Optical (Background LEDs)

• 30x 0.5W SMD RGB LEDs
• 50,000-hour average LED life

Optical (Ring LEDs)

• 40x 0.5W SMD RGB LEDs
• 50,000-hour average LED life

Colors

• 19x RGBL LEDs (Red, Green, Blue, Lime)
• 70x RGB LEDs (Red, Green, Blue)
• Virtual CMY DMX control modes
• Virtual foreground and background color wheel control
• Built-in color macros
• Linear white color temperature control: 2,700K–10,000K
• Color temperature presets: 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000, 10,000K

Effects

• Foreground: 19x 30W RGBL LEDs, fully pixel mappable
• Background: 30x 0.5W RGB LEDs, fully pixel mappable
• Ring: 40x 0.5W RGB LEDs, three-channel control
• Variable strobe and pulse effects (0.5 Hz to 33 Hz)
• Motorized zoom (7°–42°)

Connections

• Seetronic IP65 locking power in and thru
• Seetronic IP20 5-pin DMX in and out
• 2x IP20 RJ45 network ports

Control

• Aria X2 Wireless Management System
• DMX-512, RDM, Artnet, sACN
• 7 DMX control modes: 32 / 43 / M1 58 / M2 58 / 203 / 123 / 133 channels
• Built-in effect pixel programs with speed and fade control
• Wired digital communication network

Pan/Tilt

• Pan: 630 or 540 degrees
• Tilt: 270 degrees
• 16-bit fine pan and tilt
• Pan and tilt locks

Electrical

• Multi-voltage operation: 230V, 50 Hz only
• Max power consumption: 730W (6.64A) at 120V; 690W (3.04A) at 230V

Dimensions and Weight

• Dimensions (L x W x H): 12.2 x 9.0 x 16.0 in (310 x 230 x 408 mm)
• Weight: 22.6 lbs (10.1 kg)

What’s Included

• 108 mm Omega brackets (2x)
• 1x 2 m IP65-rated locking power cable

Approvals / Rating

• cETLus (Control # 5028947)
• CE Certified
• FCC
• IP20
