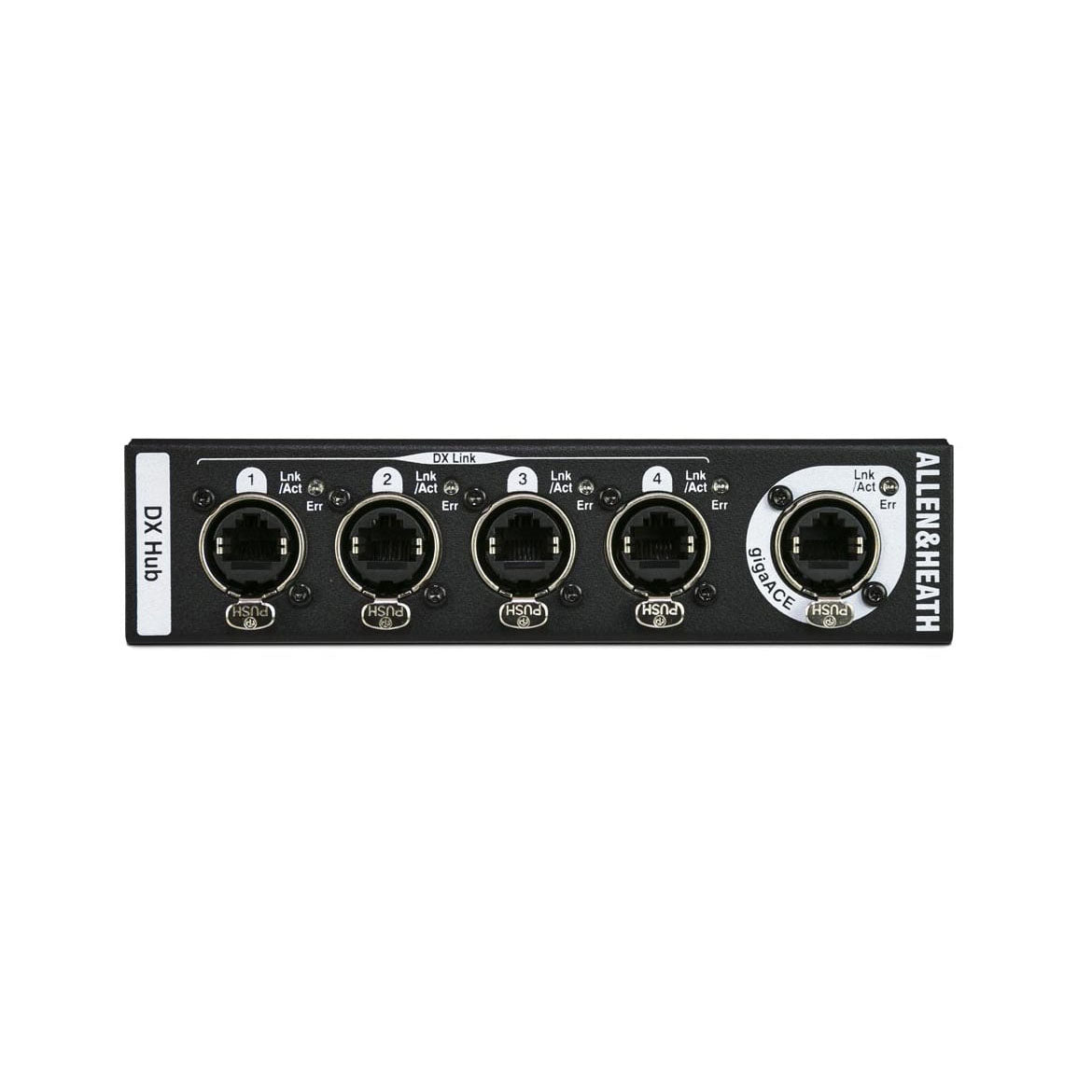

Allen & Heath DX Hub Remote Expander Hub

Allen & Heath DX Hub Remote Expander Hub

DX Hub provides 4 DX Link ports each carrying 32×32 channels of 96kHz audio, that can be used to connect to DX expander units. Up to 2 DX expanders can be connected to each DX Link port allowing up to 128 remote inputs and 64 remote outputs to be added to the system. Multiple DX Hubs can be used for further expansion, or for dual redundancy (dLive only)

• Massively Expand I/O: Each of the 4 DX Sockets Can Support up to 2 DX168/DX164-W/DX012 Expanders or 1 DX32 Expander
• Rack Mountable: Optional 19-Inch Rackmount Kit Available for Fixed Installations or Touring
• Redundant Mode: A Pair of DX Hubs Can Be Used for Dual-Cable Connection to Compatible dLive Hardware
• Single Cable Trunk: A Single CAT5 Run from the DX Hub to Your Mixer Reduces Cabling Requirements

SPECIFICATIONS

• Type: DX Link Expansion Hub
• Compatibility: Allen & Heath SQ series, dLive series, Avantis series
• Channels: 128 x 128 (32 ch per port)
• Sample Rate: 96kHz
• Data I/O: 4 x EtherCON (DX Link)
• Manufacturer Part Number: AH-DX-HUB
