Allen & Heath DX012 12-Output Expander for SQ, Avantis, and dLive

Expand Your Remote Outputs with the Allen & Heath DX012 12-Output 96kHz Expander

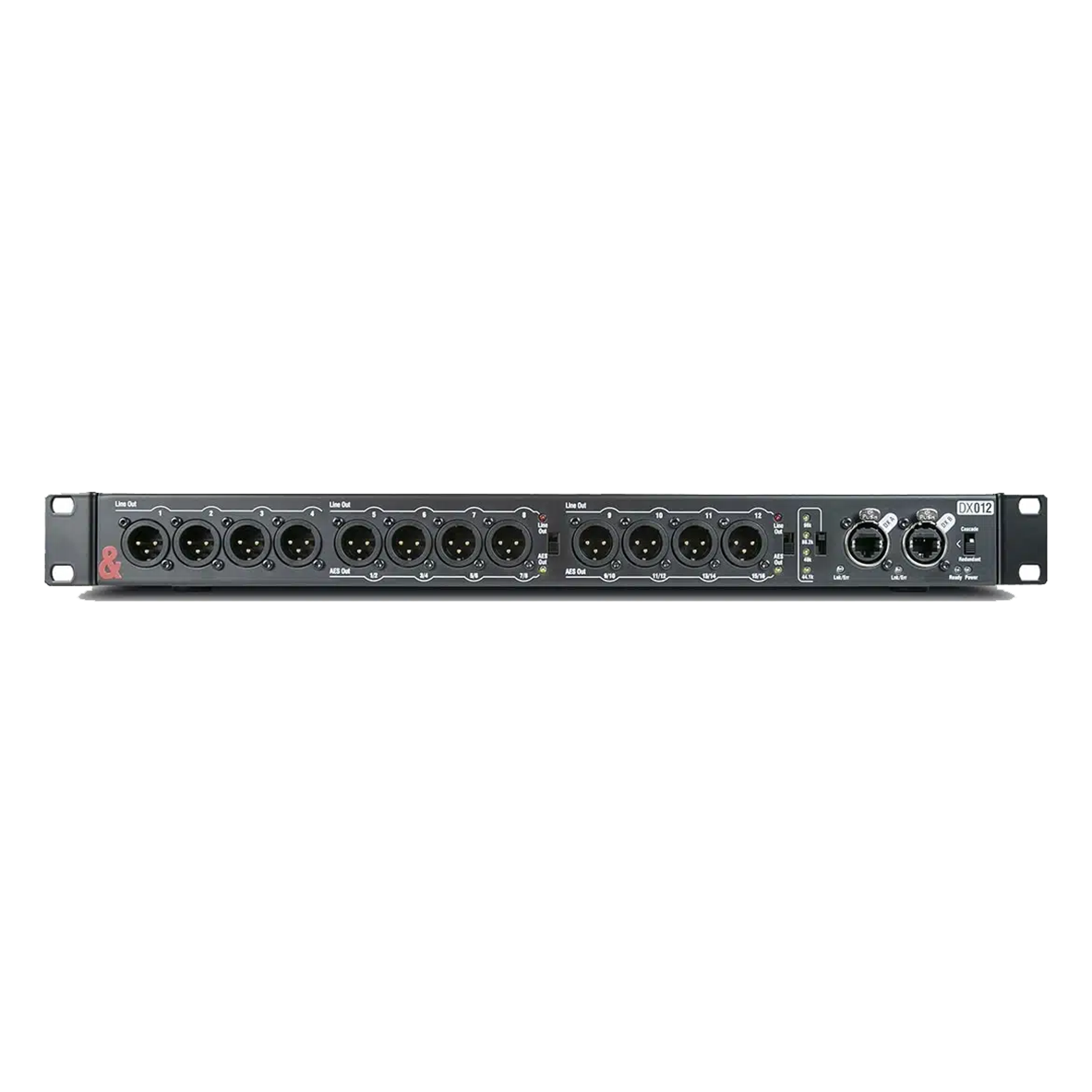

The Allen & Heath DX012 is a compact 1U 96kHz output expander designed to provide remote output expansion for compatible Qu, SQ, Avantis, and dLive mixers, as well as AHM audio matrix processors. With 12 XLR outputs and flexible switching between balanced analogue and stereo AES digital outputs, the DX012 is ideal for feeding IEM systems, amplifier racks, and other remote audio destinations.

• 12 XLR outputs for flexible remote system expansion
• Supports balanced analogue and stereo AES digital output configurations
• AES outputs support 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz sample rates
• Redundant mode supports dual-cable connection to compatible hardware
• Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port
• Plug-and-play operation requires no manual configuration
• Firmware updates are handled automatically by the connected mixer
• Can be positioned up to 100 meters from the mixer
• Connects using standard Cat5e cable through secure EtherCon ports
• Integrated rack ears allow installation in a standard 1U 19-inch rack space
• Compatible with dLive, Avantis, SQ / SQ+, 96kHz Qu models, and AHM systems

Flexible Analogue and AES Output Options

The DX012 provides 12 XLR output connectors with multiple configuration options to suit different system requirements. It can operate with 12 analogue line outputs, 8 analogue line outputs plus 4 stereo AES outputs, or 4 analogue line outputs plus 8 stereo AES outputs. Outputs 5-12 can be switched between balanced, relay-protected analogue operation and stereo AES digital output.

Remote I/O Where You Need It

The DX012 can be positioned up to 100 meters from the connected mixer, making it well suited for distributed systems where outputs are required near monitor racks, amplifier racks, stages, or other remote equipment locations. A single Cat5e cable connects the expander to the mixer or an upstream DX Expander through a locking EtherCon connection.

Redundant or Cascaded Operation

A second locking EtherCon port provides additional system flexibility. In Redundant mode, it supports a second cable connection to compatible hardware for increased connection reliability. In Cascade mode, the port can be used to daisy-chain another DX Expander for additional remote I/O.

Plug-and-Play Integration

The DX012 is designed for straightforward deployment with compatible Allen & Heath systems. No manual configuration is required—simply connect the expander and begin working. Firmware updates are also managed automatically by the connected mixer.

SPECIFICATIONS

General

• Product Type: 96kHz remote output expander
• Output Channels: 12
• Rack Size: 1U
• Maximum Distance from Mixer: 100 m
• Connection Cable: Cat5e

Output Configurations

• Configuration 1: 12 analogue line outputs
• Configuration 2: 8 analogue line outputs + 4 stereo AES outputs
• Configuration 3: 4 analogue line outputs + 8 stereo AES outputs
• Outputs 5-12: Switchable between balanced relay-protected analogue and stereo AES digital

AES Digital Audio

• AES Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, or 96 kHz

DX Connectivity

• Primary DX Connection: Locking EtherCon
• Secondary DX Connection: Locking EtherCon
• Redundant Mode: Dual-cable connection to compatible hardware
• Cascade Mode: Daisy-chain up to 2 DX Expanders per DX port

Compatible Systems

• Allen & Heath dLive
• Allen & Heath Avantis
• Allen & Heath SQ / SQ+
• Allen & Heath Qu 96kHz Models
• Allen & Heath AHM Audio Matrix Processors

Manufacturer: Allen & Heath
Model: AH-DX012
SKU: I617813-N-1-WHXA
EAN: 6938122249431
