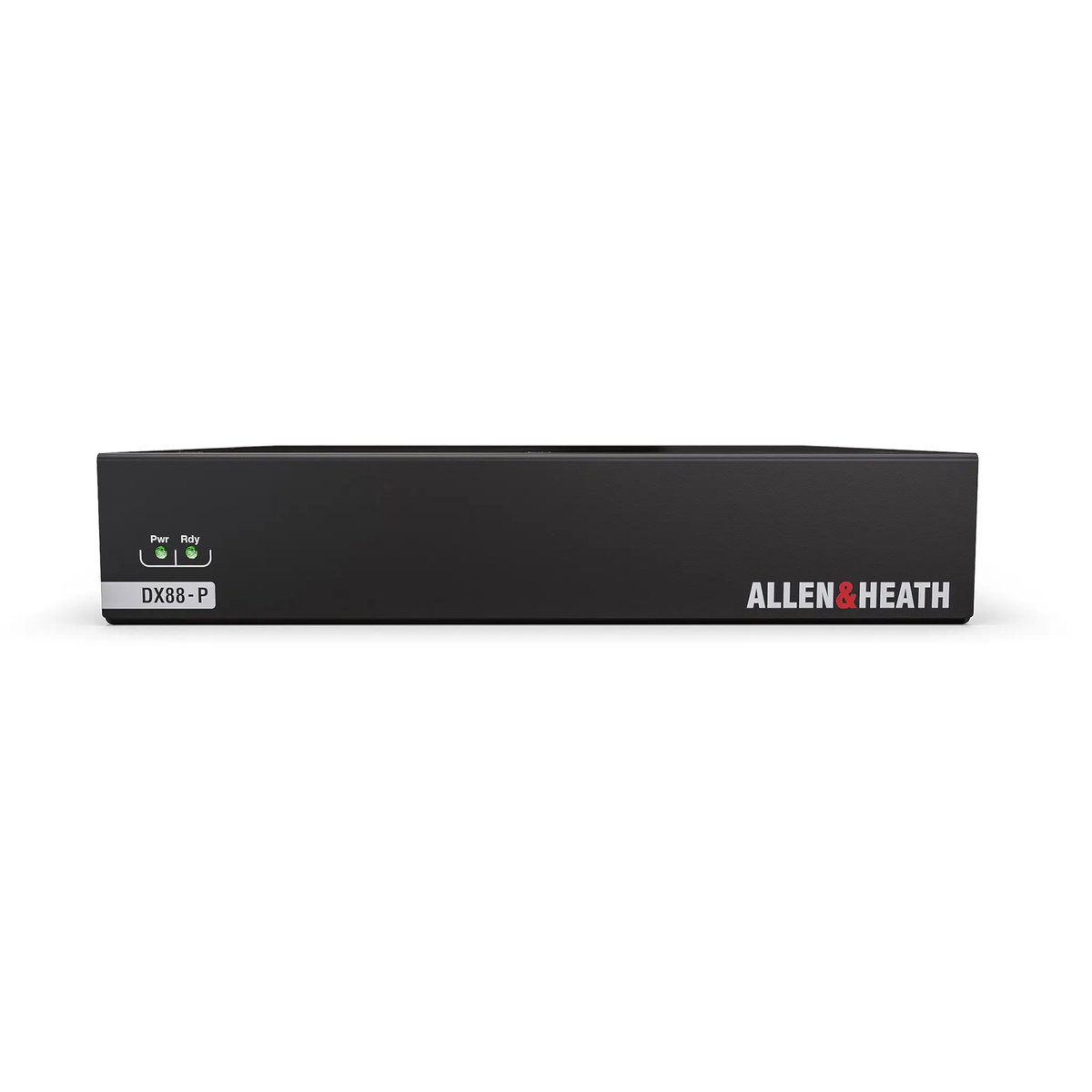

Allen & Heath DX88-P 8x8 96kHz Remote Control Expander Rack
Expand Smartly – The Allen and Heath DX88-P 8×8 96kHz Expander The DX88-P provides 8 inputs and 8 outputs on Phoenix / Euroblock connectors for fixed installations and is an easy way to add local or remote expansion to AHM audio matrix...
PRODUCT DETAILS
Everything you need to know.
Expand Smartly – The Allen and Heath DX88-P 8×8 96kHz Expander
The DX88-P provides 8 inputs and 8 outputs on Phoenix / Euroblock connectors for fixed installations and is an easy way to add local or remote expansion to AHM audio matrix processors.
- Eight mic/line inputs with +60dB gain, phantom power, and -20dB pad
- Eight balanced line outputs on Phoenix / Euroblock connectors
- 96kHz operation for premium audio quality
- Plug-and-play with automatic firmware updates via connected device
- Cascade mode supports daisy-chaining of two DX expanders per DX port
- Can be placed up to 100 meters away via Cat5e (or higher) cable
- Compatible with dLive, Avantis, SQ, and AHM series systems
- Optional 1U rackmount kit supports up to two DX88-P units or pairing with DX Hub / GPIO module
- Ideal for AV switchers, control rooms, or distributed I/O applications
SPECIFICATIONS
- Inputs: 8 Phoenix / Euroblock mic/line inputs with 5–60dB gain, phantom power, and -20dB pad
- Outputs: 8 Phoenix / Euroblock balanced line outputs
- Audio Rate: 96kHz
- Connectivity: DX A (input), DX B (cascade); Cat5e or higher, up to 100 meters
- Expansion: Up to 8 DX88-P units via DX Hub
- Mounting: Optional 1U 19-inch rackmount kit available
Manufacturer: Allen & Heath
Model: AH-DX88-P
SKU: I773770-N-0-WHX
EAN: 6938122253612
