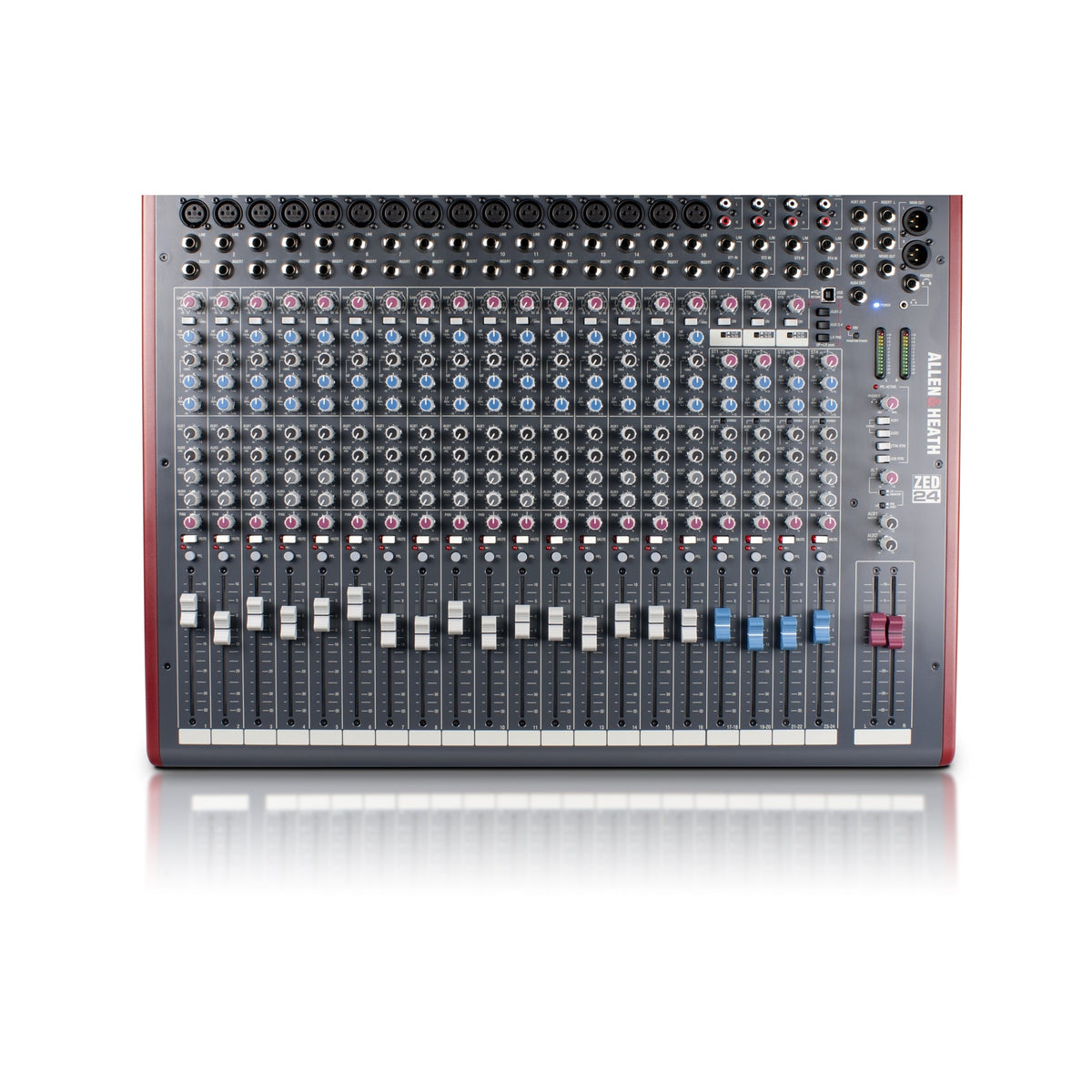

Allen & Heath ZED-24 Mixer With USB

Capture Remarkable Recordings With Advanced features With The Allen and Heath ZED-24 Mixer With USB

Allen and Heath ZED-24 has an incredibly advanced feature-set for a mixer at this level; it has 23 independent sources to the mix, 10 independent outputs, 4 aux sends, Configurable USB audio in/out makes it easy to capture stereo recordings, playback and effects, a unique dual stereo input capability and some very advanced monitoring facilities. In fact, Allen and Heath ZED-24 is so packed full of great features that you'd think it would cost much, much more!

USB Audio Flexibility

Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on Allen and Heath ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your Allen and Heath ZED, select the USB routing on the mixer and the device on your computer and that's it! CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations

Send Options

• Main Mix Left + Right (Post-fade)
• Main Mix Left + Right (Pre-Fade)
• Auxes 1-2
• Auxes 3-FX

Return Options

• To Stereo 3 channel

Musiq

ZED-24 features a responsive 3-band, swept mid frequency EQ design which utilizes MusiQ – with optimized slope (or Q factor) for equalizing individual instruments.

Duopre

Based on the proven pre-amps from the hugely successful PA series, ZED-24 has DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge – 69dB of range to be exact – and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input and also matching to a higher input impedance.

SPECIFICATIONS

• 16 mono channels
• Neutrik mic XLR
• Neutrik 1/4 inch jacks
• Channel insert
• Super wide gain ‘DuoPre’ mic line input
• 3 band EQ with MusiQ
• 4 auxes
• Illuminated mute
• Sound image pan
• Illuminated PFL and peak warning indicator
• ALPS 100mm faders
• 4 stereo channels with 2-band EQ and inputs for extra sources
• Stereo returns and playback
• All inputs with level control
• 12 bar meters
• Mono/stereo function on auxes 1 and 2
• Monitor output section
• Alt stereo output source
• Configurable USB stereo audio in/out
