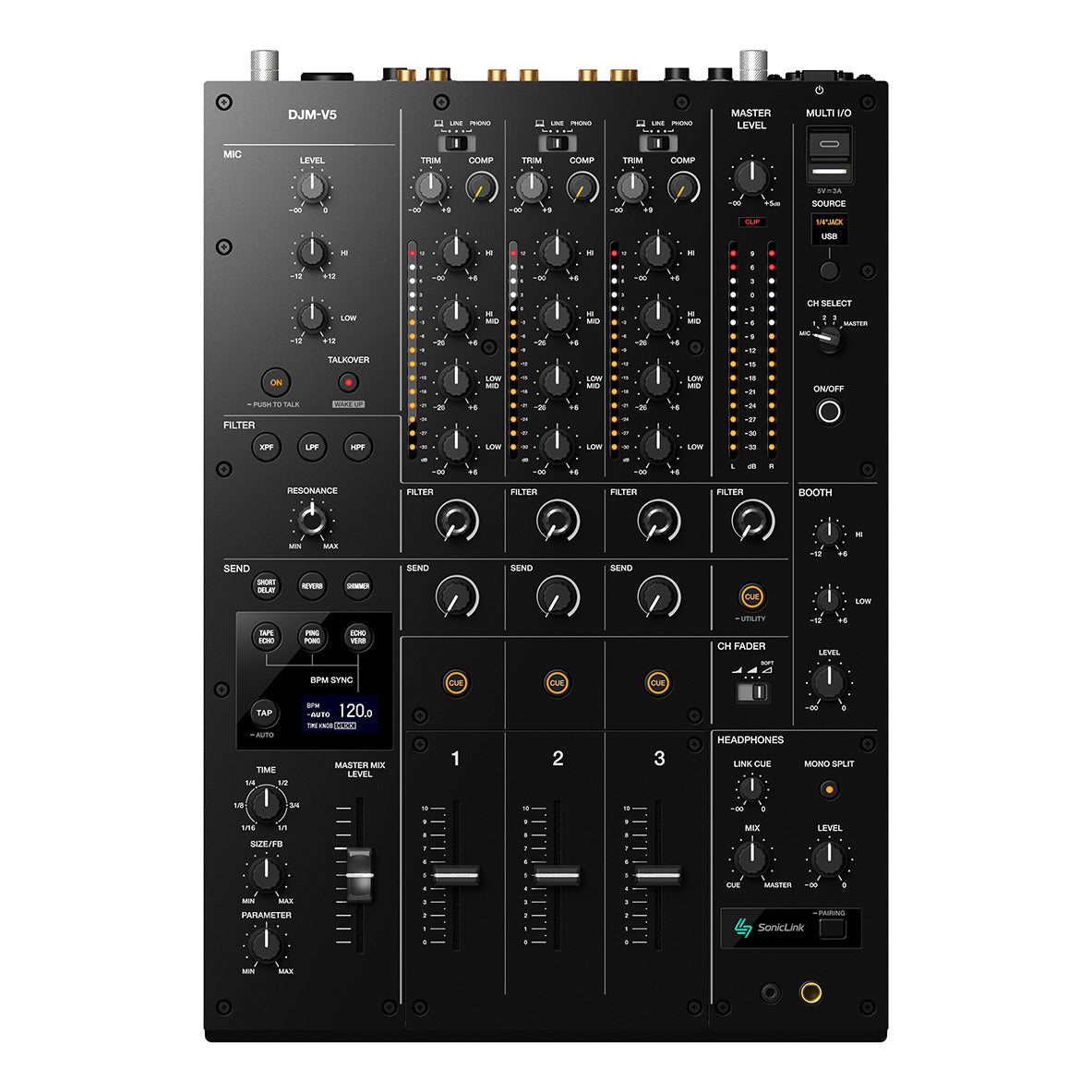

AlphaTheta DJM-V5 Compact 3-Channel DJ Mixer

Next-Generation Compact 3-Channel DJ Mixer - The AlphaTheta DJM-V5 Compact 3-Channel DJ Mixer

Craft your own sound with the AlphaTheta DJM-V5, a next-generation compact 3-channel DJ mixer that brings the design philosophy and sound-shaping power of the DJM-V10 into a smaller footprint. Built for tight DJ booths and modern hybrid setups, DJM-V5 delivers refined, high-resolution audio, advanced filters and Send FX, and a built-in SonicLink transmitter for ultra-low-latency wireless monitoring with compatible headphones like the HDJ-F10.

• Next-generation compact 3-channel mixer inspired by the DJM-V10
• 30% smaller footprint with pro-level layout, tactile feel, and sound control
• 4-band EQ, compressor, filter, and Send FX per channel for detailed mixing
• 60 mm long-throw channel faders (DJM-V10-LF style) for precise level control
• Soft Mix Curve mode adds subtle high-frequency attenuation when lowering a fader for smoother blends
• Studio-grade 96 kHz / 64-bit mixing DSP for clean, warm, high-resolution sound
• High-grade 32-bit ESS A/D and D/A converters in channel input and master output sections
• 6 Send FX: Short Delay, Reverb, Shimmer, Tape Echo, PingPong, Echo-Verb
• 3 filter modes per channel: low-pass, high-pass, and new cross-pass (AlphaTheta first)
• Built-in SonicLink transmitter for low-latency wireless monitoring with compatible headphones
• PRO DJ LINK support for BPM-synced effects and advanced browsing/preview features
• Dual USB Type-C for PC/Mac integration and flexible device workflows

Creative Effects That Feel Like An Instrument

Widen your space and add movement with 6 Send FX—each channel has its own send knob for quick, musical control. Time/decay adjustment is tuned to the effect type: BPM-synced tactile “clicks” for Tape Echo, PingPong, and Echo-Verb (from 1/16 note to 1 beat), and smooth, click-free micro-control for Short Delay, Reverb, and Shimmer. For tonal shaping, the dedicated filter knob offers low-pass, high-pass, and the new cross-pass mode—ideal for keeping low-end power while gently carving mids/highs for fresh vocal and melody variations.

Wireless Monitoring, Built In

DJM-V5 is the first mixer with a built-in SonicLink transmitter. Pair quickly at the press of a button with the HDJ-F10 for ultra-low-latency wireless monitoring, giving you more freedom in the booth and fewer cables to manage.

PRO DJ LINK + Modern Connectivity

Connect compatible players and rekordbox via PRO DJ LINK for precise, BPM-aware effects control. USB Type-C connectivity supports rekordbox for Mac/Windows and Serato DJ Pro (license required). The MULTI I/O workflow expands options for recording, streaming, and external processing—supporting mobile connections (USB Type-C iPhone/iPad models) and USB send/return for creative routing.

SPECIFICATIONS

• Software:
  • rekordbox for Mac/Windows
  • Serato DJ Pro (license needed)
• Frequency Response: 20 Hz – 40 kHz (LINE)
• S/N Ratio:
  • 110 dB (USB)
  • 105 dB (LINE)
  • 88 dB (PHONO)
  • 79 dB (MIC)
• Total Harmonic Distortion: 0.005 % (LINE-MASTER)
• Inputs:
  • LINE x 3 (RCA)
  • PHONO x 3 (RCA)
  • RETURN x 1 (1/4” TS jack)
  • MIC x 1 (XLR & 1/4” TRS jack)
• Outputs:
  • MASTER x 1 (XLR)
  • BOOTH x 1 (1/4” TRS jack)
  • SEND x 1 (1/4” TS jack)
  • HEADPHONE MONITOR x 2 (1/4” stereo jack x 1, 3.5-mm stereo mini jack x 1)
  • REC x 1 (RCA)
• USB:
  • USB (Type-C) x 2
• Other Connections:
  • LINK (LAN) x 1
  • SonicLink (Headphones Output)
• SonicLink:
  • Frequency Band Used: 2.4 GHz
• Maximum Dimensions (W × D × H): 302.0 x 437.5 x 107.9 mm / 11.89” x 17.22” x 4.25”
• Weight: 8.0 kg / 17.6 lb.
• Accessories:
  • Power cord
  • Quick Start Guide
  • Precautions for Use
  • Warranty (for some regions)
