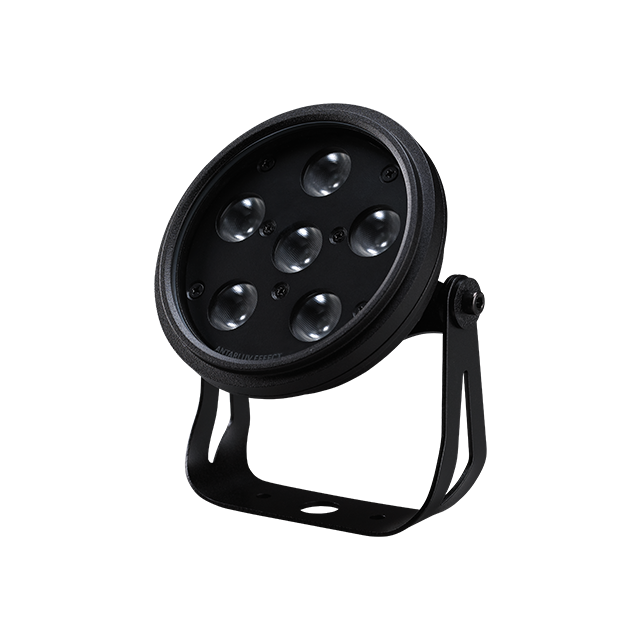

Antari DarkFX Spot 510 IP UV LED Spot

Light Up the Night with the Antari DarkFX Spot 510 IP UV LED Spot

The Antari DarkFX Spot 510 IP is an outdoor-rated professional high-output UV LED spot, well suited for UV reactive material, art, amusement park displays, and signage with bright and vivid colors. The 6 x 1.9W high-power UV LEDs offer a peak wavelength of 365nm and a radiant flux output of 4500mW at full intensity (and minimal visible light). The fixture offers a 15 degree beam angle and is flicker-free for TV and film production. Special optics prevent wear degradation from high UV exposure. The aluminum extruded housing features a built-in adjustable yoke for versatile mounting options. A 22 AWG power/data bare-wire-end pigtail cable is attached on the back and connects to the Antari DarkFX Drive 4 fixture driver (sold separately), which is required for power and DMX control.

• IP65 Rated High Efficiency UV LED Spot
• 15 Degrees Narrow Beam Angle
• Peak Wavelength at 365nm
• Minimum Visible Light
• High Output 4500mW at Full Intensity
• Special Optics to Prevent Wear Degradation from High UV Exposure
• Flicker Free Operation for TV and FILM

SPECIFICATIONS

• SKU: AUV510
• Input Voltage: DC20-24V
• Power Consumption: 12W
• LED: 6 x 3W High Power UV LEDs
• Optics: 15 Degrees
• Radiant Flux Output: 4500 mW
• Project Lamp Life: 20,000 hrs L70 at 25C
• Peak Wavelength: 365nm
• Cable Connection: 22 AWG Wire Cable
• Housing: Die-Cast Aluminum
• IP Rating: IP65
• Dimensions: L 110.5 x W 49.8 x H 134.25 mm
• Dry weight 0.71 kg
