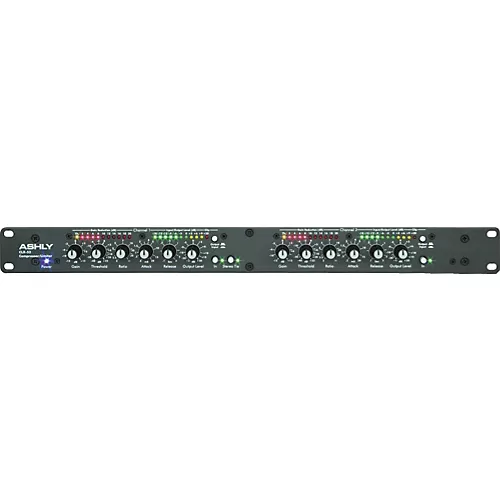

Ashly Audio CLX-52 2-Channel Peak Compressor and Limiter
In stock SKU: I063607-N

Musictoner

Ashly Audio CLX-52 2-Channel Peak Compressor and Limiter

$149.40

Control Dynamics with the Ashly Audio CLX-52 Peak Compressor and Limiter The unit shall be dual (CLX-52) channel compressor limiter with independent gain, threshold, ratio, attack, release, and output level adjustments. XLR and 1/4-inch Connectors Peak Compression Circuitry Precision Balanced Inputs Extremely...

Choose your gear Options and quantity
Secure checkoutEncrypted Shopify payment
Expert guidanceHelp before you order
Shipping detailsDetails vary by product

PRODUCT DETAILS

Everything you need to know.


Control Dynamics with the Ashly Audio CLX-52 Peak Compressor and Limiter

The unit shall be dual (CLX-52) channel compressor limiter with independent gain, threshold, ratio, attack, release, and output level adjustments.


  • XLR and 1/4-inch Connectors
  • Peak Compression Circuitry
  • Precision Balanced Inputs
  • Extremely Low Noise and Distortion
  • Calibrated Threshold Control
  • Detector Patch Point
  • Input-Output Meter Switch
  • Gain Reduction Meters
  • Stereo Tie Switch on CLX-52
  • U.L. Listed
  • 5-Year Worry-Free Warranty


It shall have a detector patch point allowing for the connection of an external equalizer in the detector loop to produce frequency selective limiting; or allows the connection of an external microphone source to produce voiceover-compression. It shall have front panel mounted switches for engaging/defeating the compressor/limiter functions. It shall have front panel switches for selecting input or output meter display. It shall have both XLR and 1/4-inch connectors on inputs and outputs.


SPECIFICATIONS

Controls

  • Gain: +/-15dB
  • Threshold: -40dBu - +22dBu
  • Ratio: 2:1 - infinite
  • Attack Time: 200uSec - 20mSec
  • Release Time: 0.1Sec - 3Sec
  • Output: -40dBu - +20dBu
  • Stereo Tie Switch: Yes (CLX-52)
  • Defeat Switch: Yes

Detector Patch Point

  • Function: Allows side-chain connection of equalizer for frequency selective operation

Audio Performance

  • Input Impedance: 20k Ohms, balanced bridging
  • Output Impedance: 200 Ohms quasi-balanced (terminate with >600 Ohms)
  • Frequency Response: +/-.2dB 20Hz-20kHz
  • Distortion at +15dBu, 1kHz: <0.01%
  • Distortion at +15dBu, 20Hz-20kHz: <0.15%
  • Hum and Noise: -96dBu, unity gain
  • Maximum In-Out Level: +23dBu

Power

  • Power Requirements: 93VAC-120VAC, 50-60Hz, 5W

Size and Weight

  • Size: 19-inch W x 1.75-inch H x 6-inch D
  • Shipping Weight: 8 lbs.


Manufacturer: Ashly Audio
Model: CLX-52
SKU: I063607-N-10-WHXX
