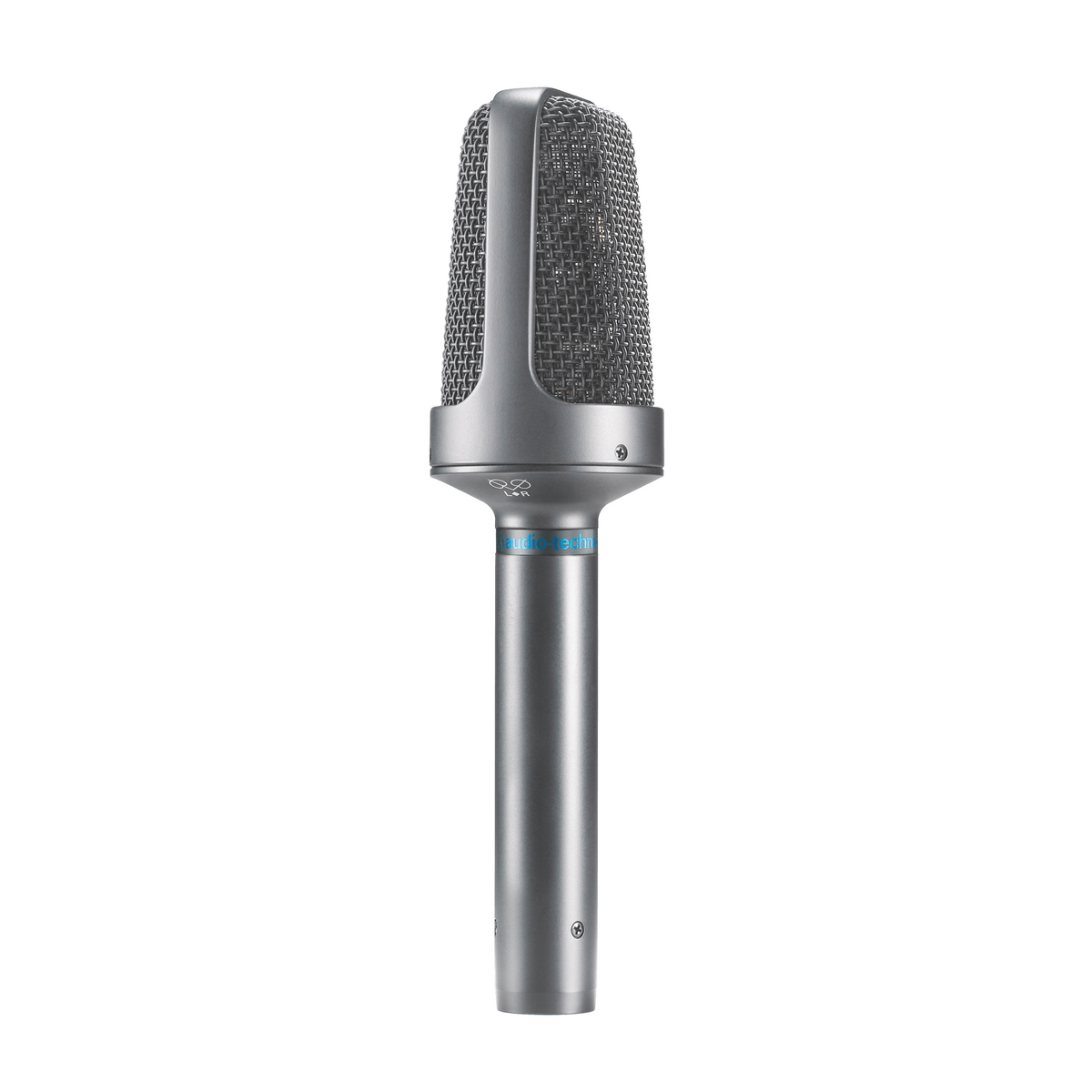

Audio-Technica AT8022 X/Y Stereo Microphone

Audio-Technica AT8022 X/Y Stereo Phantom and Battery Powered Field Microphone

Ideal for video camera-mount use, stereo field recording, interviews and home recording, Audio-Technica's versatile AT8022 stereo condenser offers a compact housing and the pristine sound quality of a live sound field. Its coincident capsule configuration produces an X/Y stereo image in a small housing. The microphone is supplied with two cables for use with either pro or consumer gear. It offers switchable low-frequency roll-off and the convenience of battery or phantom power. The microphone is fully RoHS-compliant – free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

SPECIFICATIONS

• Element: Fixed-charge back plate permanently polarized condenser
• Polar Pattern: X/Y Stereo
• Frequency Response: 20-15,000 Hz
• Low Frequency Roll Off: 80 Hz, 18 dB/octave
• Open Circuit Sensitivity: Phantom: -38 dB (12.5 mV) re 1V at 1 Pa; Battery: -38 dB (12.5 mV) re 1V at 1 Pa
• Channel Balance: <2.5 dB
• Maximum Input Sound Level: Phantom: 128 dB SPL, 1 kHz at 1% T.H.D.; Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
• Dynamic Range: Phantom: 109 dB, 1 kHz at Max SPL; Battery: 101 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 75 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 11-52V DC, 2 mA typical (each channel)
• Battery Type: 1.5V AA/UM3
• Battery Current/Life: 0.7 mA / 700 hours typical (alkaline)
• Switches: Battery On/Off; Flat, roll-off
• Weight: 247 g (8.7 oz)
• Cable: Balanced: 2.0 m (6.5') long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end; Unbalanced: 0.6 m (2.0') long stereo cable
• Dimensions: 186.0 mm (7.32") long, 47.6 mm (1.87") head diameter, 21.0 mm (0.83") maximum body diameter
• Output Connector: Integral 5-pin XLRM-type
• Accessories Included: AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; battery; soft protective pouch
• Audio-Technica Case Style: S12
