Aviom AN-16/o V.4 16-Channel Analog Output Module for Pro16 Digital Snake Network System

Simple Setup Powerful Performance - The Aviom AN-16/o V.4 16-Channel Analog Output Module for Pro16 Digital Snake Network System

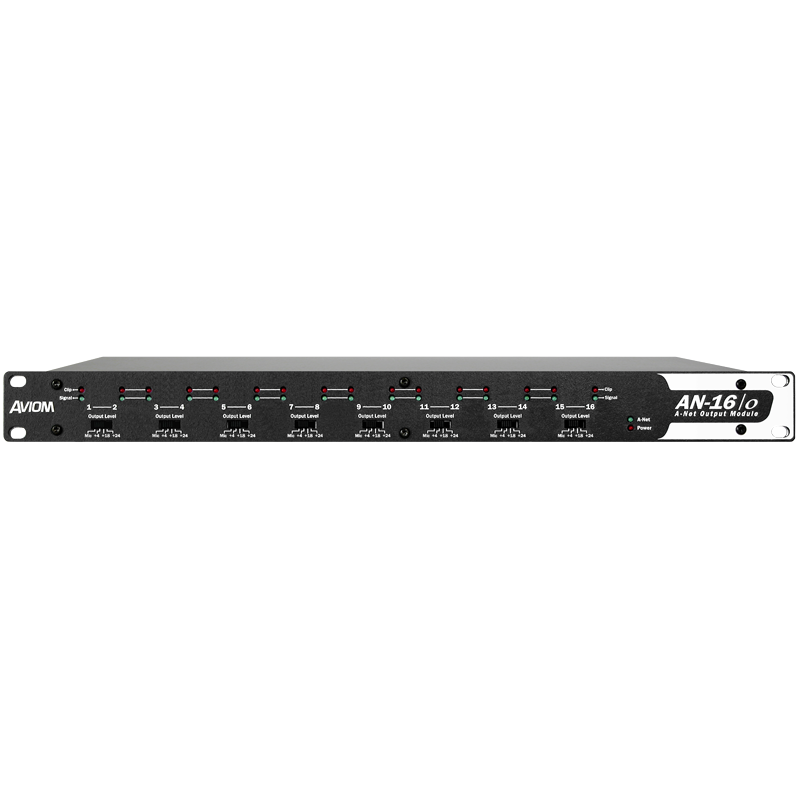

The AN-16/o v.4 Output Module connects to any Pro16 input module, console card, or A-Net distributor and provides 16 balanced line-level analog outputs using two DB25 multi-pin connectors. Four output levels, from mic to +24dBu, are available to easily accommodate the input level requirements of the device the AN-16/o v.4 output signals are being connected to.

Use the AN-16/o v.4 anywhere analog outputs are required: with the A640 and A360 and D800's Network Mix Back feature for wireless in-ears, on stage or at FOH in a digital snake, in the studio, or for a recording split. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module.

• 16 balanced mic- or line-level outputs
• Four-position output level switch per channel pair
• +24, +18, and +4dBu line-level, or mic-level outputs
• 48kHz, 24-bit D/A converters
• DB25 output connectors


SPECIFICATIONS

• Audio Outputs: 16 channels, balanced
• Outputs: DB25 multipin connectors (2); Tascam® analog audio pinout
• Impedance: Balanced output for mic, +4dBu, and +18dBu; differential output for +24dBu
• Breakout cables: Not included
• D/A Conversion: 48kHz sample rate, 24 bit
• Frequency Response: 4Hz-22kHz
• A-Net Input/Output: One EtherCon Category 5 (RJ45 connector)
• A-Net Expansion: One EtherCon Category 5 (RJ45 connector)
• Output Level Settings: Four-position switch, per channel pair; +24dBu, +18dBu, +4dBu, and Mic
• Channel LED Indicators: Signal Present and Clip, per channel
• Metering: LEDs; green: Signal Present; red: Clip; per channel
• Maximum Output Level: +24dBu
• Output Impedance: 226 ohms (+18dBu, +24dBu); 100 ohms (+4dBu and mic)
• Freq. Response: 4Hz-22kHz +0.2dB/-3dB
• THD +N: < 0.004%
• Crosstalk: -90dB
• Bit Error Rate (BER): 10(-12)
• Signal to Noise (unweighted): 92dB typical, A/D to D/A
• Measured from AN-16/i to AN-16/o v.4 Output Module
• Digital Connections: A-Net In: 1; A-Net Out: 1; A-Net Expansion: 1; Neutrik EtherCon connectors
• A-Net Pro16: A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable; uses unshielded Cat-5e UTP (or better) cable
• Latency: <0.620 msec (measured from analog input to analog output)
• Power Supply: External, DC, universal switching type
• Input Voltage: 100-240 volts, 50/60Hz, 30VA
• Output Voltage: 24 VDC, 0.5 amp
• Plug Size: 2 mm
• Power: 24 VDC, 500mA
• Dimensions: 19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high
• Weight: 6.8 lbs. (3.08 kg)
• Options: SB4 System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable
• DB25 breakout cables
