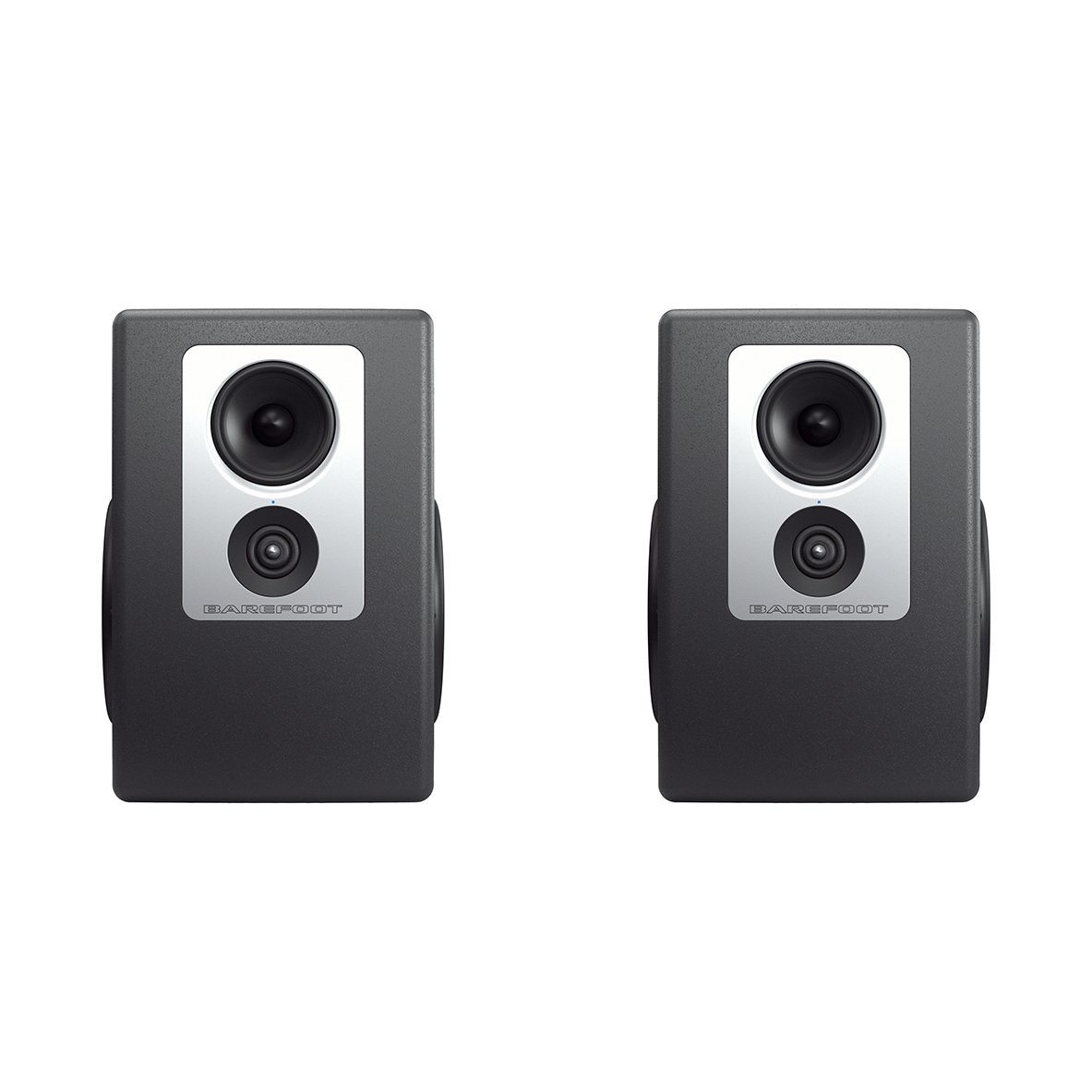

Barefoot Footprint02 Gen2 3-Way 6.5-Inch Active Studio Monitors - Pair

Get Compact Power and Uncompromised Precision with the Barefoot Footprint02 Gen2 3-Way 6.5-Inch Active Studio Monitors - Pair

The Barefoot Sound Footprint 02 Gen2 advances the acclaimed Footprint series with reengineered drivers, updated DSP, and refined cabinet acoustics to deliver stunning accuracy in smaller studio spaces. Inheriting the high-performance DNA of Barefoot’s flagship models, it offers elite translation, extended bandwidth, and impressive output in a compact, accessible form factor.

• Second-generation Footprint design with upgraded drivers, DSP, and cabinet acoustics
• Tri-amplified Class D three-way architecture for maximum headroom and low distortion
• 1-Inch dual-ring radiator tweeter, 5-Inch aluminum midrange, and dual 6.5-Inch Dual-Force™ woofers
• SPOC™ analog-filtered conversion for ~15 dB better SNR, higher resolution, and reduced latency
• Next-generation low-latency DSP for tighter bass tuning, precise imaging, and clear translation
• Sealed, stress-assembled MDF cabinet with full acoustic damping for tight, punchy low end
• MEME™ monitor emulation modes for instant real-world reference voicings
• Balanced performance for stereo, surround, and compact immersive studio builds
• Wideband response from 38 Hz to 40 kHz with crossovers at 180 Hz and 3700 Hz

Like its larger sibling, the Footprint 02 Gen2 employs a fully tri-amplified three-way system with dedicated Class D amplification for each driver. A 1-Inch dual-ring radiator tweeter, a 5-Inch aluminum-cone midrange, and dual 6.5-Inch aluminum-cone woofers with Dual-Force™ Technology work together for seamless crossover transitions, improved transient response, and low distortion. Barefoot’s patented SPOC™ (Spectrally Optimized Conversion) places analog filtering ahead of A/D, improving signal-to-noise ratio, resolution, and high-frequency transparency while keeping latency ultra low.

The sealed MDF enclosure features increased internal volume, optimized damping, and enhanced rigidity with a rugged textured-gray finish—yielding tight, clean low end without the artifacts common to ported designs. MEME™ (Multi Emphasis Monitor Emulation) Technology lets you instantly reference multiple speaker “voices” without changing your listening position, streamlining composition, editing, and critical mixing.

SPECIFICATIONS

System

• Description: 6.5-Inch Tri-Amplified 3-Way Studio Monitor
• Frequency Response: 38 Hz – 40 kHz (±3 dB), 42 Hz – 30 kHz (±1 dB)
• Bass Response: –3 dB @ 38 Hz, Q = 0.560, Slope = 18 dB/Octave Asymptotic
• Crossover Frequencies: 180 Hz / 3700 Hz
• Max Peak SPL: ≥ 111 dB

Drivers

• Tweeter: 1-Inch Ring Radiator, High-Flux Motor, Rear Waveguide Chamber
• Midrange: 5-Inch Aluminum Cone, High-Flux Motor
• Woofers: Dual 6.5-Inch Aluminum Cones, High-Flux Motors, Dual-Force™ Technology

Amplification

• High Frequency Amp: 60 W Class D
• Mid Frequency Amp: 200 W Class D
• Low Frequency Amp: 200 W Class D (Dual 6.5-Inch)

Electronics

• Input Level: Stepped Attenuator
• MEME™ Voice Select: Multiple Reference Voicings
• Input Type / Impedance: Balanced XLR, 20 k Ohm
• Sensitivity: 90 dB @ 1 Meter with –15 dBV Input (Level Control at 0 dB)

Power

• AC Power Input: 100 VAC – 240 VAC
• Power Consumption: Idle 35 W / Max 500 W

Cabinet

• Design: Sealed Box, Machined Aluminum Driver Baffle, Tensioned Bracing
• Construction: MDF with Full Acoustic Damping
• Internal Volume: 9.4 L
• Finish: Textured Gray Polyester Coating

Dimensions (W × H × D)

• 13.54 × 9.12 × 12.45 Inches (344 × 232 × 316 mm)

Weight

• Speaker Weight: 34.8 lb (15.8 kg) Each
• Shipping Weight: 44.0 lb (20 kg) Each

Shipping Dimensions

• 21.25 × 13.27 × 16.73 Inches (540 × 337 × 425 mm)
