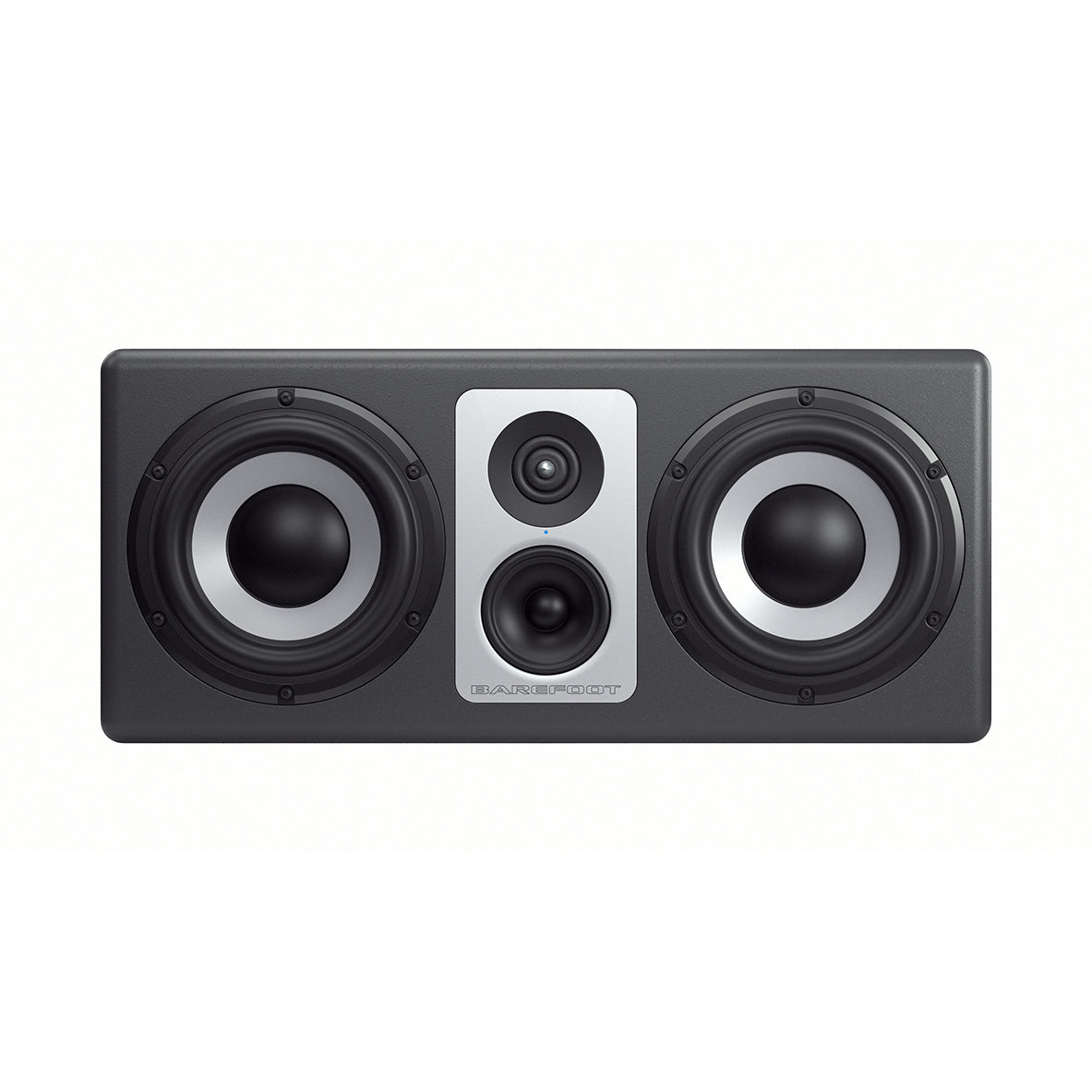

Barefoot FOOTPRINT03C Center Channel Active Monitor to Accompany the Footprint03

Designed to Complement -  The Barefoot FOOTPRINT03C Center Channel Active Monitor to Accompany the Footprint03

The Footprint03C Center Channel active monitor is designed to complement the Footprint03 right and left channel monitors, delivering unmatched precision essential for accurate mixes in surround sound and immersive environments. Built on the proven legacy of the acclaimed Footprint03 tri-amplified 3-way design, the Footprint03C ensures seamless tonal consistency when paired with the Footprint03, forming a fully integrated and cohesive monitoring system that elevates any professional setup.

• Tri-amplified 3-way Center Channel Monitor
• 260 watts of power per monitor
• Frequency Response: 42 Hz–40 kHz
• MAX SPL: Continuous 104.5dB
• Sealed box speaker design
• 6.5" aluminum cone woofers
• 3.5" aluminum cone midrange
• 1" ring radiator tweeter
• MEME™ Technology Voice Emulation
• SPOC™ Technology
• DimensionsLxWxD: 20 x 7.25 x 9-Inch


SPECIFICATIONS

• Controls: Input level stepped attenuator, MEME™ voice select
• Analog Input:
  • XLR female, Pin 1 ground, Pin 2 positive, Pin 3 negative
  • TRS Male, Tip: Positive, Ring: Negative, Sleeve: Ground
• Input Impedance: 20k Ohms
• Input Sensitivity (1m): 90 dB @ -15 dBV (pass band)
• Analog to Digital Conversion:
  • Word Length: 28-bit (56-bit High Precision)
  • Sample Rate: 96 kHz
• Signal/Noise: ≥ 100 dB
• Frequency Response: 42 Hz–40 kHz (+/-3 dB), 48 Hz–22 kHz (+/- 1 dB)
• Bass Response: -3 dB @ 42 Hz, Q = 0.707, Slope = 24 dB/octave asymptotic
• MAX SPL: Continuous 104.5 dB
• Cabinet: 10.8 liters total internal volume, solid aluminum baffle plate, polyurethane acoustic damping throughout
• Crossover Frequencies: 400 / 3900 Hz (Active crossover between drivers)
• Drivers and Amplifiers:
  • Tweeter: 1″ ring radiator, low distortion motor, rear waveguide chamber. Amplifier: 60W
  • Midrange: 3.5″ aluminum cone, Low distortion motor +/- 3.5 mm linear excursion. Amplifier: 100W
  • Woofers: 6.5″ aluminum cone with low distortion motor +/- 9.5 mm linear excursion. Amplifier: 100W
• Power:
  • Mains Voltage Input: 85 VAC to 265 VAC universal
  • Idle Power Consumption = 12W
  • Maximum Power Consumption = 340W
• Weight: Speaker: 33 lbs each (15 kg), Shipping: 40.3 lbs each (18.3 kg)
• Dimensions (HxWxD): 20″ x 7.25″ x 9″ (50.8 x 18.4 x 22.9 cm)
