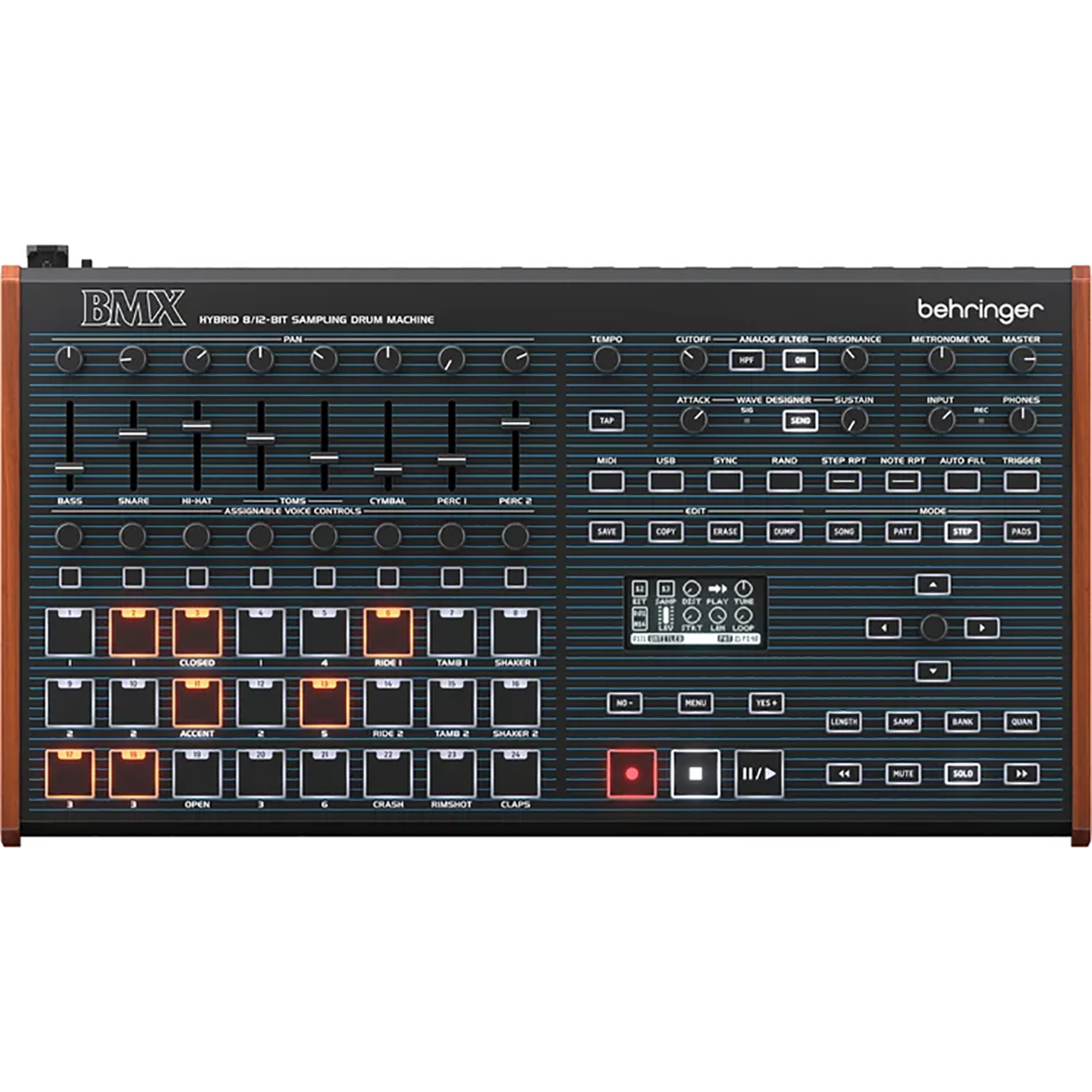

Behringer BMX Classic Hybrid Sampling Drum Machine

Build Beats with the Behringer BMX Sampling Drum Machine

The Behringer BMX Hybrid Sampling Drum Machine provides all the tools needed to become a beat boss, including 8 DACs with variable sample rate, an authentic 8/12-bit sampling sound engine, 8 drum voices, a 64-step sequencer, 117 default drum sounds, line input for live recording and storage of samples, Wave Designer and dual-mode filter – for a full-fledged drum machine that’ll shake the house.

• Amazing drum machine with authentic 8/12-bit sampling sound engine to create classic sound performance
• Line input allows for live recording and storage of samples
• Analog circuitry including original lowpass filters for unsurpassed warmth
• 8 DAC’s with variable sample rate and authentic 8/12-bit resolution
• 8-voice architecture with independent level and pan controls for each voice
• Powerful 64-step drum sequencer supports poly-meter, step-repeat, note-repeat, real-time triggering, track-mute and track-solo
• 8 independent analog outputs for external processing or recording rhythms as multi-track audio
• Integrated FX bus features Wave Designer and dual-mode Analog Filter with per voice assignment
• 24 velocity-sensitive drum pads with after touch for real-world experience
• Live recording, editing and playback of analog filter cutoff via automation
• Storage of up to 16 songs and 256 patterns, all of which can be imported/exported during playback for unlimited songs and patterns
• Pattern Mode allows arrangement of patterns into full songs and setting number of repeats per song part
• Song Mode allows chaining songs together for live sets and expanded compositions
• Unique Auto Scroll feature enables improvisation in all modes
• Comprehensive MIDI In/Out/Thru plus USB implementation for synchronization and connection to external devices
• Sync options include USB, MIDI, Clock and Internal for maximum versatility
• Encoder for editing parameters such as Tempo, Swing, Probability, Flam and Random
• High-visibility 128x64 LCD graphic display for easy editing of program parameters
• Powerful headphone and main outputs on 1/4-inch connectors

Whether new to drum programming or a seasoned pro looking to upgrade a setup, the BMX has everything needed to step up to the big leagues.

A Classic, Reawakened

The BMX was crafted with one goal in mind: unlocking new creative possibilities by reimagining one of the most iconic drum machines ever made. Blending a fresh, modern approach with the unmistakable character of the original, the BMX delivers the same punchy, authentic sound that helped shape early Hip-Hop and powered countless groundbreaking records. Its influence reached far beyond the genre too—New Order famously used it to define the sound of their 1983 classic “Blue Monday.”

Complete Control

Designed to elevate performance, the BMX packs a full suite of fresh live-focused tools across all sequencer modes — including step repeat, note repeat, real-time triggering and live step overdubs. Users can drop into record while staying in pattern mode to build song structures on the fly, then flip back to playback with a single tap. Fire up the autofill to inject instant energy and variation and keep the momentum going by cueing up the next song straight from memory without ever stopping the music. With the BMX, users can run complete sets from start to finish — no other gear required.

Powerful and Feature-Rich Sequencer

The BMX features one of the most powerful step sequencers ever created. The 64-step sequencer can store up to 192 patterns and 8 songs with a continuously variable swing allowing users to mimic a real drummer and give the beats they create a more human feel.

Wave Designer and Dual-Mode Filter

The integrated Wave Designer has individual attack and sustain controls that can be applied to individual voices to bring another dimension to patterns. Additionally, BMX’s highly flexible dual-mode filter button toggles between LPF and HPF, allowing users to experiment with the cutoff frequency and resonance controls to create out of this world drum patterns while those fluid sweeps can be recorded straight into the sequencer and further tweaked using the step editor.

Parameter Chaining

BMX’s robust encoder lets users set separate chain preferences for each of the parameters, allowing them to function globally or to switch when a song or pattern changes. Parameters include tempo, swing, flam, probability, independent track mutes/solos, FX bus assignments, filter modes and sweeps for enhanced real-time control. Patterns can be changed on-the-fly for further creative control when using the BMX as the heart of a live setup.

USB Control

To bring the BMX into the modern age, USB connectivity has been added for sync and MIDI triggering. This enables the BMX to be controlled by a DAW if desired, allowing individual sounds to be triggered.

The Numbers

The BMX has 24 knobs, 8 faders and 70 buttons, all laid out in a highly intuitive format that puts the fun back into drum pattern creation. Input and output connections include phones, stereo audio outputs, MIDI In, Out and Thru over USB and 5 pin MIDI ports, and 8 independent analog outputs for external processing or recording rhythms as multitrack audio. With its 3 trigger outs, the BMX lets users control external synths and hardware sequencers to create songs without a digital audio workstation in sight. The BMX can also send and receive clock information with highly accurate timing to sync it to the outside world.

SPECIFICATIONS

General

• Product Type: Hybrid sampling drum machine
• Sound Engine: 8/12-bit sampling sound engine
• Polyphony: 8 voices
• Default Drum Sounds: 117
• Sequencer: 64-step
• Drum Pads: 24 velocity-sensitive drum pads with aftertouch
• Knobs: 24
• Faders: 8
• Buttons: 70
• Display: 128 x 64 LCD graphic display

Sampling and Sound Design

• DACs: 8 DACs with variable sample rate
• Line Input: For live recording and storage of samples
• Effects: Analog low-pass/dual-mode filters, Wave Designer
• Wave Designer Controls: Individual attack and sustain controls
• Filter Modes: LPF and HPF
• Automation: Live recording, editing and playback of analog filter cutoff

Sequencer and Performance

• Sequencer Length: 64 steps
• Sequencer Features: Poly-meter, step-repeat, note-repeat, real-time triggering, track-mute and track-solo
• Pattern Storage: Up to 256 patterns
• Song Storage: Up to 16 songs
• Pattern Mode: Arrange patterns into full songs and set number of repeats per song part
• Song Mode: Chain songs together for live sets and expanded compositions
• Auto Scroll: Included
• Encoder Parameters: Tempo, swing, probability, flam and random

Connections

• Input Connectors: 3.5 mm TRS, 1/4-inch TRS
• Output Connectors: 3.5 mm TRS, 1/4-inch TRS
• Analog Outputs: 8 independent analog outputs
• Trigger Outputs: 3
• MIDI Connections: In, out, thru, USB
• Sync Options: USB, MIDI, Clock and Internal
• Headphone Output: Included
• Main Outputs: 1/4-inch connectors
