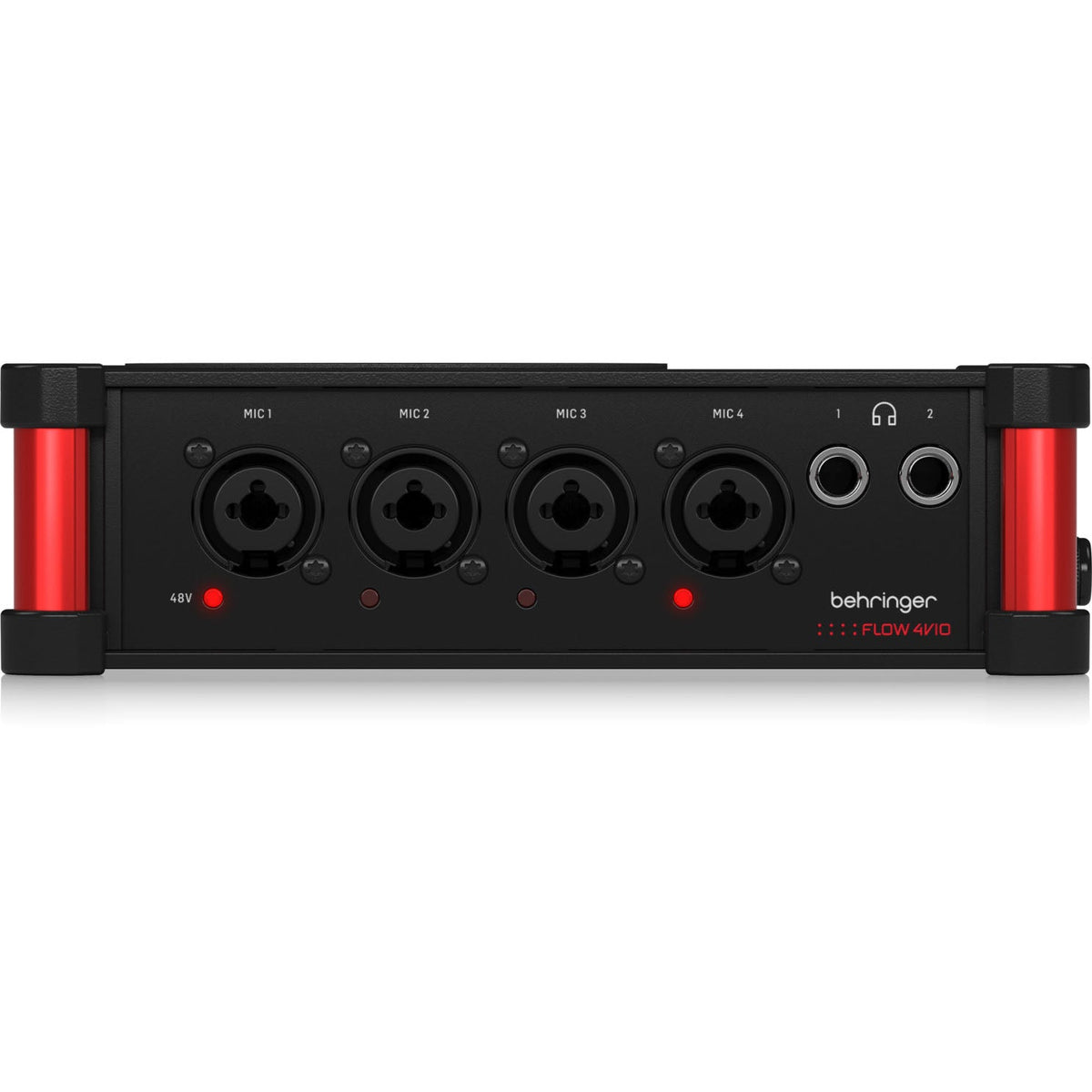

Behringer FLOW 4VIO StageConnect I/O Extender for Flow 4V Mixer with did4 x Preamps

Get Expanded I/O with the Behringer FLOW 4VIO StageConnect I/O Extender for Flow 4V Mixer with did4 x Preamps

The Behringer FLOW 4VIO is a StageConnect I/O extender for FLOW 4V mixers that adds four microphone preamps, two headphone outputs, 32-bit float recording support, and USB audio/MIDI connectivity. Built for flexible production and remote expansion, it delivers additional input and monitoring capability in a compact form factor designed for video, field, and portable audio workflows.

• I/O extension for FLOW 4V mixers
• Provides 4 additional microphone preamps with dual-stage A/D converters
• 2 headphone outputs with separate level controls
• Class-compliant USB audio/MIDI interface
• StageConnect multi-channel audio transmission with sub-millisecond latency
• 24-bit uncompressed PCM at 44.1 kHz and 48 kHz over standard XLR cable
• Can connect the FLOW 4VIO or other I/O devices through StageConnect
• Able to power a connected FLOW 4V remotely via a single XLR cable
• Can also function as a class-compliant 4 x 4 USB audio interface
• Remote power available from a Behringer WING StageConnect port
• Powered via USB-C with power adapter included, or via XLR StageConnect from compatible devices
• Integrated 1/4-20 thread and screw mount for cameras and tripods
• Integrated Allen wrench

Designed to extend the capabilities of the FLOW 4V system, the FLOW 4VIO makes it easier to add more microphone inputs and monitoring options without complicating setup. Its compact footprint, remote powering options, and class-compliant USB connectivity make it a practical tool for creators and engineers who need portable expansion with professional performance.

Add More Inputs to a FLOW 4V Setup

The FLOW 4VIO expands a FLOW 4V mixer with four additional microphone preamps using dual-stage A/D converters for excellent dynamic range. This makes it easier to capture more sources while maintaining clean audio performance across a mobile or fixed production setup.

Monitor with Greater Flexibility

Two headphone outputs with separate level controls allow users to monitor audio more conveniently during production. This added flexibility is especially useful for field recording, collaborative setups, and content creation workflows that require multiple listening points.

Connect Through StageConnect or USB

StageConnect enables multi-channel audio transmission at sub-millisecond latency using standard XLR cable, supporting 24-bit uncompressed PCM at 44.1 kHz or 48 kHz. The FLOW 4VIO can also operate as a class-compliant 4 x 4 USB audio and MIDI interface for direct computer integration.

Built for Portable Production

Powered via USB-C or compatible XLR StageConnect connections, the FLOW 4VIO is ready for flexible deployment in portable rigs. Its integrated 1/4-20 mount and included mounting screw make it easy to attach to cameras and tripods for streamlined recording and production setups.

SPECIFICATIONS

General Specs

• Frequency Range (±1 dB): 5 Hz - 22 kHz
• Dynamic Range (Inputs): 140 dB, 142 dB A-weighted

Mic Inputs

• Type: 4 x XLR / 1/4-inch TRS combo jacks, balanced
• EIN (20 Hz to 20 kHz): -130 dBu, -132 dBu A-weighted
• Distortion (THD + N): 0.007% @ -40 dBu in
• Distortion (THD + N): 0.003% @ -20 dBu in
• Crosstalk Rejection @ 1 kHz, Adjacent Channels: -110 dB
• Max Input Level: XLR +18 dBu
• Impedance: XLR 9.5 kOhm balanced
• Max Gain: +70 dB
• Phantom Power: +48 V, switchable

Phones Outputs

• Type: 2 x 1/4-inch TRS jack, stereo
• Max Output Level (30 Ohm Load): 72 mW
• Distortion (THD + N, 30 Ohm Load): 0.005%

USB Audio Interface

• Type: USB 2.0
• Connector: USB Type-C
• Sample Rate: 48 kHz
• Bit Depth: 24-bit / 32-bit float
• Channels at Host: 4 in / 4 out

Power Supply / Voltage

• Connector: USB-C
• Power Supply: USB-C PD
• Power Consumption: 8 W

Dimensions and Weight

• Dimensions (H x W x D): 53 mm x 184 mm x 128 mm
• Weight: 750 g
