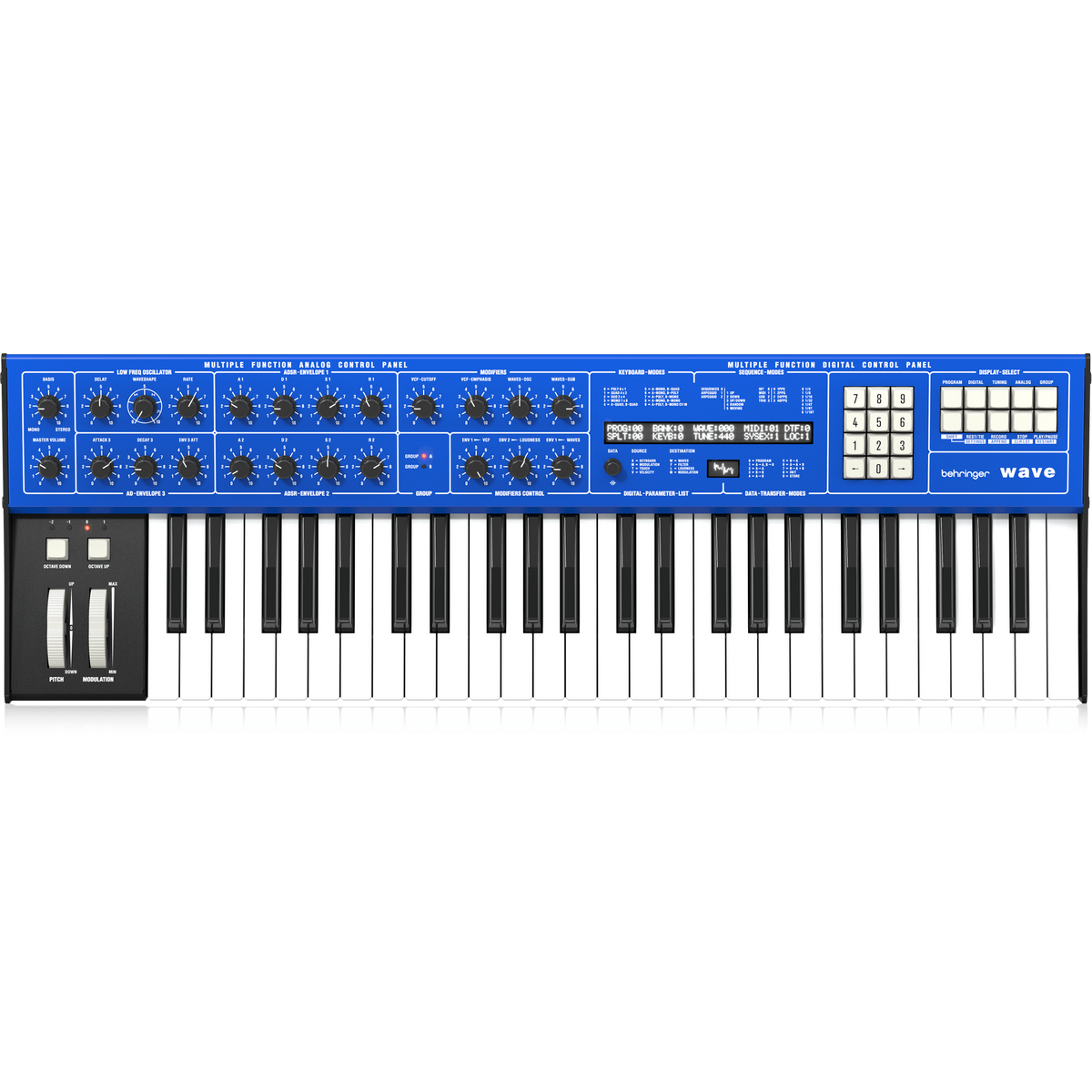

Behringer Wave 0722-ABD 8-Voice Multi-Timbral Hybrid Synthesizer

Ride Classic Wavetable Sound with the Behringer WAVE 8-Voice Multi-Timbral Hybrid Synthesizer

The Behringer WAVE brings classic 8- and 16-bit wavetable synthesis into a modern hybrid synthesizer built for expressive performance, deep sound design, and vintage-inspired tone. With 8 configurable voices, 16 wavetable oscillators, an analog VCF and VCA, a 49-key semi-weighted keyboard, sequencer, arpeggiator, and extensive connectivity, WAVE is designed for creating lush pads, basses, bells, chimes, evolving textures, and unmistakable 80s-inspired sounds.

• 8-voice multi-timbral hybrid synthesizer
• Classic 8- or 16-bit resolution wavetable synthesis
• 16 wavetable oscillators
• Analog VCF and VCA
• 24 dB lowpass filter
• 49 semi-weighted, full-size keys with velocity and aftertouch
• Built-in polyphonic sequencer
• Dual arpeggiator with up, down, up-down, and random modes
• USB 2.0 MIDI and 5-pin DIN MIDI in/out/thru
• 2-line, 40-digit LCD display and secondary OLED display

Flexible, Vibrant, Vintage Sounds

WAVE is designed for creating lush pads, basses, and bell- or chime-like sounds with 8 highly configurable voices and classic wavetables featuring 64 waves each. An additional 64 fixed sub-oscillator waveforms add depth, while 2 ADSR envelopes allow users to shape wavetable behavior with precision. A dedicated sub-oscillator position control adds extra nuance, and additional user wavetables and transients can be imported through the SynthTribe app for macOS and Windows.

Enhanced Expression

WAVE’s 49 full-size keys offer a strong balance of expressiveness and playability. Velocity sensitivity and aftertouch allow players to shape and modulate sounds based on how hard or soft they play, making the instrument responsive for both performance and studio production.

Sequencing and Arpeggiator Tools

A built-in polyphonic sequencer and dual arpeggiator provide flexible pattern creation and performance control. The arpeggiator supports up, down, up-down, and random modes for building rhythmic ideas, melodic movement, and evolving musical patterns.

Hybrid Sound Design for Modern Setups

With wavetable oscillators, analog filtering, analog amplification, MIDI, USB, CV, gate, sync, pedal connections, individual channel outputs, and onboard displays, WAVE is built to integrate into modern studios, hardware rigs, and performance setups.

SPECIFICATIONS

General

• Product Type: Hybrid synthesizer
• Type: Hybrid
• Number of Voices: 8
• Oscillator Type: Wavetable
• Number of Oscillators: 16
• Filter: 24 dB lowpass
• Keyboard: 49 semi-weighted, full-size keys with velocity and aftertouch
• Wheels: Pitch and modulation

MIDI and USB

• USB MIDI: USB 2.0, type B
• MIDI In/Out/Thru: 5-pin DIN / 16 channels
• USB Type: Class-compliant USB 2.0, type B
• Supported Operating Systems: Windows 7 or higher, Mac OS X 10.10 or higher

Audio Connections

• Main Output: 2 x 6.35 mm / 1/4-inch TS, unbalanced, max +22 dBu
• Main Output Impedance: 50 ohms
• Channel Out: 8 x 6.35 mm / 1/4-inch TS, unbalanced, max +22 dBu
• Headphones: 1/4-inch TRS, stereo, max 25 mW
• Headphone Impedance: 8 ohms

Control Connections

• Sync In: 6.35 mm / 1/4-inch TRS
• Sync Out: 6.35 mm / 1/4-inch TRS
• CV In: 6.35 mm / 1/4-inch TS
• Gate In: 6.35 mm / 1/4-inch TS
• Expression Pedal: 6.35 mm / 1/4-inch TRS, voltage send on tip
• Sustain Pedal: 6.35 mm / 1/4-inch TS

Controls

• Octave Controls: Octave down / up
• Main Controls: Basis mono to stereo, master volume
• LFO Controls: Delay, waveshape, triangle, sawtooth, ramp, square, rate
• Envelope Controls: Attack, decay, sustain, release
• Filter and Wave Controls: VCF cutoff, VCF emphasis, waves, osc waves, sub
• Envelope 3 Controls: Attack 3, decay 3, env 3 att
• Modulation Controls: ENV 1 VCF, ENV 2 loudness, ENV 1 waves

Buttons and Displays

• Buttons: Program, digital, tuning, analog, group shift, rest/tie, record, stop, play/pause
• Numeric Keypad: 0-9, cursor left, cursor right
• Digital Encoder: Data entry encoder, press to enter
• Main Display: 2-line, 40-digit LCD display
• Secondary Display: 2.5 x 1.5 cm OLED
• LED: Group A / B
• Octave LED: -2, -1, 0, 1

Power

• Mains Connector: Standard IEC C13 receptacle
• Power Consumption: 20 W max
• Power Supply: Internal switch-mode PSU
• Voltage Range: Autorange 100-240 V, 50/60 Hz

Operating Conditions

• Standard Operating Temperature Range: 5°C - 45°C / 41°F - 113°F

Dimensions

• Dimensions: 112 x 796 x 257 mm / 4.41 x 31.34 x 10.12 inches

Weight

• Weight: 7.26 kg / 16.0 lb
