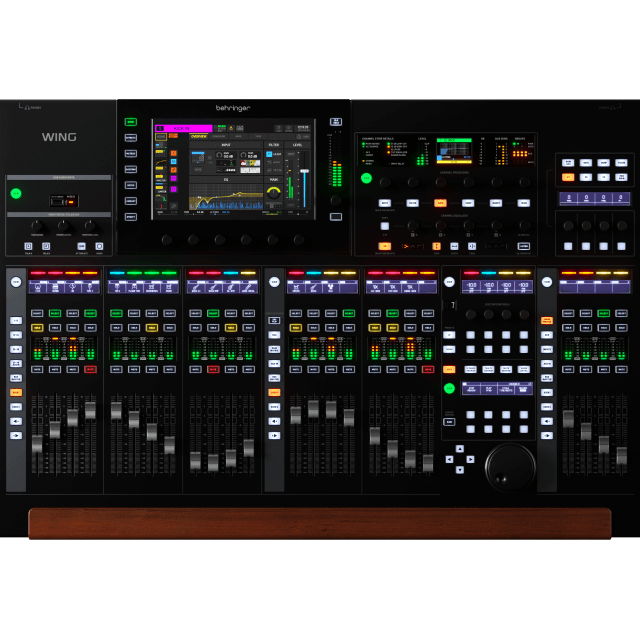

Behringer WING 48-channel Digital Mixer - Black

Enjoy World-Class Effects - The Behringer WING 48-channel Digital Mixer - Black

The Behringer WING supplies you with all the hands-on control you need. It all starts with 24 motorized 100mm faders. These ultra-smooth faders make this digital console an absolute joy to mix on. Its central section includes a bevy of user-assignable controls, including four touch-sensitive rotary encoders and 20 buttons with two LCD screens. Apply whatever functions you’d like to have within reach, and they’ll always be at your fingertips. Make fine adjustments of up to eight user parameters with the WING’s adjustable swivel, or use it for DAW remote control via USB MIDI. The WING’s configuration also includes pre-defined functionality for USB and SD card recorder transport, show control, and mute groups.

• 8 Midas PRO mic preamps and outputs provide industry-reference sound quality
• 24 motorized 100 mm faders in 3 separate, fully configurable sections
• 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
• 10.1 inch main display with multi-touch screen and adjustable swivel
• Custom Controls offering 16 configurable buttons, 4 rotary controls and one large control wheel for smooth, personalized workflow
• Integrated USB Audio/MIDI Interface for 48 audio channels in and out
• Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
• Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
• 16 True-stereo effects processing engines, with 80+ world-class algorithms
• 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
• 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
• 40 Stereo Input Channels with 5 variable plug-in processing slots each
• 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
• 8 Mute Groups and 8 DCA's for track grouping and consolidation
• 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
• Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI …
• StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
• 4 channel GPIO for controlling almost anything with WING
• 5-Pin MIDI in and out for control and synchronization with external devices
• DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
• Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
• Touch-sensitive channel editing section with 11 rotary controls and dedicated color TFT for unique channel identification

SPECIFICATIONS

• Type:Digital Mixer
• Channels:48 Stereo (40 x channel, 8 x aux)
• Inputs - Mic Preamps:8 x XLR-1/4" combo (mic/line)
• Phantom Power:Yes
• Outputs - Main:8 x XLR
• Inputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Outputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Send/Return I/O:8 x 1/4" TRS (aux in), 8 x 1/4" TRS (aux out)
• Busses/Groups:8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
• Inserts:Dual Inserts per Bus, FX Insert Slot
• MIDI I/O:In/Out
• Data I/O:2 x Ethernet (control/audio network)
• Headphones:2 x 1/4"
• USB:1 x Type B, 1 x Type A
• Computer Connectivity:USB 2.0, 24-bit/48kHz (48 x 48)
• Remote:1 x 1/4" (GPIO 1-2), 1 x 1/4" (GPIO 3-4)
• I/O Expansion Slots:1 x Expansion Port (24-bit/48kHz)
• Faders:24 x 100mm Motorized
• A/D Resolution:Up to 24-bit/192kHz
• EQ Bands:6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
• Effects:8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
• Signal Processing:Full Dynamics Processing
• DAW Control:Yes (HUI, Mackie)
• Screen:10" Capacitive Touchscreen, Adjustable Swivel
• Storage:2 x SD Card Slot (dual 32 track max)
• Power Source:Standard IEC AC cable
• Height:7.9"
• Depth:22.6"
• Width:34.3"
• Weight:52.8 lbs.
• Manufacturer Part Number:000-BV202-00010
