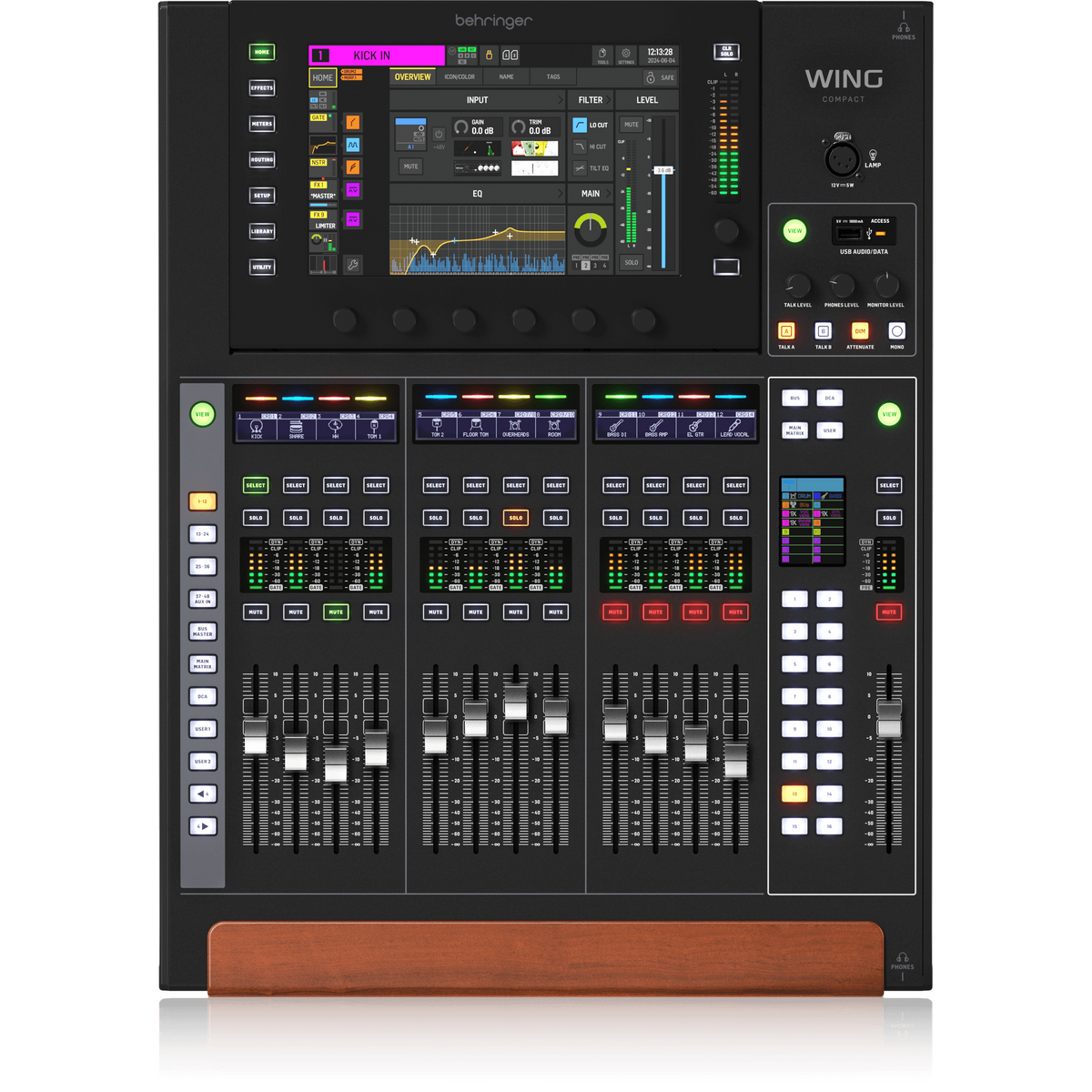

Behringer Wing Compact 48-Channel, 28-Bus Full Stereo Digital Mixing Console

Change the Game Completely - The Behringer Wing Compact 48-Channel 28-Bus Full Stereo Digital Mixing Console

WING COMPACT features a console surface optimized for fast and accurate operation, excelling specifically in monitor mixing applications. Its dedicated master and bus section, with 4 layers of 16 hotkeys clearly labeled on its own color display, is breaking new ground in terms of speed and overview. The large touch screen with rotary controls for intuitive parameter adjustments offers the same innovative user interface that the full-size WING console is famous for.

• 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
• 13 motorized 100 mm faders with powerful master fader section - and 20 Custom buttons
• 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
• 10.1 inch main display with multi-touch screen and adjustable swivel
• Unique “Sends on Fader”-Workflow with dedicated color TFT-Display and dedicated hot-keys to 44 Masters - Buses, Mains, Matrices, DCA's
• Integrated USB Audio/MIDI Interface for 48 audio channels in and out
• Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
• Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
• 16 True-stereo effects processing engines, with 80+ world-class algorithms
• 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
• 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
• 40 Stereo Input Channels with 5 variable plug-in processing slots each
• 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
• 8 Mute Groups and 8 DCA's for track grouping and consolidation
• 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
• Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI …
• StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
• 2 channel GPIO for controlling almost anything with WING
• 5-Pin MIDI in and out for control and synchronization with external devices
• DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
• Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
• 19" rack-mountable in 3 positions

SPECIFICATIONS

• Type:Digital Mixer
• Channels:48 Stereo
• Inputs - Mic Preamps:24 x XLR-1/4" combo (mic/line)
• Phantom Power:Yes
• Outputs - Main:8 x XLR
• Inputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Outputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Send/Return I/O:8 x 1/4" TRS (aux in), 8 x 1/4" TRS (aux out)
• Busses/Groups:8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
• Inserts:Dual Inserts per Bus, FX Insert Slot
• MIDI I/O:In/Out
• Data I/O:2 x Ethernet (control/audio network)
• Headphones:2 x 1/4"
• USB:1 x Type B, 1 x Type A
• Computer Connectivity:USB 2.0, 24-bit/48kHz (48 x 48)
• Remote:1 x 1/4" (GPIO)
• I/O Expansion Slots:1 x Expansion Port (24-bit/48kHz)
• Faders:12 x 100mm Motorized
• A/D Resolution:Up to 24-bit/192kHz
• EQ Bands:6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
• Effects:8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
• Signal Processing:Full Dynamics Processing
• DAW Control:Yes (HUI, Mackie)
• Screen:10" Capacitive Touchscreen, Adjustable Swivel
• Storage:2 x SD Card Slot (dual 32 track max)
• Power Source:Standard IEC AC cable
• Manufacturer Part Number:0603-AEV86-US1
