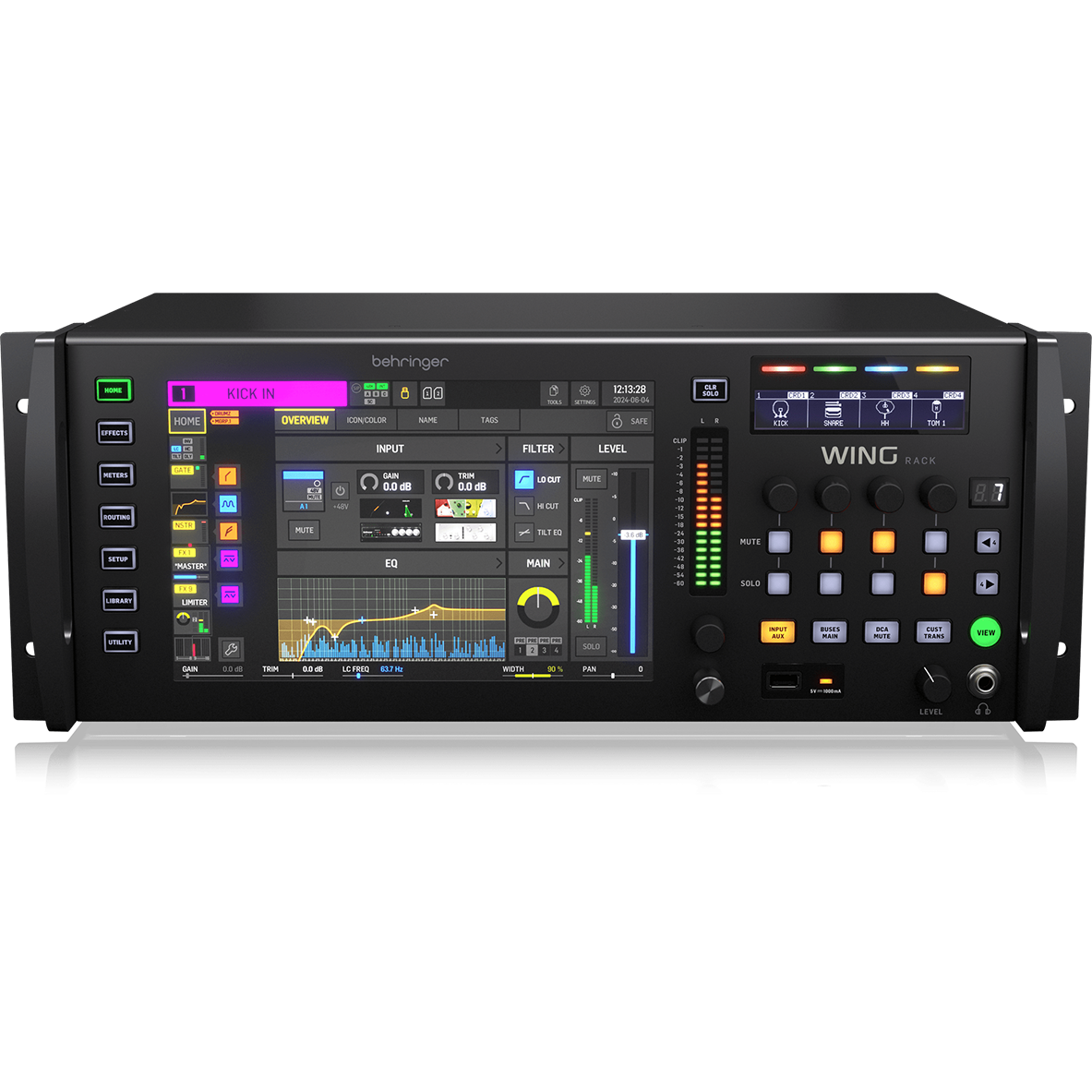

Behringer WING Rack 48-channel Digital Mixer

Behringer WING Rack 48-channel Digital Mixer

The WING LIVE card comes pre-installed and allows you to record up to 64 channels simultaneously to 2 linked SD cards, or take a pre-recorded session and do a virtual soundcheck in the venue. You can also use one 32-track SD recorder for playback and the second one for recording the performance. Swap Out External Cards with Ease

• 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
• Continuously adjustable front panel for comfortable mixing experience when mounted in a rack
• 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
• 10.1 inch main display with multi-touch screen and adjustable swivel
• 8 buttons and 4 encoders for standard mixing or transport functions, or with Custom Controls to make WING RACK your personal console.
• Integrated USB Audio/MIDI Interface for 48 audio channels in and out
• Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
• Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
• 16 True-stereo effects processing engines, with 80+ world-class algorithms
• 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
• 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
• 40 Stereo Input Channels with 5 variable plug-in processing slots each
• 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
• 8 Mute Groups and 8 DCA's for track grouping and consolidation
• 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
• Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI…
• StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
• 4 additional phones outputs with hi-performance headphone amplifiers for IEM applications
• 4 channel GPIO for controlling almost anything with WING
• 5-Pin MIDI in and out for control and synchronization with external devices
• DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
• Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
• 19" rack-mountable with 4HU form-factor

SPECIFICATIONS

• Type:Digital Mixer
• Channels:48 Stereo
• Inputs - Mic Preamps:24 x XLR-1/4" combo (mic/line)
• Phantom Power:Yes
• Inputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Outputs - Digital:1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Outputs - Main:8 x XLR
• Send/Return I/O:8 x 1/4" TRS (aux in), 8 x 1/4" TRS (aux out)
• Inserts:Dual Inserts per Bus, FX Insert Slot
• Busses/Groups:8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
• Data I/O:2 x Ethernet (control/audio network)
• USB:1 x Type B, 1 x Type A
• Computer Connectivity:USB 2.0, 24-bit/48kHz (48 x 48)
• MIDI I/O:In/Out
• I/O Expansion Slots:1 x Expansion Port (24-bit/48kHz)
• Headphones:4 x 1/4"
• EQ Bands:6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
• Effects:8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
• Signal Processing:Full Dynamics Processing
• DAW Control:Yes (HUI, Mackie)
• Screen:10" Capacitive Touchscreen
• Rackmountable:Yes, 4HU
