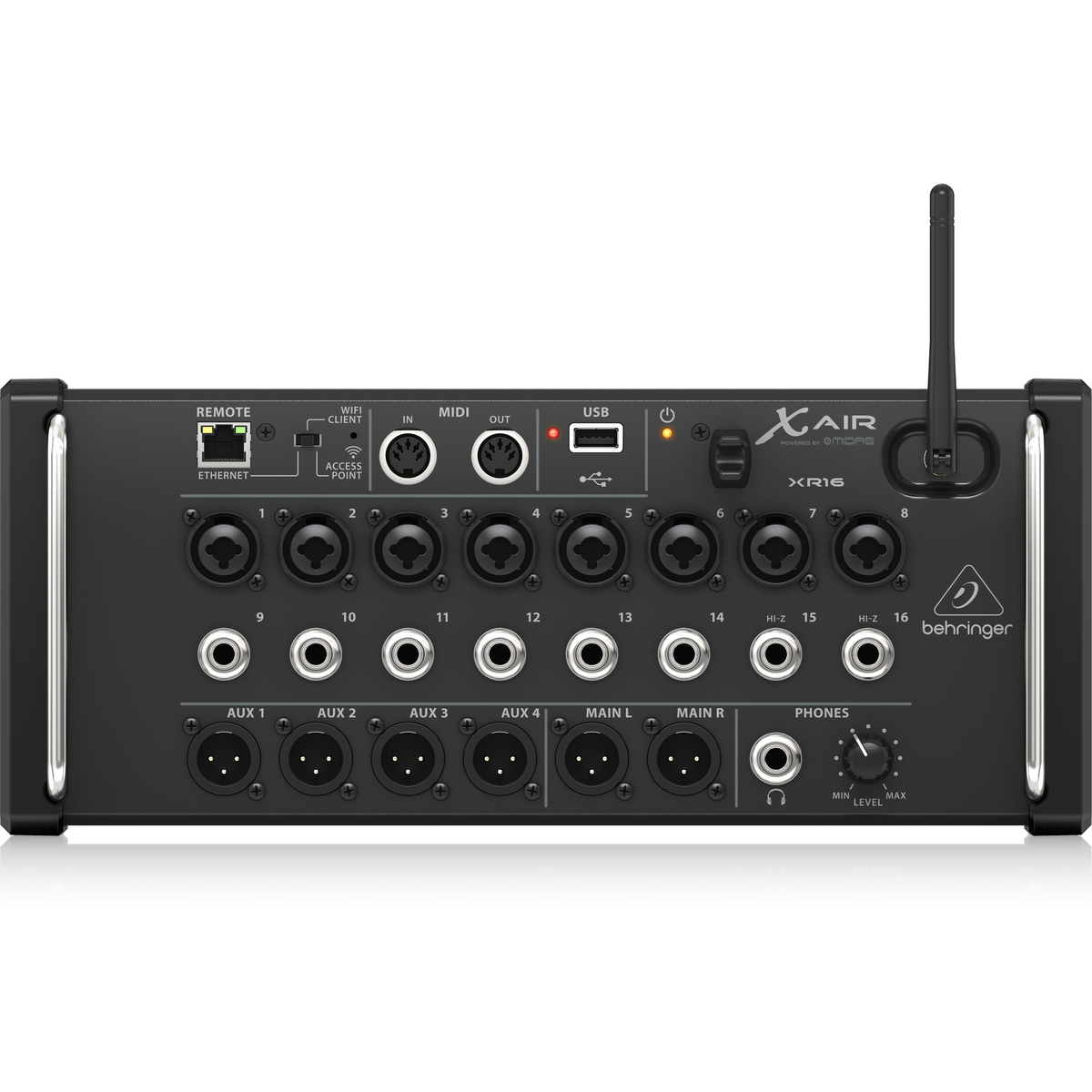

Behringer XR16 X Air Rack-Mounted Digital Mixer

Mix Anywhere with the Behringer X Air XR16 16-Input Digital Mixer with WiFi and USB Recording

The Behringer X Air XR16 is a portable, rack-mountable digital mixer that puts the power of flagship mixing technology into a compact format. Featuring 16 inputs, 8 award-winning Midas-designed preamps, integrated WiFi for wireless control, and USB recording, the XR16 is perfect for both live sound and studio applications. With built-in X32 effects, auto-mixing, and real-time analysis, the XR16 gives you professional tools to shape your sound with precision – all from your tablet, computer, or smartphone.

• iPad/Android tablet controlled 16-input digital mixer for studio and live use
• 8 Midas-designed, fully programmable mic preamps for audiophile sound
• Built-in tri-mode WiFi router for direct operation without external routers
• Dugan-style auto-mixing automatically manages microphone gain sharing
• USB connector for uncompressed stereo WAV recording and playback
• X32 effects rack with 4 stereo FX slots including Lexicon, EMT250, Quantec, and more
• 100-band real-time analyzer (RTA) for all channel and bus EQs
• Rack ears and bumpers included for flexible installation
• 6 aux buses and main LR with inserts, dynamics processing, and parametric/graphic EQ
• 4 XLR aux outputs, 2 XLR main outputs, and headphone connector
• 40-bit floating-point DSP with near-zero latency
• Remote control via free iOS, Android, PC, Mac, and Linux apps
• MIDI In/Out for external control, including Mackie Control protocol
• Future firmware updates and new FX plug-ins available free of charge
• Internal switch-mode power supply for noise-free audio and low consumption

Midas – The Legend in Sound Quality

Featuring 8 fully programmable Midas-designed mic preamps, the XR16 delivers studio-grade sound quality trusted by touring professionals worldwide. These preamps provide exceptional clarity, warmth, and dynamic range in both live and studio environments.

Built-In Tri-Mode WiFi Router

With an integrated tri-mode WiFi router, the XR16 lets you mix wirelessly without external networking gear. Connect up to 4 clients directly in Access Point mode, join an existing WiFi network, or connect via LAN for extended range and reliability.

Revolutionary Auto-Mixing

X Air Gain Sharing technology, inspired by Dan Dugan’s automix system, manages levels across up to 8 microphones in real time. It reduces feedback, noise, and comb filtering for clear, professional mixes in discussions, panels, and live sound.

Professional X32 Effects Engines

The XR16 includes the same effects engines as the legendary X32 console, providing four stereo FX slots with studio-grade reverbs, compressors, EQs, modulation effects, and more – all running with near-zero latency.

100-Band Real Time Analyzer

Visualize and fine-tune your mix with a built-in 100-band RTA for every channel and bus EQ. Whether used on the 31-band graphic or 6-band parametric EQ, the RTA provides detailed frequency analysis at a glance.

Stunning Performance and Value

The XR16 combines Midas mic preamps, Klark Teknik signal processing, and Behringer innovation into an affordable, powerful solution. Compact, flexible, and packed with pro features, it delivers outstanding performance at an unbeatable value.

SPECIFICATIONS

Processing

• Channels: 16 inputs, 1 stereo USB return, 4 stereo FX returns, 6 aux buses, main LR
• Signal Processing: 40-bit floating point
• Effects: 4 true stereo engines
• Conversion: 24-bit @ 44.1/48 kHz, 114 dB dynamic range
• Latency: 0.8 ms (analog I/O)

Inputs and Outputs

• Mic Preamps: 8 Midas-designed XLR/TRS combo
• Line Inputs: 8 TRS balanced
• Main Outputs: 2 XLR balanced
• Aux Outputs: 4 XLR balanced
• Headphones: 1 TRS
• MIDI: In/Out (DIN)
• Ethernet: 1 RJ45
• USB: Type A

Performance

• Frequency Response: 10 Hz – 22 kHz
• Dynamic Range: 105 dB (mic in to out)
• THD + Noise: <0.005%
• Phantom Power: 48 V, switchable per input
• Maximum Input Level: +23 dBu (XLR), +21 dBu (TRS)
• Output Level: +16 dBu max
• Headphones Output: +35 dBm (stereo)

Wireless

• Antenna: External SMA, 50 Ω
• Standard: IEEE 802.11 b/g (2.4 GHz)
• Modes: Access Point (max 4 clients), WiFi Client, LAN
• Output Power: 19 dBm (802.11b), 18 dBm (802.11g)

Power and Physical

• Power Supply: Switch-mode, 100–240 V (50/60 Hz)
• Consumption: 30 W
• Dimensions: 333 x 149 x 140 mm (13.1 x 5.9 x 5.5 in)
• Weight: 3.0 kg (6.6 lbs)
