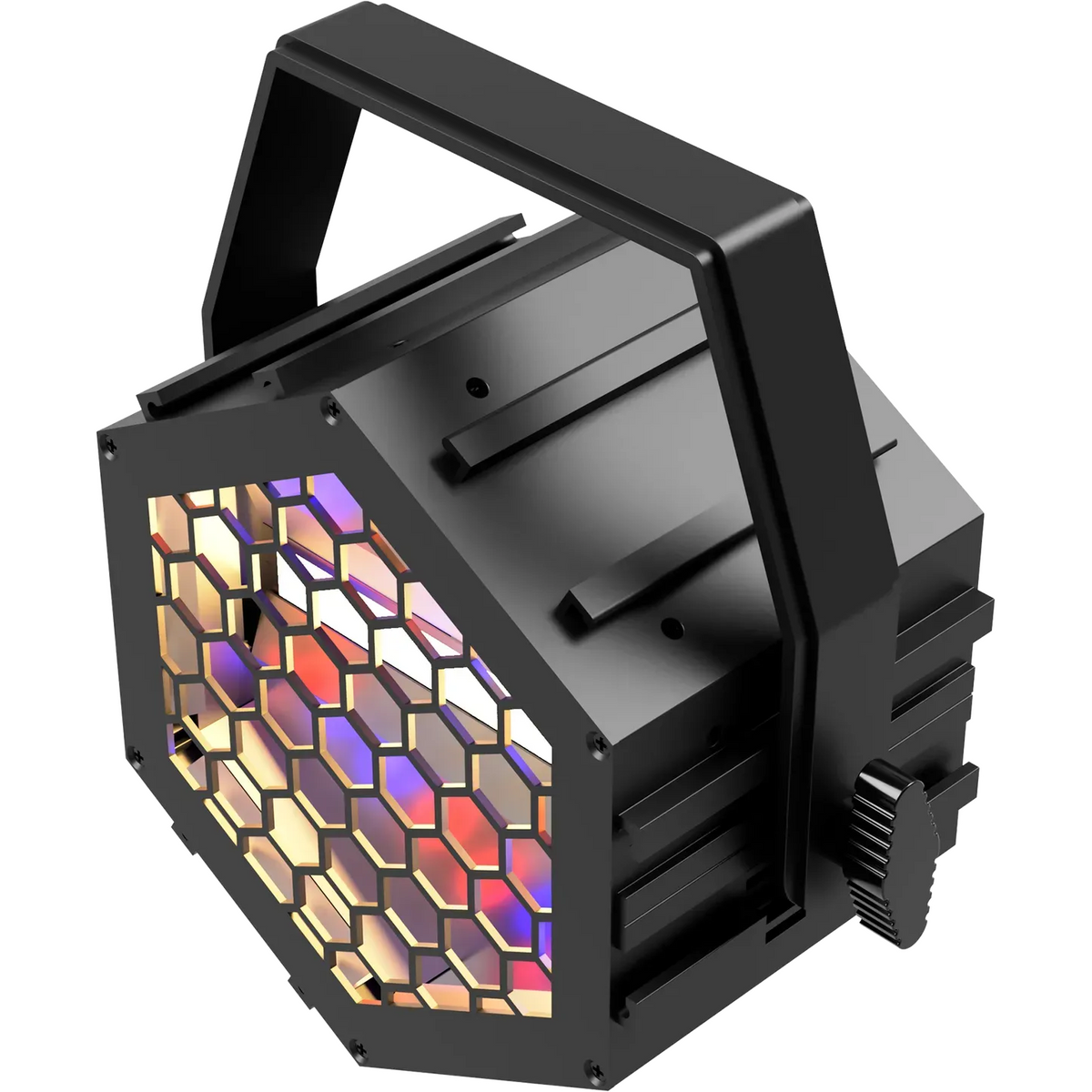

Blizzard Nexys Flux Retro WW Strobe

Create Vintage Punch and Color Contrast with the Blizzard Nexys Flux Retro WW Strobe

The Nexys Flux is a modular LED fixture that combines a vintage warm white strobe and blinder effect with RGB LED backlight effects for bold, eye-catching visuals. Designed as part of the Nexys Series, it features a unique interlocking housing that allows users to build fixture arrays horizontally, vertically, or diagonally for more creative stage and event designs.

• Vintage warm white strobe and blinder with RGB LED backlight effects
• Unique interlocking housing for horizontal, vertical, or diagonal arrays
• Part of a 3-fixture modular Nexys Series system
• Interlocks with Nexys RGBW and Nexys WW fixtures
• 1 x 80W warm white 2000K LED
• 24 x SMD 5050 RGB 0.5W LEDs for backlight
• 6 individually controllable RGB pixel ring groups
• Smooth 0 to 100 percent dimming
• Warm white strobe plus RGB LED backlight effects
• Built-in programs and manual color mixing
• 5-pin DMX in and out
• powerCON TRUE1-compatible power in and out
• Reflective aluminum inner housing
• 2 mounting brackets plus 1 quarter-turn fastening Omega bracket
• Heavy-duty aluminum enclosure
• Backed by a 2-year extendable warranty

Built for users who want both strong retro-style output and contrasting color effects, the Nexys Flux delivers flexible performance in a modular form. Its warm white center source creates a vintage-style blinder look, while the RGB backlight adds movement and color for more layered visual design.

Build modular arrays in multiple directions

The Nexys Flux is one of three modular fixtures in the Nexys Series and is designed with an interlocking housing that allows multiple fixtures to connect horizontally, vertically, or diagonally. This makes it easier to create custom visual arrays for stages, production sets, and event spaces.

Get vintage blinder looks with RGB contrast

This fixture uses an 80W 2000K warm white LED to create a retro-inspired strobe and blinder effect with a wide 120-degree beam. Around it, 24 RGB LEDs arranged in six controllable ring groups add contrasting backlight effects for more dynamic looks.

Control color, dimming, and effects with ease

The Nexys Flux offers smooth dimming, strobe effects, built-in programs, and individual control of its six inner pixel ring groups. Users can access functions through DMX, master/slave, or auto mode, and the onboard 4-button LCD menu helps simplify setup and adjustment.

Designed for professional mounting and integration

For easier rigging and setup, the fixture includes dual mounting brackets and an Omega bracket with quick-lock quarter-turn fasteners. Along with 5-pin DMX and powerCON TRUE1-compatible in and out connections, the Nexys Flux is built for efficient integration into professional lighting systems.

SPECIFICATIONS

Optical

• Light Source: 1 x 80W warm white 2000K LED
• Backlight LEDs: 24 x SMD 5050 RGB 0.5W LEDs
• Pixel Grouping: 6 x 4 LED sections
• Beam Angle: 120 degrees
• Output: 213 lux at 2.5 m
• Output: 56 lux at 5 m

Control

• Protocol: USITT DMX-512
• DMX Connections: 5-pin DMX in and out
• DMX Channel Modes: 4, 8, 20
• Display: 4-button menu with LCD display
• Operating Modes: DMX512, master/slave, auto mode

Power and Current

• Power Input: 100-250VAC, 50-60 Hz
• Power Consumption: 83W
• Current Draw: 1.1A
• Power Factor: 0.63
• Power Connections: powerCON TRUE1-compatible in and out

Construction

• Housing: Interlocking heavy-duty aluminum enclosure
• Inner Housing: Reflective aluminum
• Mounting: 2 mounting brackets and 1 Omega bracket with quick-lock quarter-turn fasteners

Dimensions and Weight

• Dimensions: 17.9-inch x 4.9-inch x 6.8-inch
• Weight: 5.6 lb

In the Box

• Nexys Flux fixture
• Dual mounting brackets
• Omega bracket with quick-lock quarter-turn fasteners

Manufacturer: Blizzard Lighting
Model: NEXYS FLUX
SKU: I760596-N-3-WHXC
UPC: 685450876445
