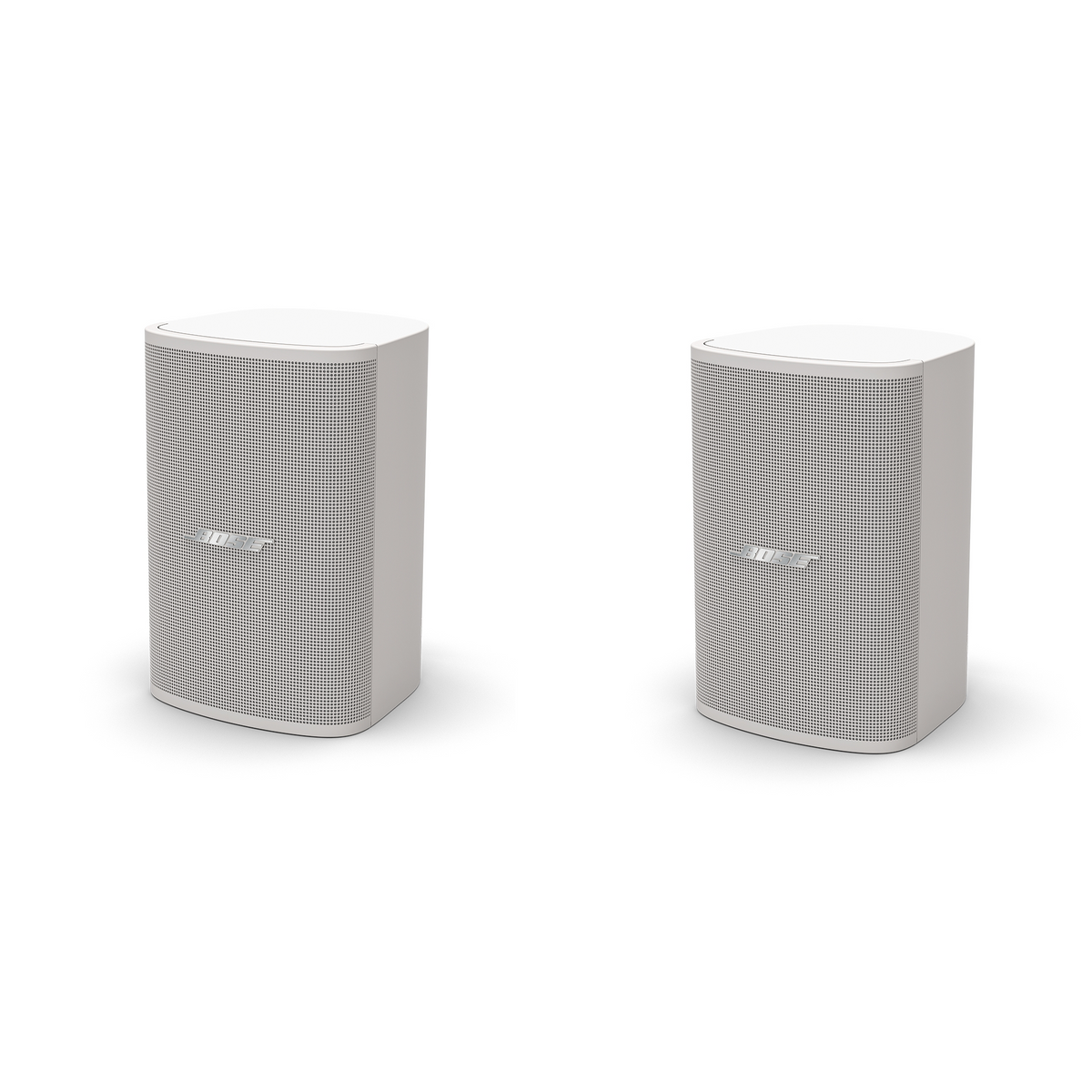

Bose Professional DesignMax DM3SE 3.5-Inch Surface-Mount Loudspeaker - White

Bose Professional DesignMax DM3SE 3.5" Surface-Mount Loudspeaker

The Bose Professional DesignMax DM3SE is a 30-watt, surface-mount loudspeaker that delivers clear, intelligible highs and surprising low-end for its compact size. Featuring a coaxial two-way design with a 3.5" woofer and 0.75" tweeter inside the Dispersion Alignment system, the DM3SE provides smooth, consistent coverage across a wide listening area. With its IP55 outdoor rating, QuickHold mounting system, and clean, modern aesthetics, it’s an ideal choice for commercial background and foreground music in both indoor and outdoor installations.

• 30-watt coaxial two-way loudspeaker with 3.5" woofer and 0.75" dome tweeter
• Delivers clear highs and surprisingly deep low-end for its size, no DSP or EQ required
• Dispersion Alignment system ensures consistent coverage across the listening area
• IP55-rated design with aluminum grille for reliable outdoor use
• Surface-mount enclosure locks onto a hidden QuickHold U-bracket for fast, secure installation
• Elegant, minimum-bezel grille with rotatable/removable logo blends with any décor
• Compatible with Bose Professional DSPs and amplifiers for optimized EQ and SmartBass processing
• Euroblock connectors and industry-standard accessories simplify integration into commercial systems

Applications

The DesignMax DM3SE is designed for a wide range of commercial sound applications where clarity, coverage, and aesthetics are critical. Typical uses include performing arts venues, houses of worship, conference centers, retail stores, restaurants and bars, and hospitality spaces. Indoors or outdoors, the DM3SE integrates cleanly into architectural environments while providing high-quality background and foreground music.

Specifications

• Power Handling (Continuous): 30 W
• Power Handling (Peak): 120 W
• Frequency Range (-10 dB): 75 Hz – 20,000 Hz
• Sensitivity (SPL/1 W @ 1 m): 86 dB
• Calculated Maximum SPL @ 1 m: 101 dB
• Nominal Impedance: 8 Ω (transformer bypass)
• Crossover: 1.7 kHz, passive 2-way
• Driver Protection: Recommended high-pass protection at 80 Hz with 24 dB/octave filter
• High-Frequency Driver: 1 × 0.75" (20 mm)

Manufacturer: BOSE
Model: 829712-0220
SKU: I634801-N-2-WHXE
UPC: 017817803717
