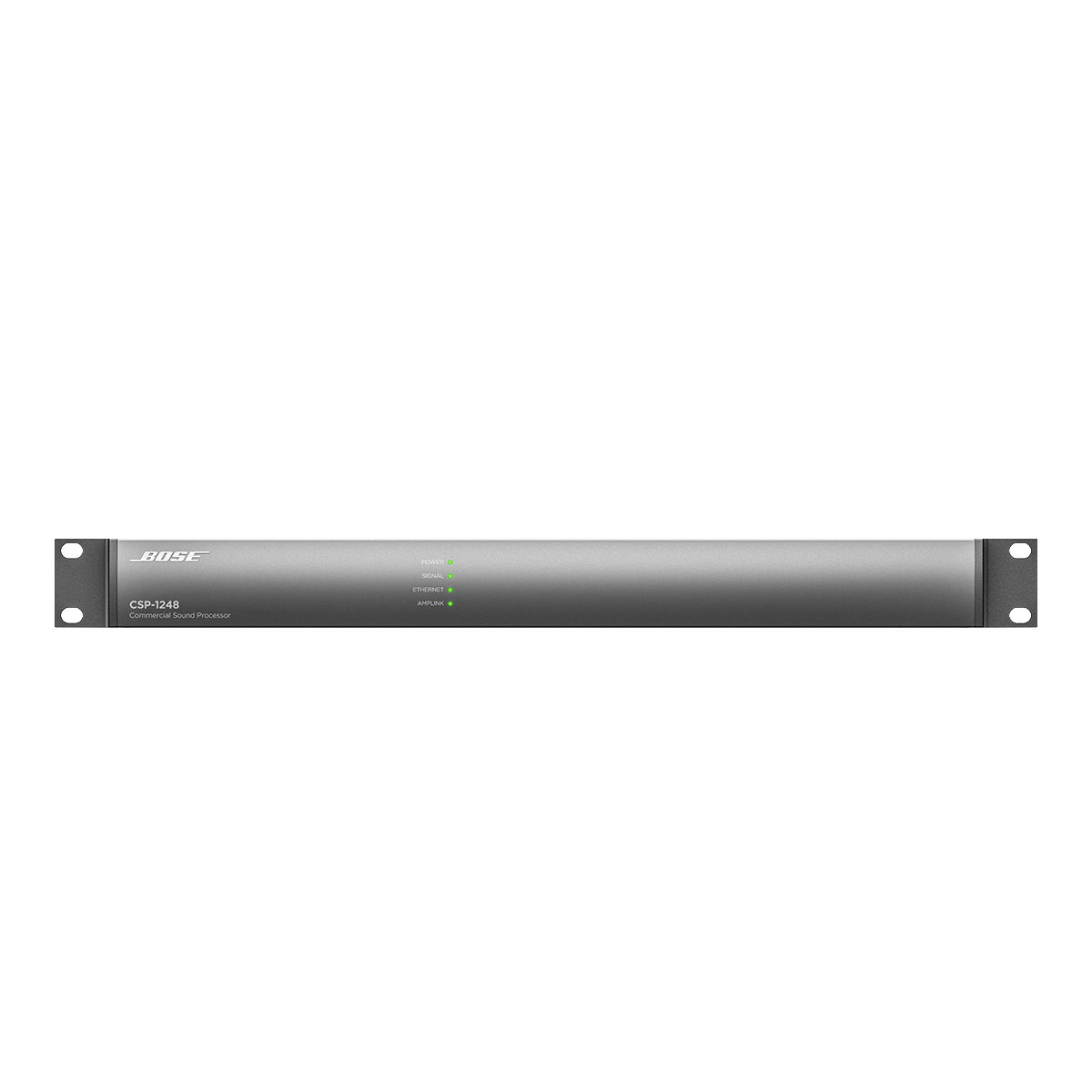

Bose CSP-1248 Commercial Sound Processor

Intuitive Control - The Bose CSP-1248 Commercial Sound Processor

Bose Professional Commercial Sound Processors (CSP) are integral to a complete sound system that includes loudspeakers, amplifiers, controls, and software, allowing installers to deploy premium sound systems efficiently. They feature an onboard CSP configuration utility and an intuitive browser-based user interface, streamlining the setup process. Real-time displays of levels, routing, thresholds, and priorities eliminate guesswork, allowing for faster system configuration, reduced installation time, and improved setup accuracy.

• Right-sized connectivity for cost-effective commercial installation
• CSP configuration utility with browser-based UI facilitates real-time display and control of levels, routing, thresholds, priorities, scheduled events, Bose Professional loudspeaker EQs, plus input and area EQs
• Opti-Voice paging provides a smooth transition between music and announcements
• SmartBass processing expands performance and response at any listening level
• AmpLink output for simplified digital audio connection to compatible power amplifiers, reducing terminations, and related points of failure

SPECIFICATIONS

• Channel Separation (Crosstalk): < -105 dB at +4 dBu, 1 kHz input signal
• Dynamic Range: > 115 dB, A-weighted, 20 Hz – 20 kHz, analog through
• Frequency Response: 20 Hz – 20 kHz (+0.3 dB/-0.5 dB)
• THD+N: < 0.01% at +4 dBu (A-weighted, 20 Hz – 20 kHz)
• Channels: 12 (4 unbalanced, summed-mono + 8 balanced, mic/line)
• Connectors: (4) RCA stereo pairs, (7) 3-pin Euroblock, (1) 4-pin Euroblock
• Equivalent Input Noise: < -119 dBu at 64 dB gain (150 Ω input, 22 Hz – 20 kHz)
• Gain Settings: -70 dBu, -60 dBu, -50 dBu, 0 dBu, +4 dBu, -10 dBV, with selectable phantom power
• Input Impedance: 12 kΩ at 1 kHz, with or without phantom power
• Maximum Input Level: +24 dBu at 0 dB gain (20 Hz – 20 kHz, THD+N < 0.3%)
• Channels: 8 AmpLink out
• Connectors: (1) RJ-45 AmpLink out
• Type: AmpLink (output)
• Channels: 4 balanced, line
• Connectors: (4) 3-pin Euroblock
• Maximum Output Level: +24 dBu (22 Hz – 20 kHz, THD+N < 0.3%)
• Output Impedance: 66 Ω
• Colors: Black
• Cooling System: Active, side-venting with fan
• Mounting/Rigging Provisions: Standard rack ears
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Product Dimensions: 1.7 in × 19.0 in × 8.5 in (44 mm × 483 mm × 215 mm)
• Rack Spaces: 1RU
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
