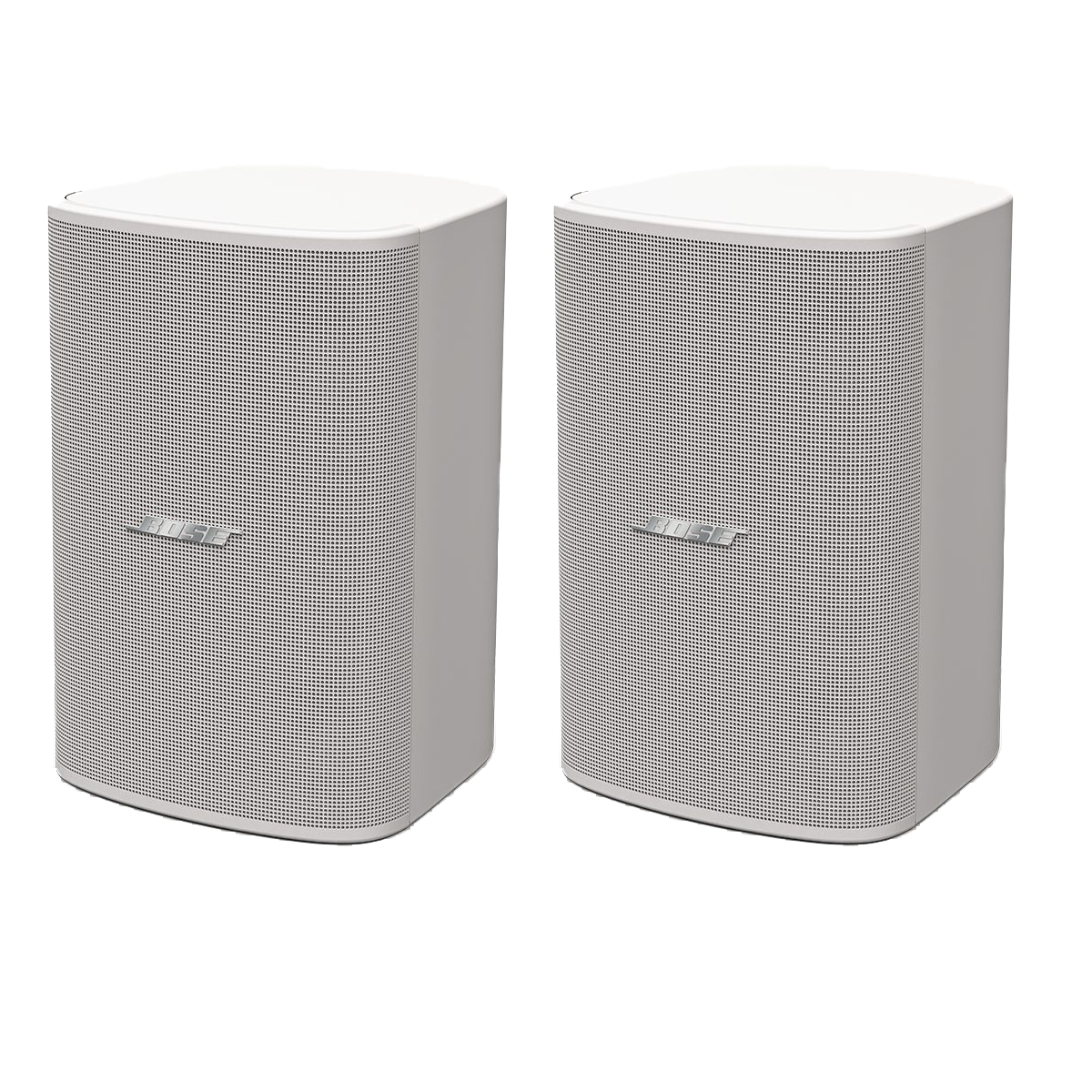

Bose DesignMax DM5SE Passive Surface Mount 2-Way Coaxial Loudspeakers

Rich Lows and Clear Intelligible Highs - The Bose DesignMax DM5SE Passive Surface Mount 2-Way Coaxial Loudspeakers - White

With coaxial two-way drivers, the 60-watt Bose Professional DesignMax DM5SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM5SE features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch low-profile models to 8-inch high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required; for even better sound, use select Bose Professional DSPs and amplifiers for EQ and SmartBass processing
• Ensure a consistent listening experience with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
• Blend with any room design with elegant form factor, minimum-bezel grilles in black or white, and removable logos
• Reduce installation time with the patented QuickHold mounting system, reducing strain, hassle, and the chance of product damage
• Install easily with industry-standard accessories; all models include Euroblock connectors and outdoor-rated options
• Install DM5SE outdoors — IP55 rating with standard aluminum grille for weather resistance

SPECIFICATIONS

Compliance

• Safety Agency Ratings: UL 1480A, NFPA 70, CE-compliant

Physical

• Colors: Black (RAL 9005), white (similar to RAL 9003), paintable
• Enclosure Material: Engineered plastics, highly UV fade-resistant
• Environmental: Outdoor per IEC 529 IP55, includes aluminum grille and weather-resistant input cover
• Grille: Perforated aluminum, powder-coated finish, tamper-resistant, paintable
• Ingress Protection: IP55
• Logo: Rotatable, removable
• Operating Temperature Range: -25 °C to 70 °C (-13 °F to 158 °F)
• Product Dimensions (H×W×D): 11.2 in × 7.5 in × 7.7 in (286 mm × 192 mm × 197 mm), loudspeaker / 11.2 in × 7.5 in × 8.4 in (286 mm × 192 mm × 215 mm), with bracket
• Net Weight: 9.7 lb (4.4 kg), loudspeaker with grille (single)
• Shipping Weight: 25.2 lb (11.4 kg), pair

Performance

• Frequency Range (-10 dB): 65 Hz – 20,000 Hz
• Coverage: 135° conical (horizontal and vertical)
• Calculated Maximum SPL @ 1 m: 107 dB
• Nominal Impedance: 8 Ω (transformer bypass)
• Power Handling (continuous): 60 W
• Power Handling (peak): 240 W
• Recommended Signal Processing: Not required, Bose Professional EQ and SmartBass available
• Sensitivity (SPL/1 W at 1 m): 89 dB
• Transformer Taps, 100V: 6, 12, 25, 50 W, bypass
• Transformer Taps, 70V: 3 W, 6 W, 12 W, 25 W, 50 W, bypass

Transducers

• Crossover: 1.8 kHz, passive 2-way crossover
• Driver Protection: Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter
• High-Frequency: 1 × 1 in (25 mm) neodymium dome tweeter, coaxially mounted
• Low-Frequency: 1 × 5.25 in (133 mm) woofer

Manufacturer: BOSE
Model: DM5SE WHITE
SKU: I634806-N-14-WHXX
UPC: 017817803939
