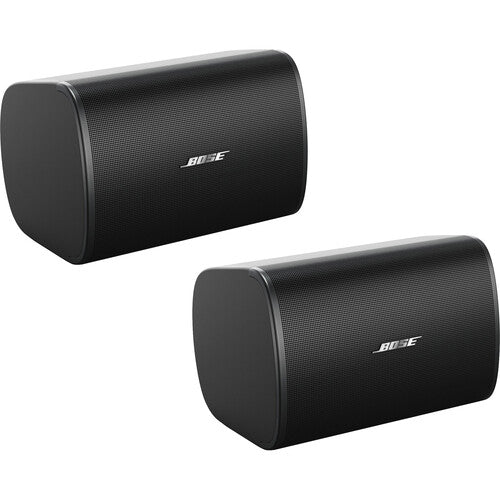

Bose DesignMax DM6SE Passive Surface Mount 2-Way Coaxial Loudspeakers Pair - Black

Deliver Premium Sound Indoors or Outdoors with the Bose Professional DesignMax DM6SE Passive Surface Mount 2-Way Coaxial Loudspeakers Pair - Black

The Bose Professional DesignMax DM6SE loudspeakers deliver rich, detailed sound and elegant aesthetics for professional installations. With a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within Bose’s Dispersion Alignment system, the DM6SE offers a balanced frequency range of 59 Hz – 20 kHz, ensuring crystal-clear highs and full, smooth lows. Built for performance and reliability, the DM6SE is surface-mounted, IP55-rated for outdoor use, and designed for fast, secure installation with the QuickHold U-bracket mounting system.

• Coaxial two-way driver design delivers clear, intelligible highs and rich lows — no DSP or EQ required
• 6.5-inch woofer and 1.25-inch coaxial tweeter with Dispersion Alignment system for consistent coverage
• IP55-rated for outdoor use with weather-resistant aluminum grille and input cover
• QuickHold mounting system reduces installation time, strain, and risk of damage
• Elegant, minimal-bezel grilles available in black or white with removable logos for a clean appearance
• Compatible with Bose Professional DSPs and amplifiers for optimized EQ and SmartBass processing
• Paintable enclosure and grille for seamless architectural integration
• Designed for a wide range of indoor and outdoor applications

From performing arts venues and houses of worship to restaurants, retail spaces, and conference centers, the DM6SE blends high-performance audio with refined design. Whether indoors or outdoors, it ensures reliable sound reproduction and a professional look that complements any environment.

SPECIFICATIONS

Performance

• Frequency Range (-10 dB): 59 Hz – 20 kHz
• Coverage: 125° conical (horizontal and vertical)
• Calculated Maximum SPL @ 1 m: 111 dB
• Nominal Impedance: 8 Ω (transformer bypass)
• Power Handling (Continuous / Peak): 125 W / 500 W
• Sensitivity (SPL / 1 W @ 1 m): 90 dB
• Recommended Processing: Bose Professional EQ and SmartBass available (not required)
• Transformer Taps (100V): 5, 10, 20, 40, 80 W, bypass
• Transformer Taps (70V): 2.5, 5, 10, 20, 40, 80 W, bypass

Transducers

• Low-Frequency Driver: 1 × 6.5 in (165 mm) weather-treated woofer
• High-Frequency Driver: 1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted
• Crossover: 1.7 kHz, passive 2-way
• Driver Protection: Recommended high-pass protection at 60 Hz (24 dB/octave filter)

Physical

• Colors: Black (RAL 9005), White (similar to RAL 9003), Paintable
• Enclosure Material: Engineered plastics, UV fade-resistant
• Grille: Perforated aluminum, powder-coated, tamper-resistant, paintable
• Ingress Protection: IP55 (outdoor-rated per IEC 529)
• Operating Temperature Range: -25 °C to 70 °C (-13 °F to 158 °F)
• Logo: Rotatable and removable
• Product Dimensions (H × W × D): 13.4 × 8.7 × 9.0 in (340 × 222 × 229 mm)
• Dimensions with Bracket (H × W × D): 13.4 × 8.7 × 9.7 in (340 × 222 × 245 mm)
• Net Weight (per speaker): 13.1 lb (5.9 kg)
• Shipping Weight (pair): 32.5 lb (14.7 kg)

Compliance

• Safety Ratings: UL 1480A, NFPA 70, CE-Compliant

Applications

• Performing Arts Venues
• Places of Worship
• Conference Centers
• Retail Stores
• Restaurants and Bars
• Hospitality Venues

Manufacturer: BOSE
Model: 829682-0120
SKU: I808773-N-4-WHXE
UPC: 017817855068
