BOSE EM-90 Commercial and Ceiling Speakers

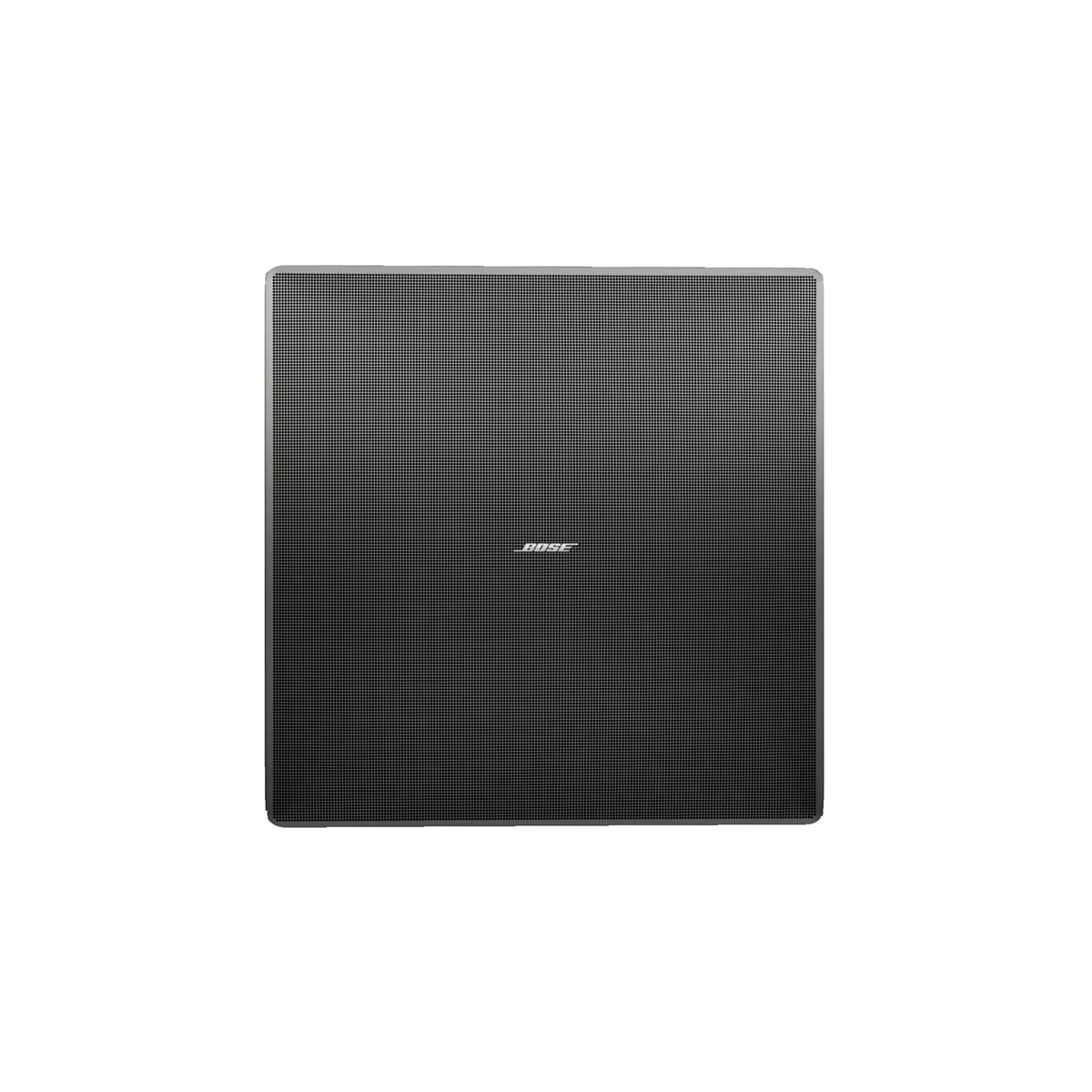

Bose Professional EdgeMax EM90 In-Ceiling Loudspeaker

The Bose Professional EdgeMax EM90 combines the output and coverage of large surface-mount loudspeakers with a discreet in-ceiling design. Featuring patented PhaseGuide technology, this 2-way system delivers powerful, focused sound from the room’s edges toward the center, providing uniform coverage and exceptional voice intelligibility across the entire listening area. Ideal for large, high-SPL spaces such as fitness clubs, performance venues, and houses of worship, the EM90 offers immersive full-frequency sound for both music and speech—even at high volumes.

Its 75° vertical and 90° horizontal coverage pattern makes it perfect for mounting near edges or corners, while the QuickHold spring-loaded mounting system ensures fast and secure installation. The magnetically attached grille allows easy access to wiring and tap settings, and the unit meets UL1480A and UL2043 safety standards for plenum-space installation.

• Patented PhaseGuide technology for even, consistent coverage
• High-frequency compression driver and high-excursion woofer for exceptional clarity
• In-ceiling installation with minimal visual impact
• Optimized for wall-boundary loading to enhance bass performance
• 2-way passive crossover with bypassable 70/100V transformer
• Consistent voicing across the EdgeMax family
• QuickHold spring-loaded mounting for easy installation
• Magnetically attached grille—paintable to match décor
• UL1480A and UL2043 compliant for plenum use

SPECIFICATIONS

• Frequency Range (-10 dB): 45 Hz – 20,000 Hz
• Coverage: 90° horizontal, 75° vertical
• Maximum SPL @ 1 m: 117 dB continuous / 123 dB peak
• Nominal Impedance: 8 Ω (transformer bypassed)
• Power Handling: 125 W continuous / 500 W peak
• Sensitivity: 96 dB SPL (1 W @ 1 m)
• Transformer Taps (100V): 5, 10, 20, 40, 80 W, bypass
• Transformer Taps (70V): 2.5, 5, 10, 20, 40, 80 W, bypass
• Transducers: 1 × 8 in (203 mm) LF woofer; 1 × compression driver with 1.3 in (33 mm) voice coil
• Crossover: 1 kHz, passive 2-way
• Dimensions (H × W × D): 13.4 × 13.4 × 9.8 in (339 × 339 × 249 mm)
• Ceiling Cutout: 13.6 × 13.6 × 9.3 in (345 × 345 × 236 mm)
• Weight: 22.2 lb (10.1 kg)
• Enclosure Material: Engineered plastic with integrated steel backcan
• Grille: Microperforated steel, powder-coated, paintable
• Color: White (RAL 9003), paintable
