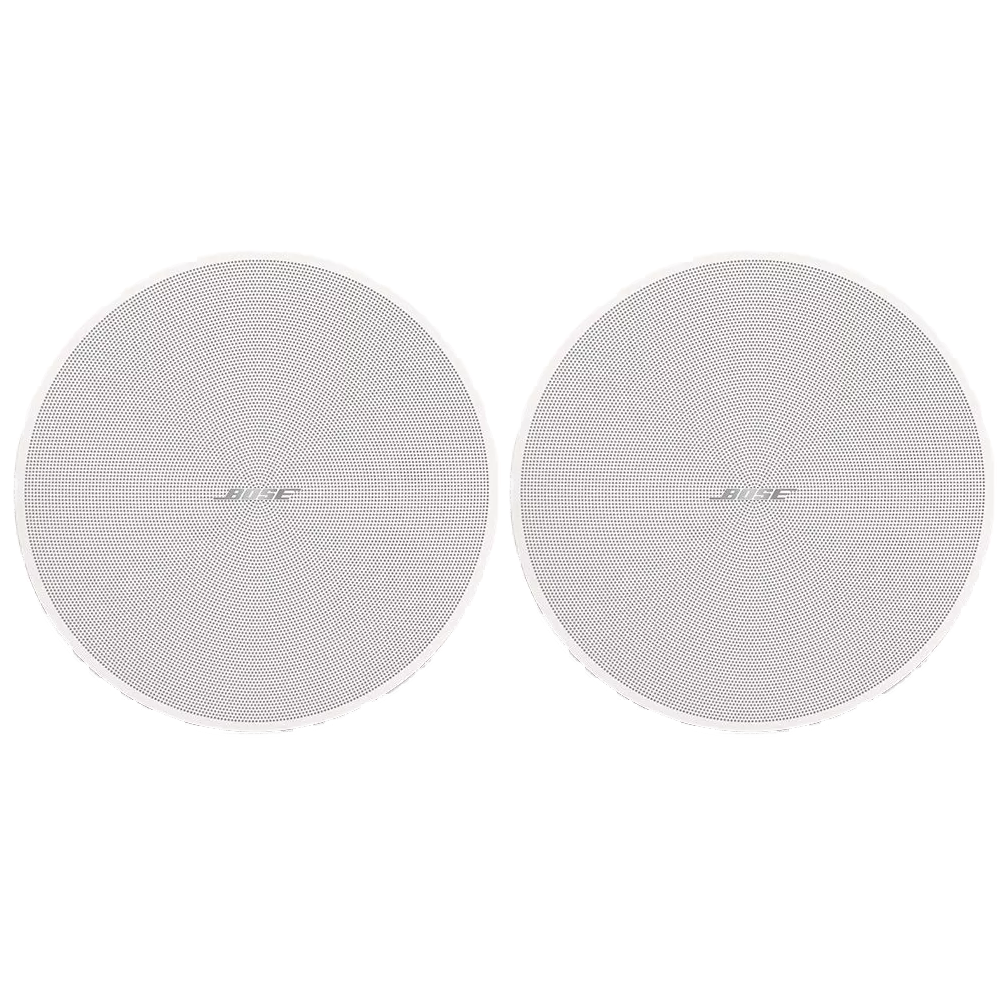

Bose Professional DesignMax DM5C Passive Ceiling Mount 2-Way Coaxial Loudspeakers Pair - White

Bose Professional DesignMax DM5C Passive Ceiling Mount 2-Way Coaxial Loudspeakers - White

With coaxial two-way drivers, the 60-watt Bose Professional DesignMax DM5C loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM5C features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The in-ceiling DM5C is installed easily via QuickHold mounting arms.

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
• Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier


SPECIFICATIONS

• Compliance:
• UL 1480A, In Compliance with UL 2043 for Plenum-Space Installation
• NFPA 70 & NFPA 90A
• CE-Compliant
• Physical:
• Colors: Black (RAL 9005), White (Similar to RAL 9003), Paintable
• Enclosure Material: Engineered-Plastics Front Baffle with Integrated Steel-Formed Back Can
• Environmental: Indoor Only
• Grille: Magnetically Attached Perforated Steel, Powder-Coated Finish, Paintable, with Safety Tether
• Ceiling Cutout: 9.8 in (250 mm)
• Logo: Rotatable, Removable
• Suspension/Mounting: (3) QuickHold Spring-Loaded Mounting Arms, (3) Safety Cable Attachment Points
• Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
• Product Dimensions (H × W × D): 11.9 in × 8.1 in (303 mm × 205 mm), Loudspeaker Diameter × Depth / 9.6 in × 7.6 in (243 mm × 192 mm), Backcan Diameter × Depth
• Net Weight: 9.6 lb (4.5 kg), Loudspeaker with Grille (Single) / 1.9 lb (0.9 kg), Tile Bridge (Single)
• Shipping Weight: 29.0 lb (13.2 kg), Pair
• Performance:
• Frequency Range (-10 dB): 65 Hz – 20,000 Hz
• Coverage, Horizontal: 130° Conical
• Coverage, Vertical: 130° Conical
• Calculated Maximum SPL @ 1 m: 105 dB
• Nominal Impedance: 8 Ω (Transformer Bypass)
• Power Handling, Long-Term Continuous: 60 W
• Power Handling, Peak: 240 W
• Recommended Signal Processing: Not Required (Bose Professional EQ Voicing and SmartBass Processing Available)
• Sensitivity (SPL/1 W at 1 m): 87 dB
• Transformer Taps, 100V: 6, 12, 25, 50 W, Bypass
• Transformer Taps, 70V: 3 W, 6 W, 12 W, 25 W, 50 W, Bypass
• Transducers:
• Crossover: 1.8 kHz, Passive 2-Way Crossover
• Driver Protection: Recommended High-Pass Protection 65 Hz with 24 dB/Octave Filter
• High-Frequency: 1 × 1 in (25 mm) Neodymium Dome Tweeter, Coaxially Mounted
• Low-Frequency: 1 × 5.25 in (133 mm) Woofer
