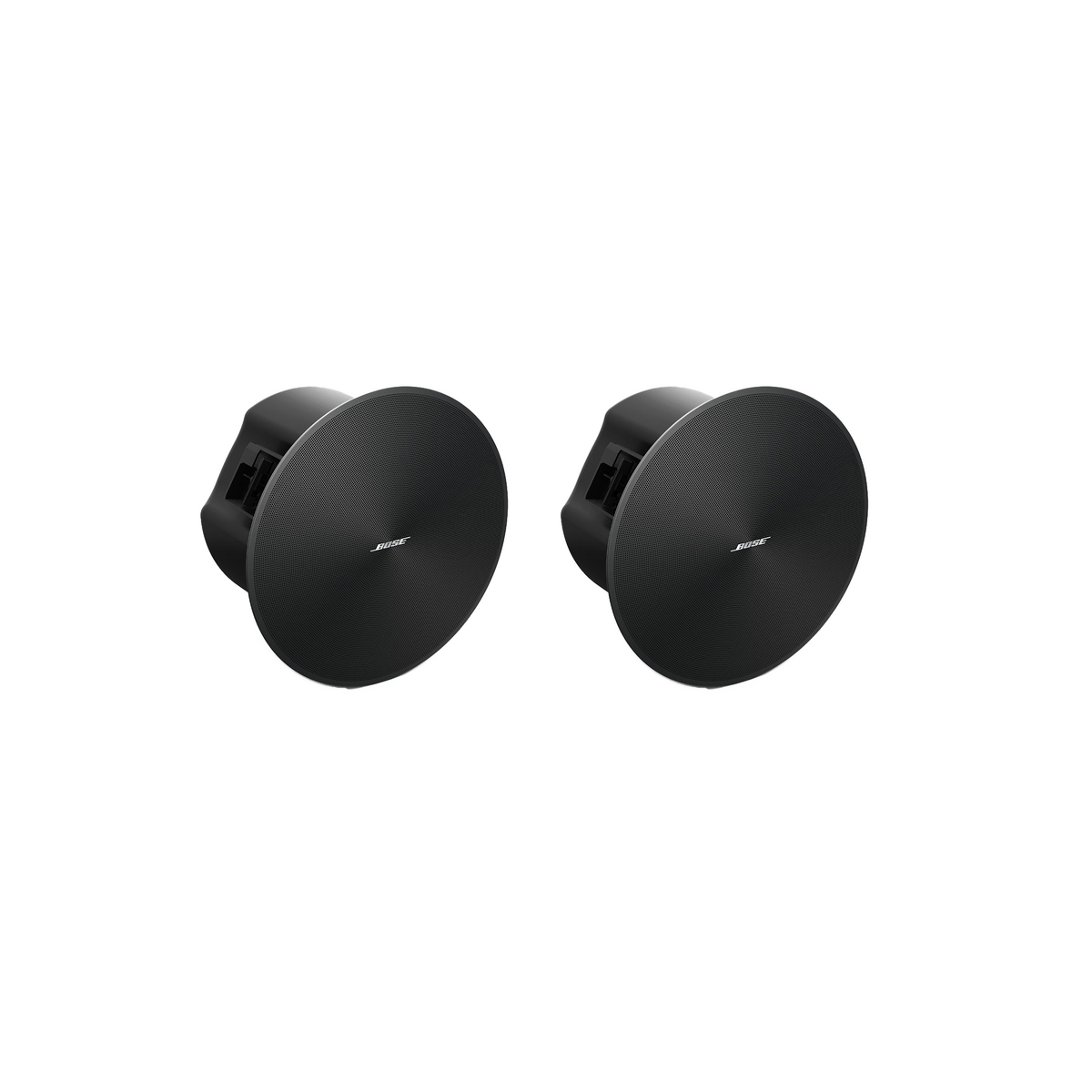

Bose Professional DesignMax DM5C Passive Ceiling Mount 2-Way Coaxial Loudspeakers Pair - Black

Rich Lows and Clear Highs – The Bose Professional DesignMax DM5C Passive Ceiling Mount 2-Way Coaxial Loudspeakers - Black

With coaxial two-way drivers, the 125-watt Bose Professional DesignMax DM5C loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM6C features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz – 20 kHz. The in-ceiling DM6C is installed easily via QuickHold mounting arms.

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Designed for a wide range of applications, including:

Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues

SPECIFICATIONS

Compliance

• Safety agency ratings: UL 1480A, in compliance with UL 2043 for plenum-space installation, NFPA 70 and NFPA 90A, CE-compliant

Physical

• Colors: Black (RAL 9005), white (similar to RAL 9003), paintable
• Enclosure material: Engineered-plastics front baffle with integrated steel-formed backcan
• Environmental: Indoor only
• Grille: Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
• Ceiling cutout: 11.5 in (292 mm)
• Logo: Rotatable, removable
• Suspension/mounting: (3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
• Operating temperature range: 0 °C to 50 °C (32 °F to 122 °F)
• Product dimensions: 14.0 in × 9.4 in (356 mm × 239 mm), loudspeaker diameter × depth / 11.3 in × 8.8 in (287 mm × 223 mm), backcan diameter × depth
• Net weight: 14.3 lb (6.5 kg), loudspeaker with grille (single) / 1.8 lb (0.8 kg), tile bridge (single)
• Shipping weight: 39.1 lb (17.7 kg), pair

Performance

• Frequency range (-10 dB): 59 Hz – 20,000 Hz
• Coverage, horizontal: 120° conical
• Coverage, vertical: 120° conical
• Calculated maximum SPL @ 1 m: 109 dB
• Nominal impedance: 8 Ω (transformer bypass)
• Power handling, long-term continuous: 125 W
• Power handling, peak: 500 W
• Recommended signal processing: Not required, Bose Professional EQ voicing and SmartBass processing available
• Sensitivity (SPL/1 W at 1 m): 88 dB
• Transformer taps, 100V: 5, 10, 20, 40, 80 W, bypass
• Transformer taps, 70V: 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass

Transducers

• Crossover: 1.7 kHz, passive 2-way crossover
• Driver protection: Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter
• High-frequency: 1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted
• Low-frequency: 1 × 6.5 in (165 mm) woofer

Manufacturer: BOSE
Model: 829683-0120
SKU: I808763-N-3-WHXX
UPC: 017817855105
