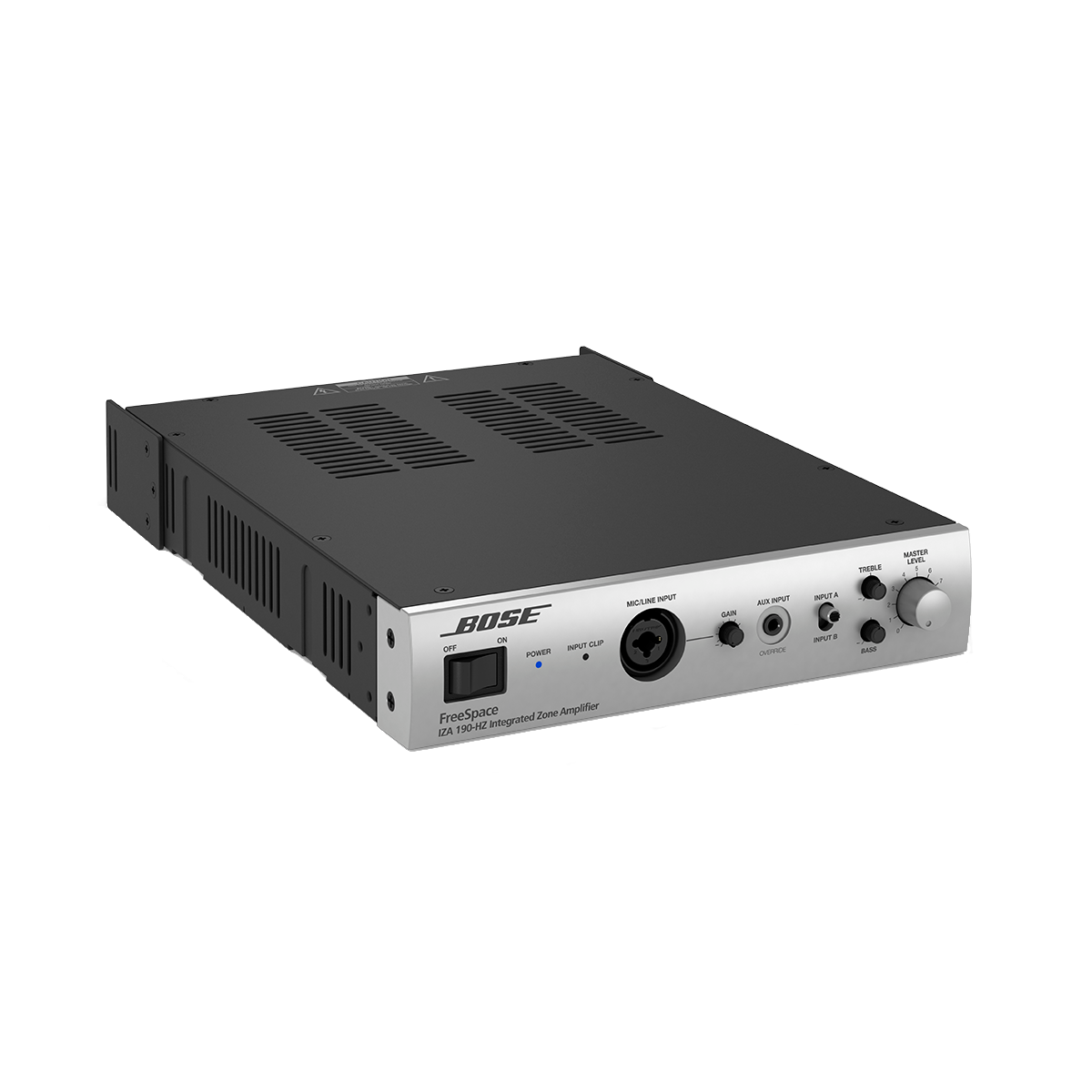

Bose Professional FreeSpace IZA 190-HZ Integrated Zone Amplifier

Bose Professional FreeSpace IZA 190-HZ Integrated Zone Amplifier

The Bose FreeSpace IZA 190-HZ is a compact, high-quality zone amplifier engineered for background and foreground music and paging applications. Featuring a reliable Class-D amplifier and advanced DSP, it delivers premium sound quality and flexible control in retail, hospitality, and educational settings. Setup is simple, operation is user-friendly, and system optimization is seamless when paired with FreeSpace FS2 and FS4 loudspeakers.

Features

• Premium Class-D amplification with integrated DSP for optimal sound performance
• Front and rear panel setup—no computer required
• Opti-Voice paging for smooth music-to-page transitions
• Front panel includes input selector, tone controls, and source/mic gain
• Compact and lightweight for flexible installation
• Compatible with optional wall-mounted volume/source control (ControlCenter CC-1, CC-2)
• Selectable loudspeaker EQ presets for FreeSpace FS2 and FS4 models

Applications

• Retail stores
• Restaurants and bars
• Hospitality venues
• Conference centers
• Schools
• Auxiliary zones

Specifications

• Power Output: 90 W at 70V/100V
• Amplifier Class: Class D
• Frequency Response: 60 Hz – 20 kHz (+0/-3 dB)
• THD+N: ≤ 1% at full rated power
• Input Channels: 2 line, 1 mic/line, 1 mic (page), 1 aux
• Input Connectors: RCA, XLR/TRS combo, Euroblock, 1/8" TRS
• Output Channels: 1 amplified, 1 aux out (RCA and Euroblock)
• Controls: Front panel tone, input selection, gain, volume; rear panel EQ and DIP switches
• DSP: 48 kHz / 24-bit; Opti-Voice, Dynamic EQ, loudspeaker presets
• Latency: 10.4 ms (analog in to analog out)
• Cooling: Natural convection
• Dimensions (H × W × D): 1.8 in × 8.4 in × 12.2 in (45 mm × 214 mm × 310 mm)
• Net Weight: 7.0 lb (3.2 kg)
• Rack Spaces: 1 RU high, half rack wide
• Power Consumption: 15 W idle / 200 W max
• Inrush Current: 7.6 A @ 120V, 13.9 A @ 230V
• Included: Power cord, feet, Euroblock connectors
• Warranty: 5 years
