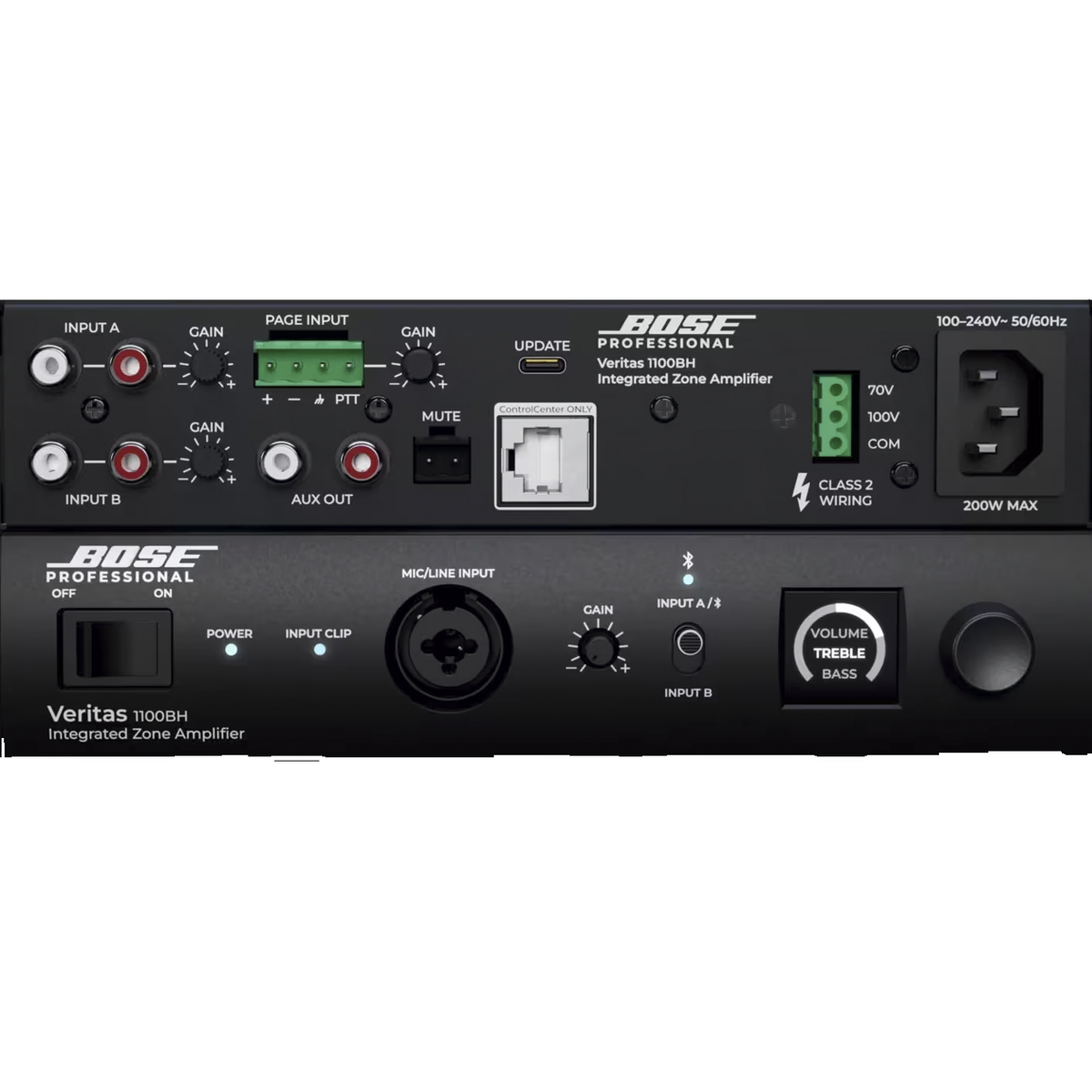

Bose Professional Veritas 1100BH Integrated Zone Amplifier and Smart Mixer

Compact Power and Clarity – The Bose Professional Veritas 1100BH Integrated Zone Amplifier and Smart Mixer

The award-winning Bose Professional Veritas Series sets a new standard for background and foreground music, paging, and multimedia performance in commercial spaces. The Veritas 1100BH is a compact, high-efficiency amplifier designed for 70V/100V distributed audio systems, ideal for smaller venues, offices, and retail installations. With advanced DSP, Bluetooth® 5.0 connectivity, and an intuitive OLED display featuring a quick-start QR code, setup and operation are faster and easier than ever—whether installed by professionals or DIY users.

Delivering 100 watts of clean power with dynamic EQ and Bose’s renowned Opti-Voice paging technology, the 1100BH provides exceptional clarity and coverage for background music and announcements. Its half-rack design, convection cooling, and versatile mounting options make it a perfect fit for installations requiring silent, reliable operation and professional-grade audio performance.

• Premium 100-watt amplifier with integrated DSP for optimized audio performance
• Bluetooth 5.0 connectivity for wireless music streaming and control
• Front-panel OLED display with intuitive navigation and quick-start QR setup
• Supports 70V/100V high-impedance loudspeaker systems
• Dynamic EQ maintains full, rich sound at lower volumes
• Opti-Voice paging feature ensures clear and intelligible announcements
• Remote level control compatible with Bose and third-party wall controllers
• Convection-cooled fanless design ideal for quiet installations
• Includes mounting brackets, Euroblock connectors, and power cable
• Perfect for retail, hospitality, conference rooms, and education facilities

SPECIFICATIONS

Amplification

• Dynamic Range: 88 dB
• Frequency Response: 70 Hz – 18 kHz (+0 / -4 dB @ 1 W, 1 kHz)
• Rated Power: 1 × 100 W @ 70V/100V
• THD+N: ≤0.3% (at full rated power)

Audio Inputs (Analog)

• Input Channels: (2) unbalanced line, (2) balanced mic/line
• Connectors: (2) RCA stereo pairs, (1) XLR/¼-inch combo, (1) 4-pin Euroblock
• Input Impedance: 20 kΩ (line), 2.4 kΩ (page)
• Input Range: -10 dBV to +10 dBV (line), -60 dBV to +10 dBV (page)
• Maximum Input Level: +10 dBV (line/page)
• Sensitivity: -10 dBV (line), -58 dBV (page)

Audio Outputs (Analog)

• Outputs: (2) loudspeaker, (1) unbalanced line
• Connectors: (1) 3-pin inverted Euroblock, (1) RCA stereo pair
• Nominal Output Level: 1 × 100 W at 70V/100V, 0 dBV max (aux)

Electrical

• Mains Connector: IEC C14 inlet
• Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
• Protections: High temperature, output short circuit
• Power Consumption: 15 W idle, 200 W maximum

Controls and Indicators

• Front Panel: Power on/off, input select (A/Bluetooth/B), input gain knob (XLR/¼”), rotary encoder
• Rear Panel: Input gain (A, B, page), mute connector, ControlCenter port
• Display: OLED screen with menu navigation and quick-start QR code

Integrated DSP

• Converters: 48 kHz / 24-bit A/D and D/A
• Audio Latency: 10.4 ms
• Presets: 70 Hz / 80 Hz HPF, AMU105/108, DesignMax, EdgeMax, FreeSpace FS, subwoofer profiles
• Functions: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ

Physical

• Cooling: Natural convection (fanless)
• Dimensions (H × W × D): 44 × 214 × 310 mm (1.7 × 8.4 × 12.2 in)
• Net Weight: 3.2 kg (7.1 lb)

Product Codes

• 892237-1110 — VERITAS 1100BH 120V US
• 892237-2110 — VERITAS 1100BH 230V EU
• 892237-4110 — VERITAS 1100BH 230V UK
• 892237-3140 — VERITAS 1100BH 100V JP
• 892237-2140 — VERITAS 1100BH 230V CN
• 892237-5110 — VERITAS 1100BH 240V AU

Included Accessories

• (2) Mounting brackets
• (6) Screws
• (4) Mounting feet with pins
• (1) 4-pin Euroblock connector
• (1) 3-pin Euroblock connector
• (1) 2-pin Euroblock connector
• (1) Power cord
• (1) Installation guide

Manufacturer: BOSE
Model: 892237-1110
SKU: I847132-N-2-WHXE
UPC: 840409500417
