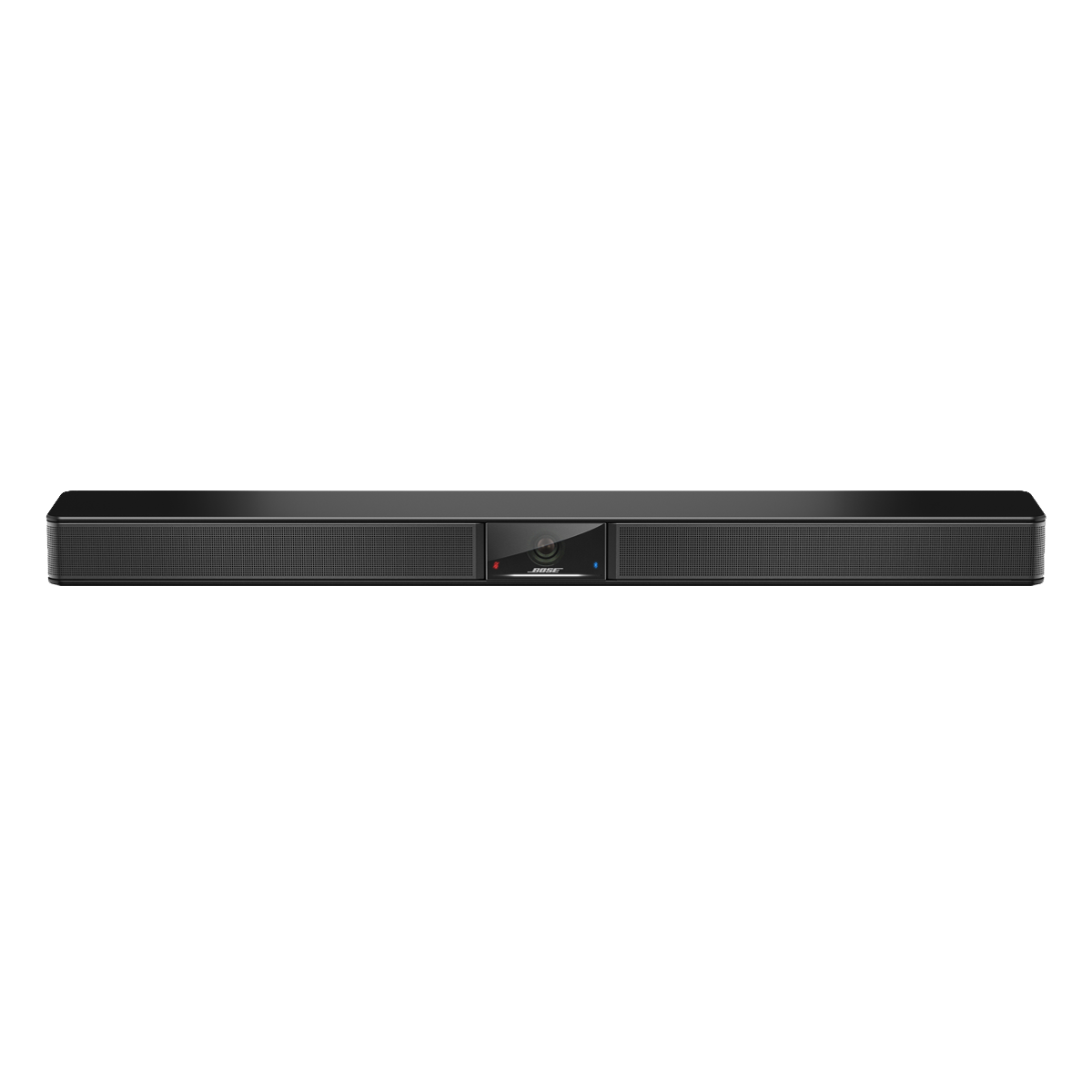

Bose Professional Videobar VB1 All-in-One USB Conferencing System

Upgrade Meeting Rooms with the Bose Professional Videobar VB1

The Bose Professional Videobar VB1 is an all-in-one USB conferencing device that brings premium audio and video to huddle spaces and medium-sized meeting rooms up to 6 x 6 meters / 20 x 20 feet. With six automatic beam-steering microphones, a 4K ultra-HD camera, Bluetooth connectivity, and signature Bose Professional sound, the Videobar VB1 helps meeting participants hear, see, and collaborate more clearly.

• All-in-one USB conferencing device for huddle rooms and medium-sized meeting spaces
• Designed for rooms up to 6 x 6 meters / 20 x 20 feet
• Six automatic beam-steering microphones provide clear voice pickup
• 4K ultra-HD camera with autoframing and manual pan-tilt-zoom control
• 123° diagonal field of view captures participants clearly
• Bluetooth connectivity allows use as a standalone speakerphone or music speaker
• Network connectivity supports remote updates, management, monitoring, and troubleshooting
• Videobar Configuration software supports easy initial setup
• Videobar Administration software supports single-device or enterprise-wide management
• Videobar Mobile app allows real-time control from a smartphone
• USB Type-C, Wi-Fi, 1 Gbps Ethernet, Bluetooth, HDMI output, 3.5 mm aux input, and 2-pin Euroblock GPI connections
• Includes tabletop stand, wall-mount template, remote control, cables, power supply, and setup accessories

All-In-One Conferencing

The Videobar VB1 combines camera, microphones, speakers, and conferencing connectivity in one clean device. It is designed for conference rooms, meeting spaces, offices, huddle rooms, lecture halls, and other collaboration spaces that need reliable audio and video without a complicated equipment setup.

Automatic Beam-Steering Microphones

Six microphones use static and adaptive dynamic beam-forming to focus on voices in the room. Stereo acoustic echo cancellation, digital noise suppression, and three exclusion zones help improve speech clarity during video calls and hybrid meetings.

4K Camera with Flexible Framing

The built-in 8 MP camera supports UHD 2160p 4K video along with multiple HD and lower-resolution formats at 30 fps. Autoframing mode helps keep participants in view, while manual pan, tilt, zoom, and configurable presets provide additional control when needed.

Simple Setup and Remote Management

Videobar Configuration software makes initial setup easy from an app or web browser. Videobar Administration software supports remote management for single-device or enterprise-wide changes, including device status monitoring and updates.

Smartphone and Bluetooth Control

The Videobar Mobile app allows real-time control from a smartphone, including volume, mute, pan, tilt, zoom, presentation controls, and Bluetooth pairing. Bluetooth connectivity also lets the VB1 function as a standalone speakerphone or stream music when needed.

SPECIFICATIONS

General

• Product Type: All-in-one USB conferencing device
• Model: Videobar VB1
• Color: Black
• Room Size: Up to 6 x 6 meters / 20 x 20 feet
• Applications: Conference rooms, lecture halls, meeting spaces, offices, and huddle rooms
• Warranty Period: 3 years

Amplification

• Maximum Peak Power, Symmetrical: 20 W
• Rated Power, Symmetrical: 20 W per channel, less than 0.3% distortion over frequency range

Performance

• Calculated Maximum SPL at 1 m: 89 dB, IEC 60268-5, mono input, wall-mounted

Camera and Video

• Image Sensor: 8 MP
• Focus Distance: 0.5 m / 1.6 feet to infinity
• Field of View: 123° diagonal x 115° horizontal x 81° vertical
• Lens: Up to 5x digital zoom
• Positioning: Autoframing mode and manual pan-tilt-zoom with configurable presets
• Processing: Automatic white balance, automatic brightness, and digital noise reduction
• Supported Video Resolutions: UHD 2160p 4K, 1080p, 720p, 960 x 480, 848 x 480, 640 x 480, 640 x 360, and 432 x 240 at 30 fps
• USB Device Video Class: UVC v1.1
• Video Encoding: H.264 and M-JPEG

Microphone

• Microphone Quantity: 6 microphones
• Pickup Range: 6.0 m / 19.7 feet
• Technology: Static and adaptive dynamic beam-forming, 3 exclusion zones, stereo acoustic echo cancellation, and digital noise suppression

Audio Inputs

• Analog Input Connector: 1 x stereo 1/8-inch / 3.5 mm

Communication Ports

• Bluetooth: Bluetooth 4.2 HSP, A2DP, AVRCP, and Bluetooth Low Energy
• Network: RJ-45, 1 Gbps Ethernet, IEEE 802.3 wired, and Wi-Fi 802.11ac wireless
• Computer Interface Connection: USB Type-C, USB 3.0 UAC, UVC, HID
• HDMI Output: Included
• Control Input: 1 x general purpose 2-pin Euroblock

Software

• System Requirements: Windows 7, 8.1, or 10; macOS 10.10 or later; Chrome OS / Google Chromebook
• Software Applications: Videobar Configuration for Windows, macOS, and web browser; Videobar Administration for Windows; Videobar Mobile for Android and iOS

Indicators and Controls

• LED Status Indicators: 1 x LED light bar, 1 x mute LED, and 1 x Bluetooth LED

Electrical

• AC Power Connector: External power supply with local power cord included
• AC Power Input: 110-240 VAC, 50/60 Hz, 1.5 A maximum

Compliance

• Safety: IEC/UL/EN 60065:2014/A11:2017 and IEC/UL/EN 62368-1:2014/A11:2017
• Environmental: RoHS
• EMC: FCC Part 15B Class B, ICES-003 Class B, CISPR 13, EN55032 Class B, EN55035, EN61000-3-2, EN61000-3-3, and BSMI CNS13439

Mounting

• Included Mounting: Tabletop stand and wall-mount template
• Optional Mounting: Display mounting kit and mud ring

Operating Environment

• Operating Temperature Range: 0°C to 40°C / 32°F to 104°F, 90% non-condensing humidity
• Storage Temperature: -40°C to 70°C / -40°F to 158°F, 93% relative humidity

Dimensions

• Product Dimensions: 1.9 x 27.0 x 4.0 inches / 48 x 659 x 102 mm
• Dimension Format: H x W x D
• Shipping Dimensions: 27.0 x 1.9 x 3.8 inches / 686 x 48 x 96 mm

Weight

• Net Weight: 5.6 lb / 2.5 kg
• Shipping Weight: 12.0 lb / 5.4 kg

Product Codes

• 842415-1110: Videobar VB1 120V US
• 842415-2110: Videobar VB1 230V EU
• 842415-3110: Videobar VB1 100V JP
• 842415-4110: Videobar VB1 240V UK
• 842415-5110: Videobar VB1 240V AUS
• 842888-0010: Display Mounting Bracket
• 843944-0010: 2 m USB 3.1 Cable
• 861846-0010: Mudring

What's in the Box?

• 1 x Videobar VB1
• 1 x HDMI 2.0 Cable
• 1 x Tabletop Setup Guide
• 1 x Wall-Mount Setup Guide
• 1 x Safety Instruction Guide
• 1 x USB-C 2.0 Cable, 16.5 feet / 5.0 m
• 1 x Power Cord
• 1 x Power Supply
• 1 x USB-C-to-A Adapter
• 1 x Tabletop Stand with Mounting Hardware
• 1 x Infrared Remote Control
• 2 x AAA Batteries
• 1 x Quick Start Guide
• 1 x 2-Pin Euroblock Connector
• 1 x Right-Angle USB-C Adapter
• 1 x Wall-Mount Template with Mounting Hardware
