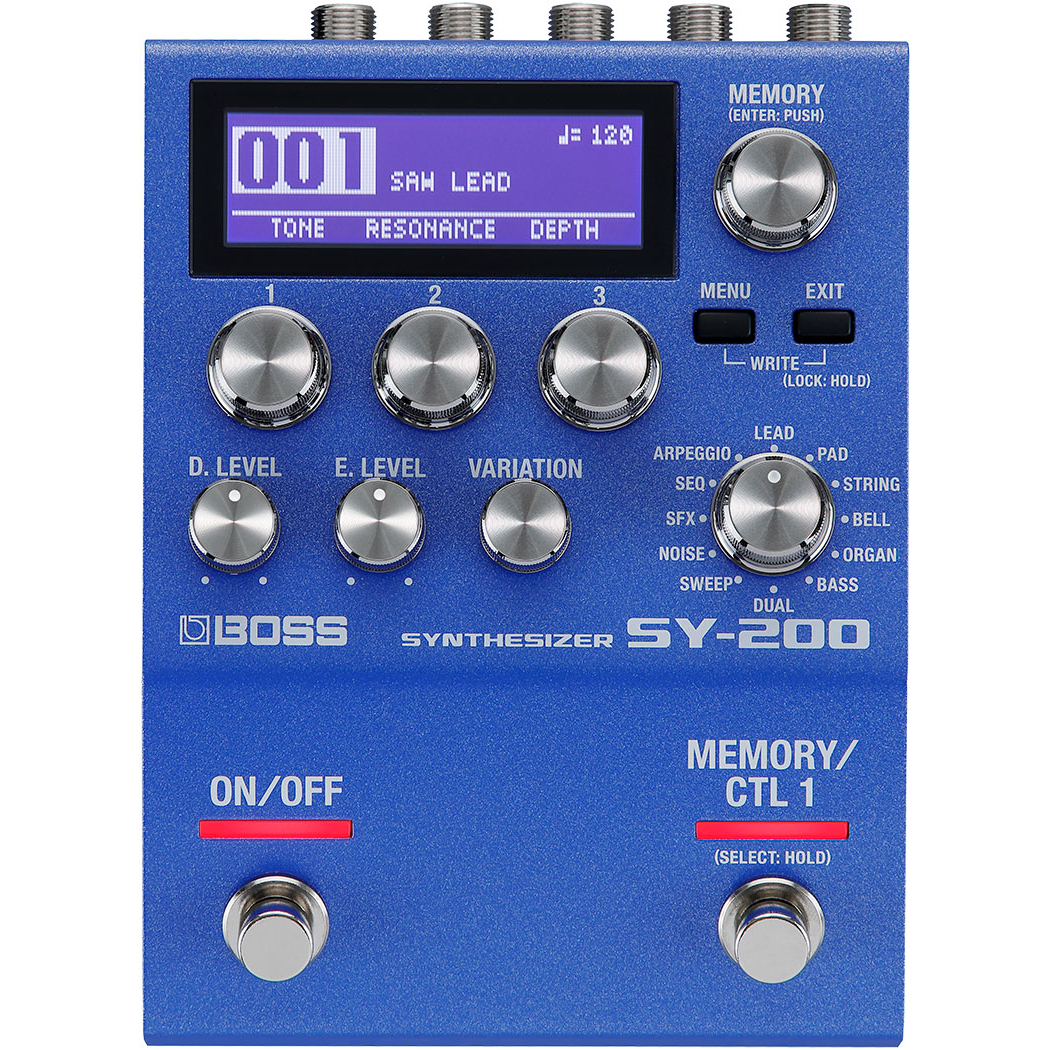

Boss SY-200 Synthesizer Guitar Effects Pedal

Hone a World of Synth Tones Right at your feet - the Boss SY-200 Synthesizer Guitar Effects Pedal

Offering a universe of rich, analog-inspired polyphonic tones in a small footprint, the SY-200 makes it simple to weave BOSS’s expressive guitar and bass synth technology into all of your musical journeys. Building on the fun, instant-gratification experience of the acclaimed SY-1, this blue inspiration machine features an expanded sound set , more tone-shaping possibilities , and 128 memories for storing your sonic creations. Two onboard footswitches provide deep real-time performance control, and you can take things even further with external footswitches, an expression pedal, and MIDI

• Advanced BOSS polyphonic guitar synth technology in a streamlined 200 Series pedal
• 12 analog-style synth categories with many variations in each (171 sounds total)
• Three adjustable parameters for customizing sounds
• 128 memories for saving and recalling sounds
• Fast sound creation with hands-on controls and large display
• No special pickup required — play rich, dynamic synth tones with any guitar or bass
• Latency-free performance for unrestricted musical expression
• Assignable Memory/CTL 1 switch for memory change, hold, pitch control, and more
• Blend synth and normal guitar sounds with independent level controls
• Parallel send/return loop for easy integration with other pedals on your board
• Selectable modes for globally optimizing the synth engine for guitar or bass
• Supports extended control with up to two external footswitches or an expression pedal
• Full MIDI I/O provided with space-saving 3.5 mm TRS jacks (connection cables available separately)
• Micro USB jack for firmware updates
• Runs on PSA-Series AC adaptor or three AA-size batteries

A Massive Library of Expressive Synth Tones

The SY-200 transforms your guitar or bass into a versatile analog - flavored synth , ready to infuse your music with dynamic, compelling, and evocative new voices. This streamlined stomp gives you 171 total sounds organized in 12 intuitive categories , along with adjustable parameters for customizing the tone and response. And with 128 memory locations, you’re able to store your favorite sounds and instantly recall the m while performing.

Build Custom Sounds Fast

With the SY-200’s informative display and hands-on controls, it’s quick and easy to call up sounds and balance the direct and synth levels. All the preset synth tones have been dialed in by the BOSS engineers to be inspiring and playable right away. But if you want to go deeper , you can tweak three different parameters for each sound via dedicated knobs.

Flexible Connectivity

The SY-200 smoothly integrates into your setup in a variety of ways. Patch it in your chain like a regular pedal, or use the send and output jacks to route synth and straight guitar sounds to different destinations. And with the send/return loop and level knobs , it’s possible to craft unique hybrid sounds by blending one or more pedals in parallel with different synth voices.

Powerful Real-Time Control

The SY-200 provides a massive range of control options while taking up minimal space on your pedalboard. Two customizable footswitches offer multi-functional operation with press-and-hold functionality, allowing you to control synth on/off, memory scrolling, pitch bend, synth hold, and more. Expanded control is possible via external footswitches or an expression pedal, and MIDI I/O is also available to interface with other MIDI-equipped pedals and devices like the ES-8 and ES-5 loop switchers.

Plug-and-Play and Latency-Free

You can use the SY-200 with any guitar or bass -- just plug in with a standard 1/4-inch cable and start creating. Thanks to custom DSP and the latest BOSS innovations, you’ll enjoy latency-free performance that’s a natural extension of your instrument, letting you play freely without altering your normal technique in any way.

Supercharge Your Music with a Diverse Range of Sounds

The SY-200 is loaded with a large library of synthesizer tones to inspire new ideas and bring fresh voices to your music.

Included in the box

• Owner's Manual
• Leaflet "USING THE UNIT SAFELY"
• Alkaline battery (AA, LR6) x 3
• Rubber foot x 4

SPECIFICATIONS

General

• Sampling Frequency: 44.1 kHz
• AD/DA Conversion: 24 Bits
• Processing: 32-Bit Floating Point
• Modes: 12 Modes (LEAD, PAD, STRING, BELL, ORGAN, BASS, DUAL, SWEEP, NOISE, SFX, SEQ, ARPEGGIO)
• Memory: 128
• Nominal Input Level: INPUT, RETURN: -10 dBu
• Maximum Input Level: INPUT, RETURN: +7 dBu
• Input Impedance: INPUT, RETURN: 2 M ohms
• Nominal Output Level: OUTPUT, SEND: -10 dBu
• Maximum Output Level: OUTPUT, SEND: +7 dBu
• Output Impedance: OUTPUT, SEND: 1 k ohm
• Recommended Load Impedance: OUTPUT, SEND: 10 k ohms or greater
• Bypass: Buffered Bypass

Controls

• ON/OFF Switch
• MEMORY/CTL 1 Switch
• TYPE Knob
• MEMORY Knob
• 1 Knob
• 2 Knob
• 3 Knob
• D. LEVEL Knob
• E. LEVEL Knob
• VARIATION Knob
• MENU Button
• EXIT Button

Display

• Graphic LCD (132 x 32 Dots, Backlit LCD)

Connectors

• INPUT Jack: 1/4-Inch Phone Type
• OUTPUT Jack: 1/4-Inch Phone Type
• SEND Jack: 1/4-Inch Phone Type
• RETURN Jack: 1/4-Inch Phone Type
• CTL 2, 3/EXP Jack: 1/4-Inch TRS Phone Type
• MIDI (IN, OUT) Jacks: Stereo Miniature Phone Type
• DC IN Jack
• USB Port: USB Micro B-Type (Program Update Only)

Power

• Power Supply: Alkaline Battery (AA, LR6) x 3
• AC Adaptor: Sold Separately
• Current Draw: 230 mA

Expected Battery Life Under Continuous Use

• Alkaline: Approx. 5 Hours
• These figures will vary depending on the actual conditions of use.

Size & Weight

• Dimensions: 101 (W) x 138 (D) x 65 (H) mm | 4 (W) x 5-7/16 (D) x 2-9/16 (H) Inches (Including Rubber Foot)
• Weight (Excluding Batteries): 630 g | 1 lb 7 oz

Options (Sold Separately)

• AC Adaptor: PSA-S Series
• Footswitch: FS-5U
• Dual Footswitch: FS-6 / FS-7
• Expression Pedal: FV-500H / FV-500L / EV-30 / Roland EV-5
• MIDI/TRS Connecting Cable: BMIDI-5-35
