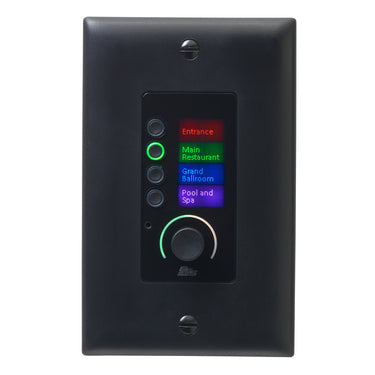

BSS EC-4BV Ethernet Controller with 4 Buttons and Volume

Control Your System with Precision Using the BSS Audio Soundweb Contrio EC-4BV Ethernet Wall Controller

The BSS Audio Soundweb Contrio EC-4BV is an Ethernet wall controller designed for Harman HiQnet systems, offering intuitive control and monitoring of parameters within BSS Audio Soundweb London and other HiQnet-compatible devices, including Crown DCi series amplifiers. Compact and flexible, the EC-4BV delivers professional-grade functionality in a sleek single-gang form factor, available in both US Decora and EU versions in either black or white finishes.

The EC-4BV connects through a single Ethernet port for configuration, control, monitoring, and power via PoE, simplifying installation and reducing cable clutter. Configuration is performed through simple drag-and-drop operations in the HiQnet Audio Architect software, allowing rapid setup and integration.

• Ethernet wall controller for Harman HiQnet systems
• Compatible with BSS Audio Soundweb London, Crown DCi, and other HiQnet devices
• Available in black or white finishes
• Available in US Decora or EU single-gang versions
• Power Over Ethernet (PoE) connection for simplified installation
• Configured via HiQnet Audio Architect software with drag-and-drop setup
• Includes one programmable push/rotary encoder and multicolored encoder ring
• Four programmable multicolored buttons for mute, preset recall, or source selection
• High-contrast 64x128 pixel multicolored LCD for clear text and parameter display
• Encoder ring can show level meters, volume settings, or mute status
• Supports sleep mode to turn off LEDs after inactivity
• Security features include remote lock/unlock and local PIN-based unlock
• Multiple modes of operation allow dynamic reassignment of encoder and button functions

SPECIFICATIONS

• Control Protocol: Harman HiQnet
• Configuration Software: HiQnet Audio Architect
• Display: 64 x 128 pixel multicolored LCD screen
• Controls: 1 push/rotary encoder, 1 encoder ring, 4 programmable buttons
• Backlighting: Multi-color with 8 selectable colors and adjustable intensity
• Power: Power Over Ethernet (PoE)
• Form Factor: Single-gang (US Decora or EU version)
• Finish Options: Black or white
• Security: Remote lock/unlock and local unlock via four-digit PIN
• Additional Features: Sleep function, multiple control modes, RDM over network support

Manufacturer: BSS Audio U.S.A.
Model: EC-4BV-BLK-US
SKU: I434802-N-2-WHXE
UPC: 691991000355
