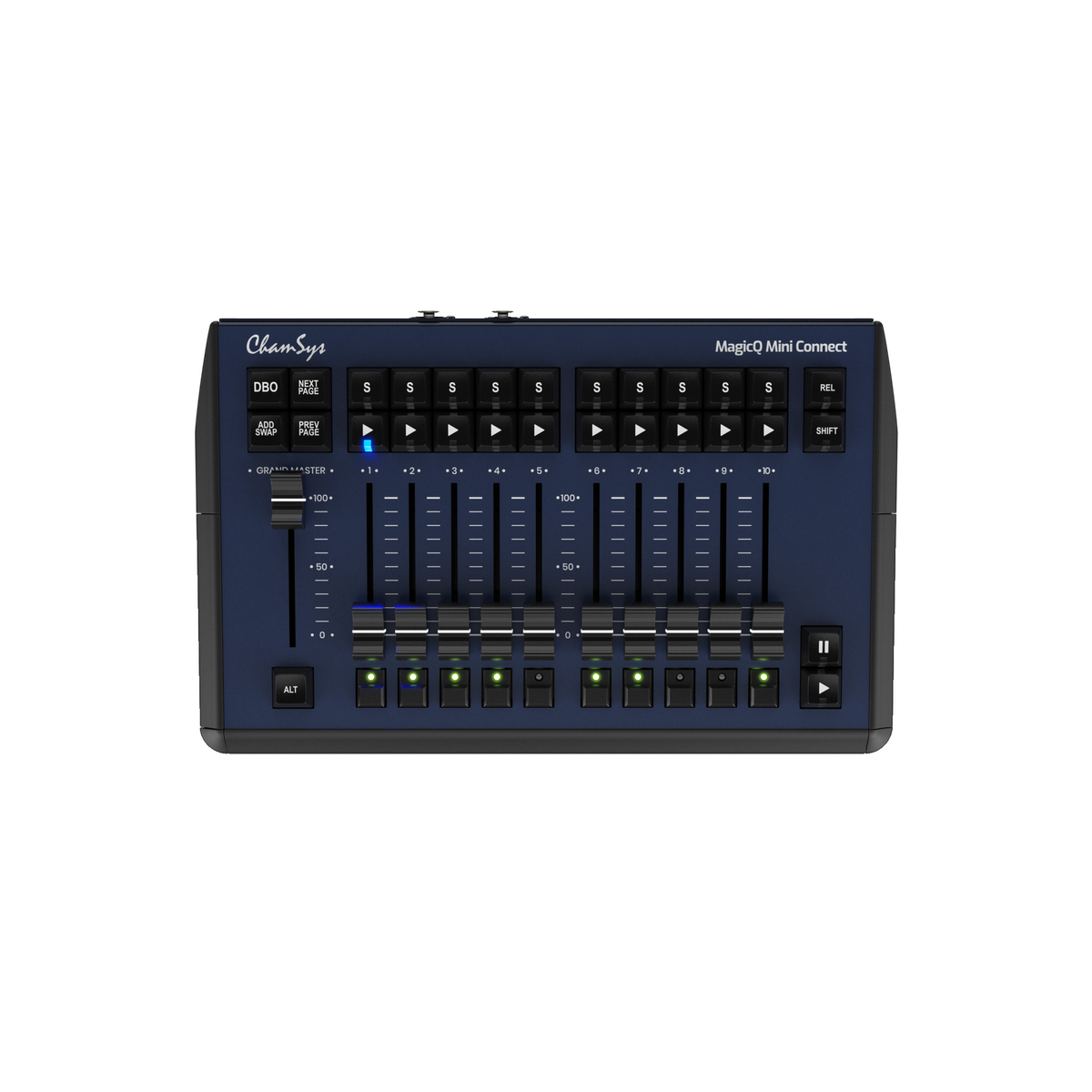

ChamSys MagicQ Compact Mini Connect Lighting Controller

ChamSys MagicQ Compact Mini Connect Lighting Controller

The ChamSys MagicQ Compact Mini Connect is a highly portable USB 3 powered control surface that brings hands-on playback control to the full power of MagicQ software. Connected to a Windows, macOS, or Linux computer running MagicQ, it turns your laptop into a powerful lighting, media, and LED control center with real faders, dedicated buttons, and a Grand Master for live show operation.

• 10 playback faders with Flash, Go, and Select buttons for hands-on show control
• USB-C connection with USB 3 power (requires USB 3.0 or higher port)
• Works with free MagicQ software on Windows, macOS, and Linux
• 1 direct DMX512 output with RDM support
• Onboard network port outputs up to 64 universes via ArtNet or sACN
• Ideal for theatres, venues, clubs, and permanent installations
• Great as a cost-effective backup for larger MagicQ consoles
• Kensington lock slot for added security
• Lightweight durable case included

Despite its compact footprint, the Compact Mini Connect can command large shows over the network while still providing a direct DMX output for straightforward rigs. It’s a practical, travel-friendly solution for programmers who want physical controls without giving up the flexibility and feature set of MagicQ.

SPECIFICATIONS

Hardware

• Playback Faders: 10
• Direct DMX Outputs: 1 (DMX512 with RDM support)
• Network Ports: 1
• Kensington Security Lock Fixing: 1
• USB Connector: USB-C
• Power: USB 3 powered (requires USB 3.0 or higher port)
• Included: lightweight durable case

Software

• Universes: 64 (via ArtNet/sACN)
• Max DMX Channels: 32768
• Max Fixtures Supported: 32768
• Max Cues: 5000
• Max Cue Stacks: 2000
• Max Groups: 5000
• Max Palettes: 4096
• Media Server Layers Supported: 50
• OS Support: Windows 8.1 or higher, macOS 10.13 or higher, Linux

Included Accessories

• USB A-C Cable: yes
• Lightweight Durable Case: yes

Boxed Dimensions and Weight

• Width: 380 mm (15 inches)
• Depth: 100 mm (3.94 inches)
• Height: 300 mm (11.8 inches)
• Weight: 3.0 kg (6.6 lb)

Console Dimensions and Weight

• Width: 327 mm (12.9 inches)
• Depth: 204 mm (8.03 inches)
• Height: 45 mm (1.78 inches)
• Weight: 1.85 kg (4 lb)
