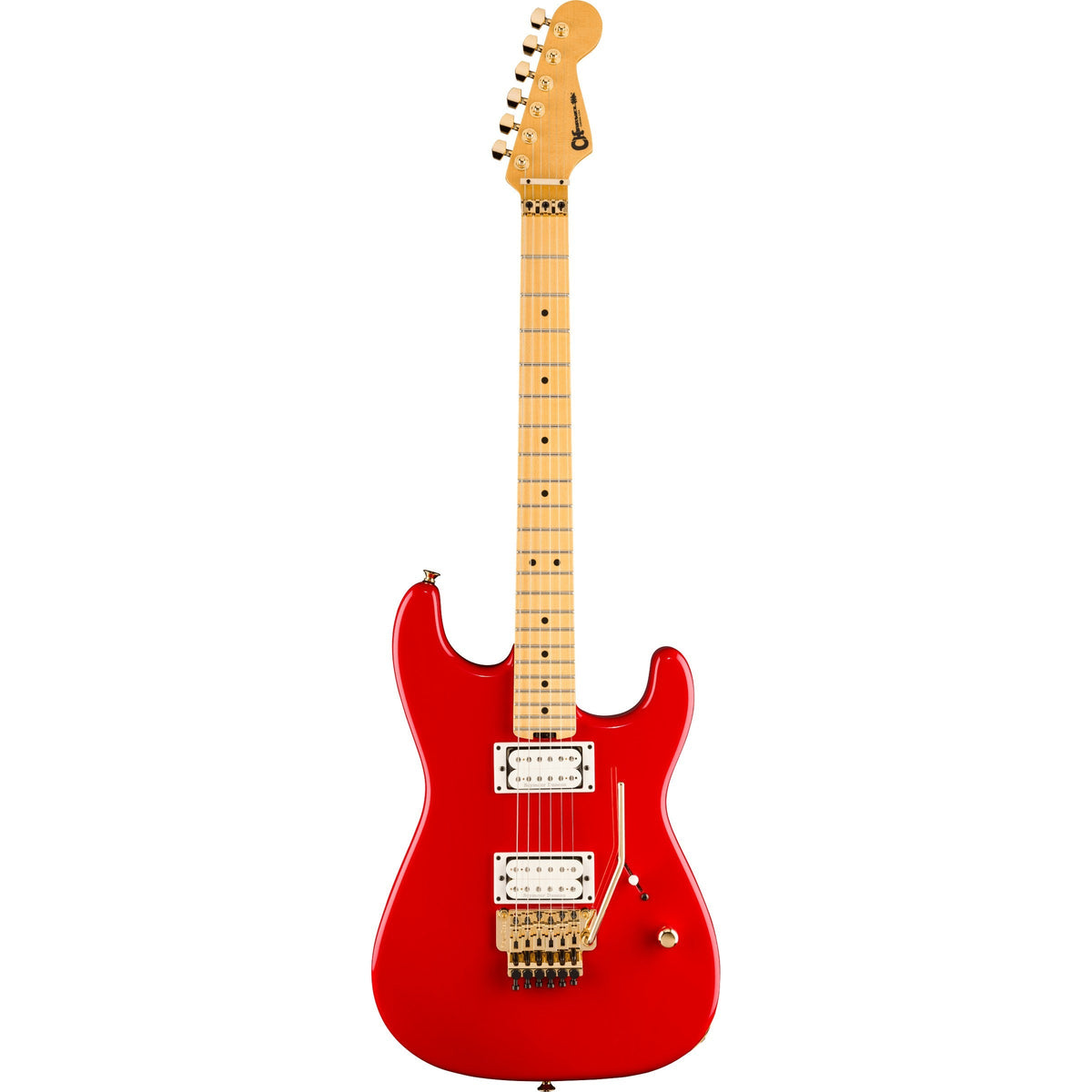

Charvel American Neo-Classic San Dimas SD1 Electric Guitar, Maple Fingerboard - Ferrari Red

Experience Modern Performance and Classic Style - The Charvel American Neo-Classic San Dimas SD1 Electric Guitar with a Maple Fingerboard in Robin's Egg Blue

The Charvel American Neo-Classic Series San Dimas® Style 1 delivers the perfect fusion of iconic design and cutting-edge innovation. The alder San Dimas body has been a Charvel staple since the early eighties, providing balanced tonal response and natural resonance with warm midrange punch and crisp high-end clarity that cuts through any mix with authority.

The custom Seymour Duncan® JB/59 pickup combination with parchment bobbins offers ultimate sonic versatility – the neck position ‘59 delivers creamy vintage warmth for expressive leads and rich rhythms, while the bridge JB provides high-output bite for everything from soaring solos to crushing riffs. The one-piece quartersawn maple neck is carefully reproduced from authentic 1980 specifications and enhanced with graphite reinforcement, ensuring legendary feel with unmatched modern stability.

The innovative 12”-16” compound radius fingerboard starts comfortable for chording and opens up dramatically for effortless lead work, while 22 jumbo stainless steel frets provide exceptional note definition. Performance features include the truss rod adjustment wheel at the fingerboard’s end for lightning-fast setup changes, rounded fingerboard edges that feel like a glove, and Luminlay® side-dots for perfect position awareness.

The top-mount Floyd Rose 1000 series double-locking tremolo delivers rock-solid tuning stability with unlimited dive-bomb devastation and soaring flutter effects, while streamlined electronics featuring a single lo-friction volume pot and 5-way blade switch put pure tone at your fingertips. This is your gateway to sonic excellence – authentic 1980 Charvel craftsmanship meets tomorrow’s innovation in one irresistible package.

SPECIFICATIONS

Body

• Body Shape: San Dimas® Style 1
• Body Style: Solid Body
• Body Material: Alder
• Body Finish: Gloss

Neck

• Headstock: Licensed Fender® Stratocaster®
• Neck Material: Quartersawn Maple
• Neck Finish: Natural Satin
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Neck Construction: Bolt-On with Graphite Reinforcement
• Scale Length: 25.5" (648 mm)
• Fingerboard Material: Quartersawn Maple
• Fingerboard Radius: 12" to 16" Compound Radius (304.8 mm to 406.4 mm)
• Number of Frets: 22
• Fret Size: Jumbo Stainless Steel
• Position Inlays: Black Dot
• Side Dots: Luminlay®
• Nut Material: Floyd Rose® 1000 Series Locking
• Nut Width: 1.6875" (42.86 mm)
• Truss Rod: Dual-Action with Wheel
• Truss Rod Adjustment: Heel-Mount Truss Rod Adjustment Wheel

Hardware

• Bridge: Floyd Rose® 1000 Series Double-Locking Tremolo (Top-Mount)
• Tuning Machines: Charvel®-Branded Die-Cast
• Hardware Finish: Gold
• Pickup Covers: Parchment
• Control Knobs: Dome-Style
• Switch Tip: Parchment
• String Trees: Retainer Bar
• Tremolo Arm: Floyd Rose®
• Neck Plate: 4-Bolt Serialized
• Strap Buttons: Standard
• Strings: Nickel Plated Steel (.009–.042 Gauges)
• Pickguard: None

Electronics

• Bridge Pickup: Seymour Duncan® JB™ TB-4
• Neck Pickup: Seymour Duncan® '59™ SH-1N
• Pickup Configuration: HH
• Controls: Volume (500K EVH® Bourns® Low Friction Pot)
• Pickup Selector: 5-Position Blade Switch
• Position 1: Bridge Pickup
• Position 2: Bridge Outer Coil and Neck Inner Coil
• Position 3: Bridge and Neck Pickups
• Position 4: Bridge Inner Coil and Neck Outer Coil
• Position 5: Neck Pickup

Miscellaneous

• Professional Performance-Oriented Design
