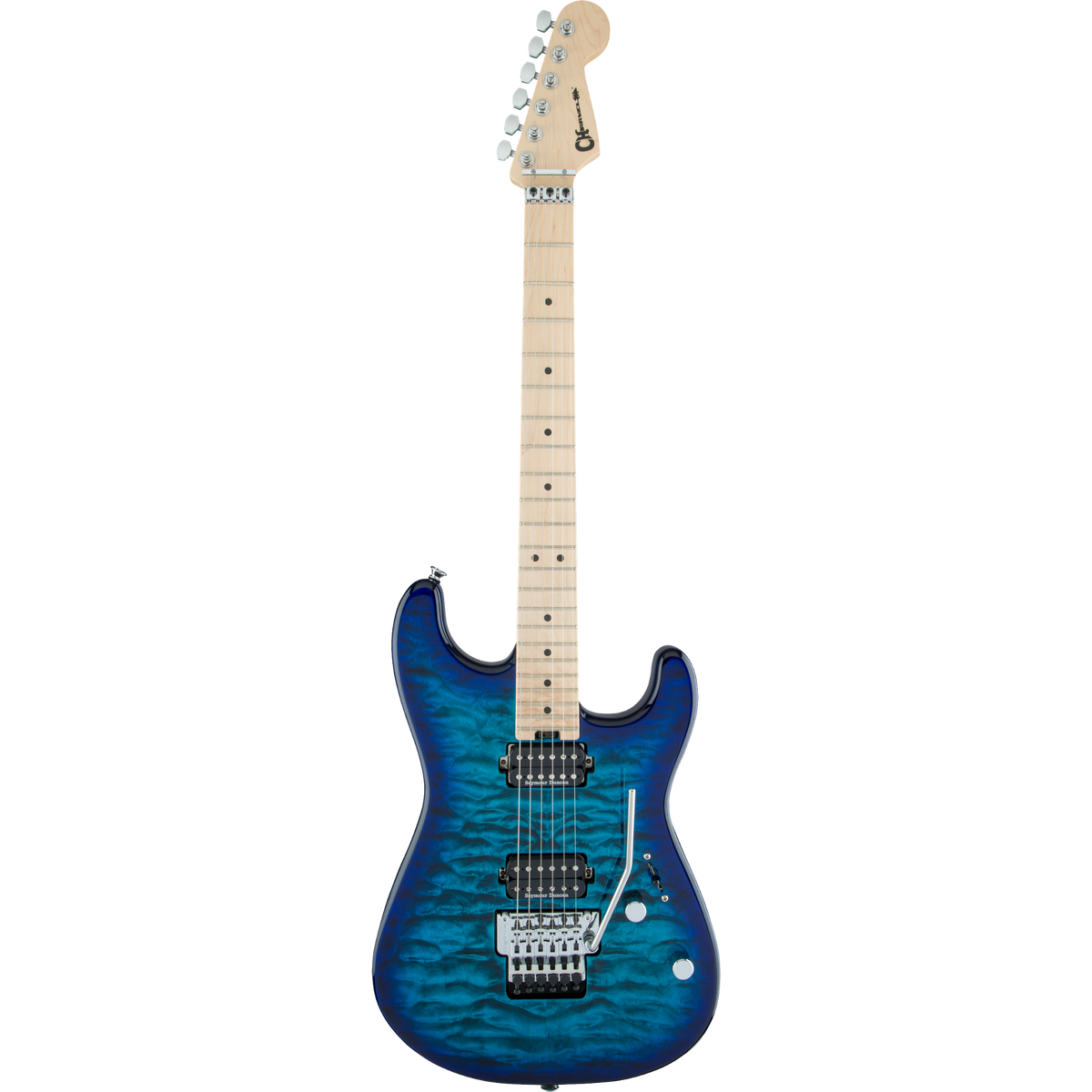

Charvel Pro-Mod San Dimas Style 1 HH FR M QM Electric Guitar - Chlorine Burst

The Charvel Pro-Mod San Dimas Style 1 HH FR M QM is Designed With Style in Mind

Its body is crafted from alder with a quilt maple top and is coupled with a bolt-on maple neck with a pair of graphite reinforcement rods to resist bending and warping under environmental stresses. The speed neck profile is designed for lightning fast playing and completely unhindered position shifts while the comfortably rolled fingerboard edges provide the broken-in feel of an instrument with plenty of playing miles on it, and plenty more to go. Its 12"-16" maple fingerboard hosts 22 jumbo frets and black dot inlays, and has a heel-mount truss rod adjustments for quick and convenient neck relief tweaks.

High-output Seymour Duncan® JB and Seymour Duncan '59™ humbucking pickups are directly mounted to the body, cranking out high octane rock 'n' roll tone with plenty of sweet overtones. The volume control conceals a push/pull coil split to have even more tonal variations on tap while the no-load tone control operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound, letting the full natural voice of the guitar shine through. Dive to rumbling depths or add a well-placed rising harmonic without sacrificing your tuning with the Floyd Rose® 1000 Series double-locking tremolo bridge system. A Charvel neck plate, sealed die-cast tuners and standard strap buttons complete the package.

SPECIFICATIONS

General

• Model Number: 2965131599
• Series: Pro-Mod
• Color: Chlorine Burst
• Number of Strings: 6
• Orientation: Right-Hand

Body

• Body Finish: Gloss
• Body Shape: San Dimas® Style 1
• Body Material: Alder
• Body Top: Quilt Maple

Neck

• Neck Material: Maple
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Neck Binding: None - Rolled Fingerboard Edges
• Scale Length: 25.5 inches / 648 mm
• Fingerboard Radius: 12 - 16 inch Compound Radius (305 - 406 mm)
• Fingerboard Material: Maple
• Number of Frets: 22
• Fret Size: Jumbo
• Nut Material: Floyd Rose® 1000 Series Locking
• Nut Width: 1.6875 inches / 43 mm
• Position Inlays: Black Dot
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• Truss Rod Wrench: Yes
• String Trees: Floyd Rose® Retainer Bar
• Headstock: Licensed Fender® Stratocaster®
• Neck Plate: 4-Bolt Serialized

Hardware

• Bridge: Floyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
• Hardware Finish: Chrome
• Tremolo Arm: Floyd Rose® 1000 Series Locking
• Tuning Machines: Charvel®-Branded Die-Cast
• Pickguard: None
• Control Knobs: Knurled Flat-Top
• Switch Tip: Black
• Strings: Nickel Plated Steel (.009 - .042 Gauges)
• Strap Buttons: Standard

Electronics

• Bridge Pickup: Seymour Duncan® JB™ TB-4
• Neck Pickup: Seymour Duncan® '59™ SH-1N
• Pickup Configuration: HH
• Pickup Color: Black
• Controls: Volume (Push/Pull Coil Split), No-Load Tone
• Pickup Switching: 3-Position Blade
• Position 1. Bridge Pickup; Bridge Outer Coil (Split Engaged)
• Position 2. Both Inner Coils; Both Outer Coils (Split Engaged)
• Position 3. Neck Pickup; Neck Outer Coil (Split Engaged)
