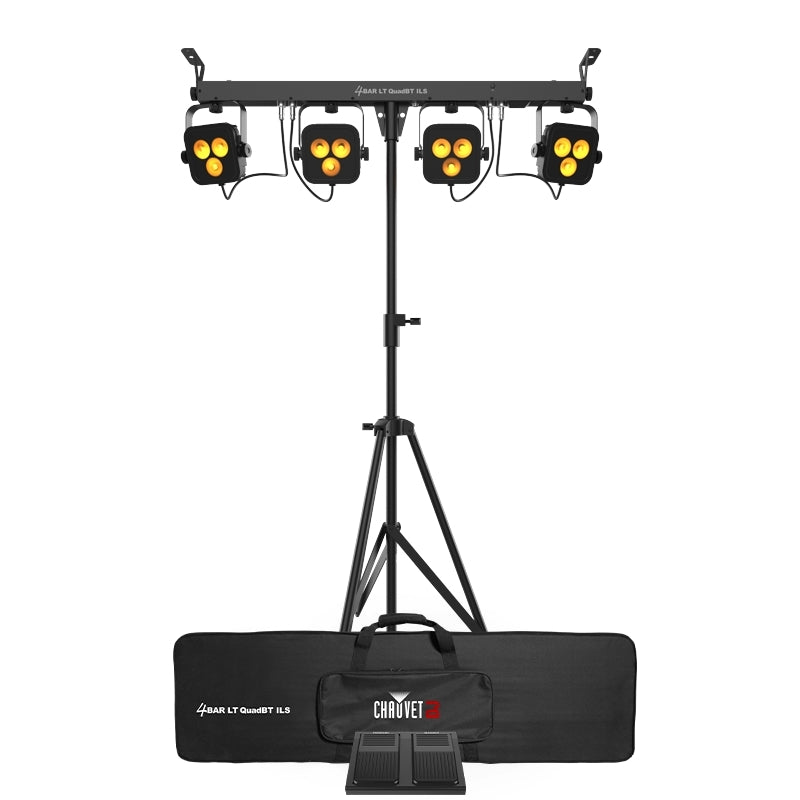

Chauvet DJ 4BAR LT QuadBT ILS Wash Lighting System

Illuminate Your Performance - The Chauvet DJ 4BAR LT QuadBT ILS Wash Lighting System

The ILS ecosystem grows with the addition of the Chauvet DJ 4BAR LT QuadBT ILS Wash Lighting System, a complete, pack-n-go wash lighting solution with built-in Bluetooth wireless technology. This quad-color (RGBA) fixture has 4 individually adjustable heads to achieve total room or stage coverage and the color-mixing power of amber LEDs. Easily set up and tear down in seconds with the included tripod, carry bags, and footswitch. Chauvet DJ 4BAR LT QuadBT ILS Wash Lighting System is compatible with D-Fi USB for wireless Lead/Follow or DMX programming. Chauvet DJ 4BAR LT QuadBT ILS Wash Lighting System ILS safely attaches to truss with built-in bolts, easily increasing mounting options.

• Complete wash lighting solution with built-in Bluetooth® wireless technology
• Control directly from a smart phone or tablet without any additional hardware
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless master/slave or DMX control
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
• Easily set up and tear down in seconds with the included tripod, carry bags and footswitch
• Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
• Achieve total room or stage coverage with 4 individually adjustable heads
• Out of the box wireless control with included footswitch or optional IRC-6 controller
• Sound-activated programs dance to the beat of the music

What's Included

• 4BAR LT QuadBT ILS
• Power cord
• Carrying bag
• Tripod
• Footswitch
• L-bracket
• Quick Reference Guide

SPECIFICATIONS

• DMX Channels: 4, 6 or 19
• DMX Connectors: 3-pin XLR
• Max Unobstructed Distance: 150 ft (25.7 m)
• Light Source: 12 LEDs (quad-color RGBA) 4 W, (2 A), 50,000 hours life expectancy
• Beam Angle: 12°
• Field Angle: 21°
• Operating Frequency: 2.4 GHz
• Illuminance: 2,162 lux @ 2 m (per pod)
• Power and Current
• 46 W, 0.6 A @ 120 V, 60 Hz
• 44 W, 0.3 A @ 230 V, 50 Hz
• Weight: 7.2 lb (3.3 kg)
• Size: 36.1 x 3.7 x 10.8 in (918.1 x 95 x 274.3 mm)
• Approvals: CE, FCC, RoHS, UKCA
• Stand Height: 50-83 in (127-211 cm)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Fits Tripod Sizes: 1 in (25.4 mm)
• Optional Controllers: IRC-6, BTAir
• Bluetooth Version: 4.2
