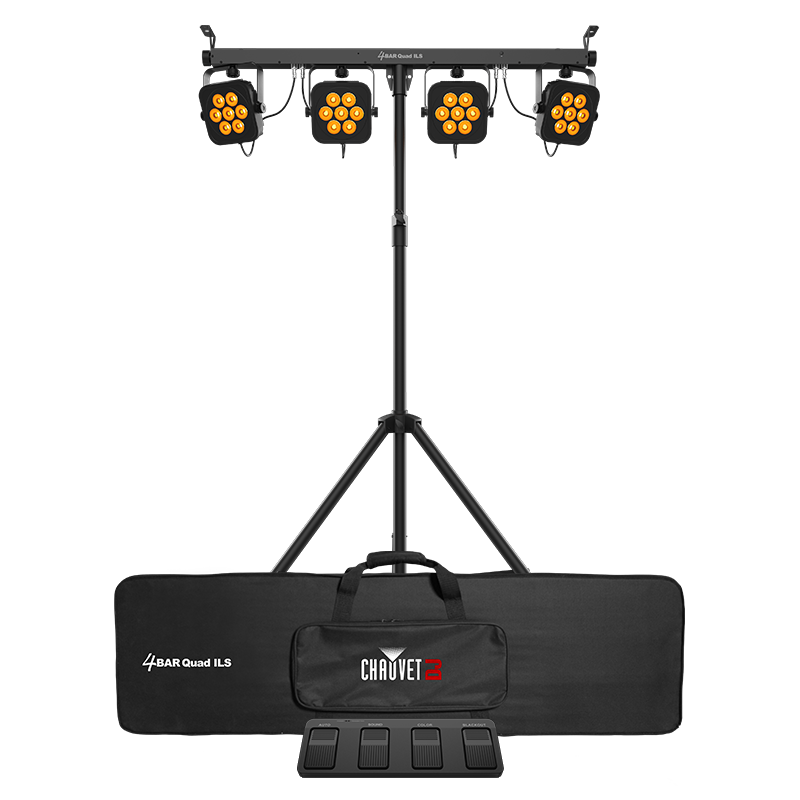

Chauvet DJ 4BAR Quad ILS 4 x RGBA PAR System with Stand

Get No Hassle Lighting - The Chauvet DJ 4BAR Quad ILS 4 x RGBA PAR System with Stand

4BAR Quad ILS is a complete wash lighting solution fitted with high-intensity quad-color (RGBA) LEDs that can be controlled wirelessly out of the box via the included footswitch or optional IRC-6 controller. But for real convenient control, compatibility with ILS which makes creating coordinated light shows across different fixture types easy as 1, 2, 3. Generate natural, warm color temperatures with punchy amber and achieve total area coverage by individually positioning the 4 adjustable pods. 4BAR Quad ILS is compatible with D-Fi USB for wireless Master/Slave or DMX programming. A convenient tripod and carry bag are included for effortless setup and quick tear down. 4BAR Quad ILS safely attaches to truss with built-in bolts, easily increasing mounting options.

• Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
• LS compatibility for use in the ILS ecosystem
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
• Out of the box wireless control with included footswitch or optional IRC-6 controller
• Easily set up and tear down in minutes with the included tripod stand and carrying bags
• D-Fi™ USB compatibility for wireless Master/Slave or DMX control
• Achieve total room or stage coverage with 4 individually adjustable heads
• Increase mounting options by safely mounting to truss using built-in bolts

SPECIFICATIONS

• DMX Channels:4, 6 or 19
• DMX Connectors:3-pin XLR
• Light Source:28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
• Strobe Rate:0 to 20 Hz
• Beam Angle:14°
• Field Angle:23°
• Illuminance:2,353 lux @ 2 m (per pod)
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 80 W, 1.2 A @ 120 V, 60 Hz 78 W, 0.6 A @ 230 V, 50 Hz
• Weight:12.2 lb (5.5 kg)
• Size:45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
• Approvals:CE, RoHS, UKCA
• Operating Frequency (D-Fi): : 2.412 to 2.484 GHz
• Operating Frequency (foot switch): : 433 MHz
• Max Unobstructed Distance (foot switch): : 100 ft (30.5 m)
• Footswitch battery: : 9 V
• Stand Height: : 7 ft 4 in (2.2 m)
• Fits Tripod Sizes: : 1.5 in (36.80 mm)
• Bracket Mounting Hole: : M10 (1.5 mm pitch)
• Weight (Controller): : 1.2 lb (0.6 kg)
• Size (Controller): : 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
• Optional Controllers: : IRC-6, D-Fi USB

Included

• 4Bar Quad ILS
• Power cord
• Carrying bag
• Tripod
• Tripod Carry bag
• Wireless Footswitch
• Quick Reference Guide
