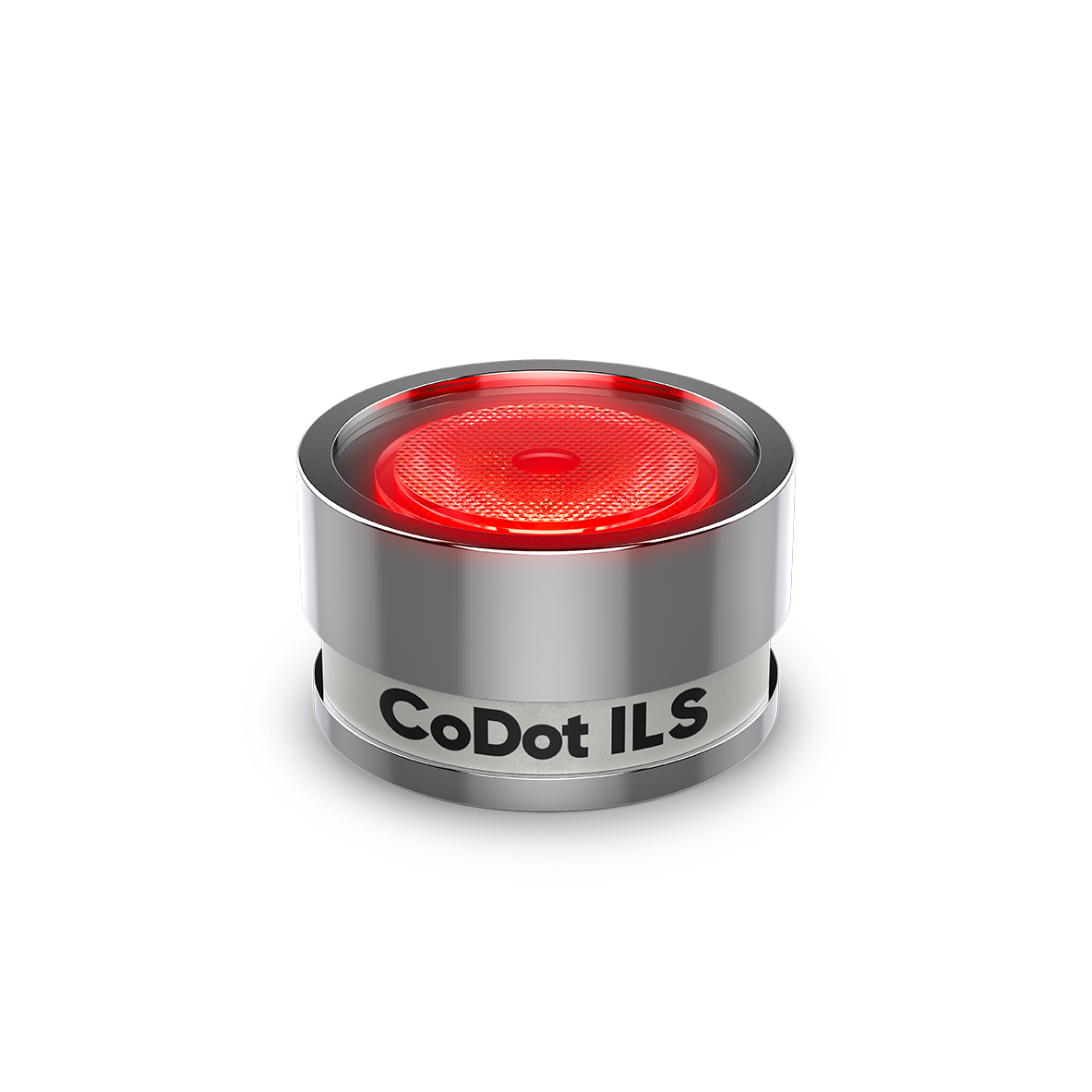

Chauvet DJ Codot ILS

Illuminate Your World with Precision and Portability - Chauvet DJ Codot ILS

Light up even the most challenging spaces with our 4-pack of coin-sized LED illuminators, expertly designed for applications where traditional fixtures simply won’t fit. Each compact LED unit is equipped with over 15 accessories, including eight lenses (four clear and four diffused) to match your lighting needs perfectly. A magnetic base allows for effortless mounting on metal surfaces, while the threaded insert is compatible with camera tripods, offering a variety of setup options.

Engineered with wireless functionality, the illuminators feature a built-in DFI transceiver for seamless DMX or ILS signal communication, and an RF receiver compatible with RFC and RFC-XL remotes, putting total control right at your fingertips. Enjoy smooth integration with the ILS ecosystem, adding even more versatility to your lighting setup. Power linking is made simple with USB-C in and out ports, enabling you to connect multiple units as needed. Plus, with an intuitive LED display, adjusting functions is quick and easy on the go. This complete kit also includes a carrying case, three short USB-C cables, three long USB-C cables, and an external power supply, giving you the power to create the perfect lighting environment no matter where you are.

• 4-pack of coin-sized LED illuminators that comes with over 15 accessories (1 carrying case, 8 lenses: 4 clear/4 diffused, 3 short USB-C cables, 3 long USB-C cables, 1 external power supply)
• Coin-sized LED illuminator designed for small applications where conventional fixtures won’t fit
• Includes two lens options to meet different application criteria
• Magnetic base easily mounts to metal surfaces
• Threaded insert is compatible with camera tripods and accessories
• ILS compatibility for use in the ILS ecosystem
• Built-in DFI transceiver communicates DMX or ILS signals wirelessly
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• Easy navigation and access all functions directly from the LED display
• Power linking multiple units from the USB type-C in and out

SPECIFICATIONS

• DMX Channels: 4 or 6
• Light Source: 1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle (installed lens): 19°
• Beam Angle (included lens): 14°
• lluminance (installed lens): 256 lux @ 2 m
• Illuminance (included Lens): 442 lux @ 2 m
• Max Unobstructed Distance: 600 ft (183 m)
• Operating Frequency: 2.4 GHz
• Power Linking: 4 units @ 120 V; 4 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 7 W, 0.1 A @ 120 V, 60 Hz
• Power and Current: 7 W, 0.1 A @ 230 V, 50 Hz
• Weight: 0.2 lb (0.1 kg)
• Size: 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)
• Optional Controllers: ILS Command, RFC, RFC-XL
• Approvals: CE, ROHS, UKCA, FCC
