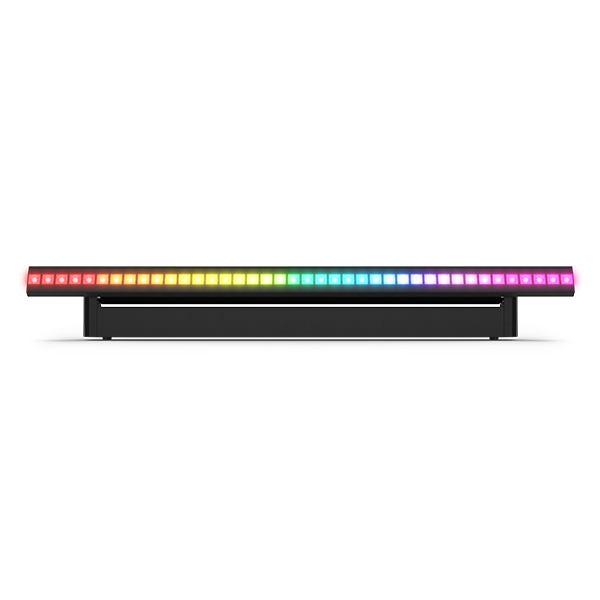

Chauvet DJ COLORband Spectra ILS Motorized Pixel-Mapping Strip Light

Animate Your Space with the Chauvet DJ COLORband Spectra ILS Motorized Pixel-Mapping Strip Light

Don’t just light a space—animate it. COLORband Spectra ILS is a low-profile motorized strip light designed to blend into your setup until it lights up and takes over with sweeping motion, bright blinder bursts, wall-wash coverage, and eye-catching pixel chases. With 40 mappable LEDs and a wide 180° tilt range, you can paint elegant, tunable warm white or hit the room with vibrant color and high-energy movement. Built for modern event production, it also integrates seamlessly with ILS so you can trigger synchronized shows across your CHAUVET DJ rig with fewer cables and faster setup.

• Motorized strip light creates dynamic sweeping effects and works as a pixel-mapping effect, blinder, or wall-washer
• 40 individually mappable LEDs for pixel chases and animated patterns
• 180° tilt range for flexible aiming and creative motion looks
• Quad-color LEDs (RGB+WW) for vibrant color plus tunable warm white
• ILS compatibility for synchronized light shows across compatible fixtures
• Multiple control options: DMX, ILS, RF, or master/slave
• D-Fi USB compatible for wireless DMX or wireless master/slave control
• 3-pin and 5-pin DMX connections for flexible system integration
• powerCON®-compatible power in/out for easy power linking
• Fits best in the CHS-60 VIP Gear Bag

From wedding uplighting to club-style movement and rooftop party energy, COLORband Spectra ILS gives you a single fixture that can do multiple jobs—then adds motorized motion and pixel-level control to push your looks further. Build smooth, elegant color washes, snap into bold blinder hits, or run fast pixel chases that move with the music—all while keeping your rig tightly synchronized through ILS.

SPECIFICATIONS

• DMX Channels: 6, 11, 17, 19, or 164
• DMX Connectors: 3-pin and 5-pin XLR
• Pan and Tilt: 180° (tilt)
• Light Source: 40 LEDs (quad-color RGB+WW), 0.7 A, 50,000-hour life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 15°
• Field Angle: 26°
• Illuminance: 3,872 lux @ 2 m
• Lumens: 1,938
• Color Temperature Range: 3,000K–14,000K
• Power Linking: 9 units @ 120 V; 16 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 86 W, 1.3 A @ 120 V, 60 Hz
  • 72 W, 0.8 A @ 230 V, 50 Hz
• Weight: 10 lb (4.6 kg)
• Size (L x W x H): 39.4 x 2.4 x 5.6 in (1000 x 60 x 142 mm)
• Approvals: CE, ROHS
• Optional Controllers: RFC, RFC-XL, ILS Command
