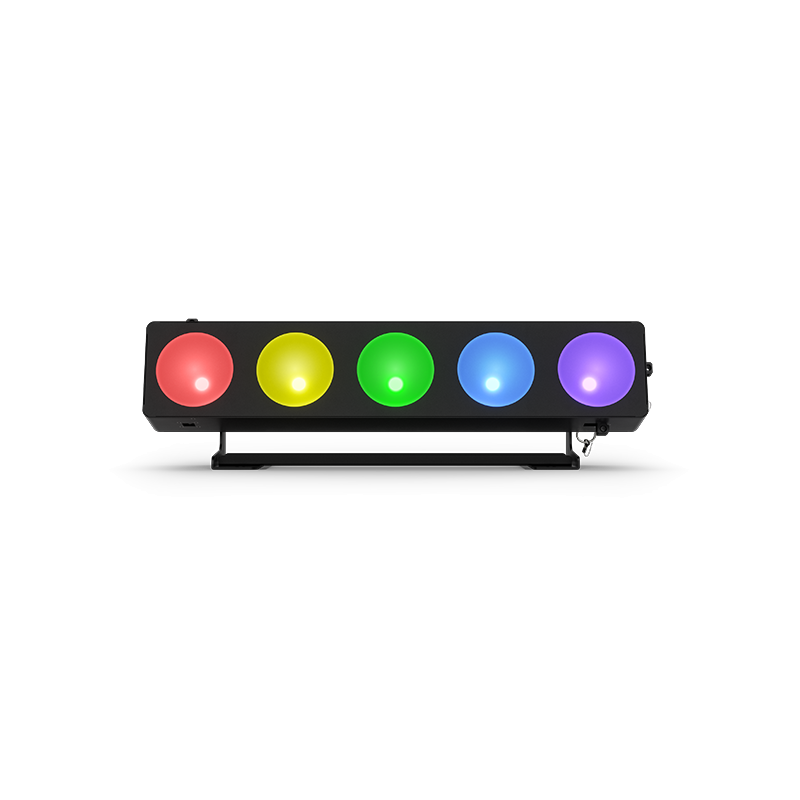

Chauvet DJ Core 5x1 ILS LED Multi-Purpose Effect Light

Get Bold Color and Versatile Effects with the Chauvet DJ Core 5x1 ILS LED Multi-Purpose Effect Light

Core 5x1 ILS projects smoothly saturated color with COB technology and a large reflector design that is ideal for bringing more natural color tones to live setups. This versatile fixture can function as a pixel-mapping effect, chase effect, blinder, or wash light, giving you flexible creative options for stages, runways, uplighting, and mobile event productions.

• Multi-purpose effect light functions as a pixel-mapping effect, chase effect, blinder, or wash light
• Attach multiple fixtures together using the built-in toolless connecting hardware
• ILS compatibility for use in the ILS ecosystem with D-Fi USB sold separately
• Connect up to 6 fixtures together vertically using the toolless linking hardware
• Generates a broad spectrum of colors and achieves natural-looking color temperatures with COB technology
• Built with a robust housing to withstand the demands of frequent transport and gig use
• Offers multiple control options, including stand-alone, DMX, ILS, RF, or master/slave

Floor mount Core 5x1 ILS for smooth uplighting or combine multiple fixtures together for high-impact pixel-mapped looks, runway chase effects, blinder bursts, or broad color washes. With flexible linking options and powerful output, it is designed to adapt easily to a wide range of professional lighting applications.

SPECIFICATIONS

• DMX Channels: 4, 8, or 22
• DMX Connectors: 3- and 5-pin XLR
• Light Source: 5 LEDs (quad-color RGB+WW) 35 W, 1.2 A, 50,000-hour life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 54°
• Field Angle: 75°
• Illuminance: 953 lux @ 2 m
• Lumens: 2,875
• Power Linking: 6 units @ 120 V; 10 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 120 W, 1.8 A @ 120 V, 60 Hz
• Power and Current: 113 W, 1.1 A @ 230 V, 50 Hz
• Weight: 11 lb / 5 kg
• Size: 23.6 x 3.1 x 4.7 inches / 600 x 79 x 120 mm
• Approvals: CE, RoHS
• Cable Length: 5 ft / 1.52 m
• Bracket Mounting Hole: 13 mm
• Optional Controllers: ILS Command, RFC, RFC-XL
• What’s Included: Core 5x1 ILS, power cord, Quick Reference Guide
