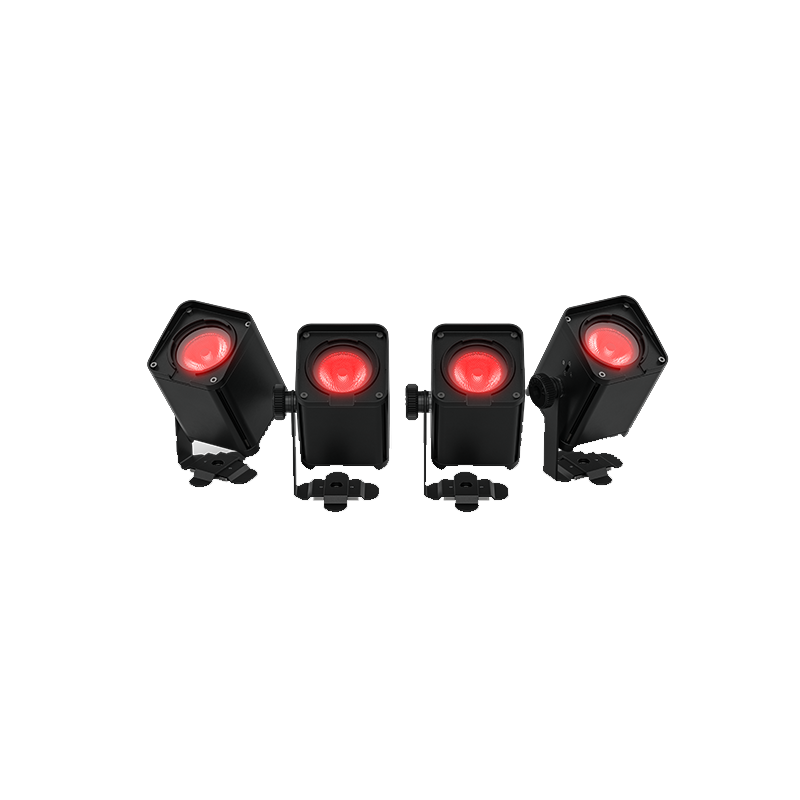

Chauvet DJ Freedom H1 IP ILS X4 LED Wash Light System

Go Wireless Outdoors with the Freedom H1 IP ILS X4 LED Wash Light Kit

Enjoy complete wireless freedom in a tiny package with this four-pack kit of ultra-compact outdoor-rated RGBAW+UV LED wash lights ready to go anywhere, indoors or out. Battery-operated Freedom H1 IP ILS X4 fixtures put a versatile tool for accent lighting in the palm of the hand along with a beam angle wide enough for perfect uplighting and downlighting looks. Run up to 8 hours at full output or 20 hours with a single color after each charging session with the included multi-charger. Easily attach their magnetic base to most metal surfaces and choose the control that suits the setup with built-in D-Fi transceiver, RF receiver, and OLED digital display.

• Outdoor-rated, palm-sized wash light perfect for highlighting small subjects
• Sold as a complete kit with 4 fixtures, multi-charger, and RFC remote
• Robust housing repels Mother Nature for temporary outdoor situations
• Accessory kit includes a round dome, square top, and white sleeves sold separately
• OLED display allows for full-text and easily changeable fixture settings
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• Built-in D-Fi transceiver wirelessly communicates with other D-Fi-enabled devices
• Magnetic base to easily mount the product to most metal surfaces

SPECIFICATIONS

General

• Product Type: LED wash light kit
• Fixture Type: Outdoor-rated RGBAW+UV LED wash light
• DMX Channels: 6, 8, or 12
• IP Rating: IP54
• Approvals: CE, ROHS, FCC

Light Source

• Light Source: 1 LED, hex-color RGBWA+UV
• LED Power: 10 W
• LED Current: 3 A
• Life Expectancy: 50,000 hours
• Strobe Rate: 0 to 20 Hz

Optical

• Beam Angle: 23°
• Field Angle: 44°
• Illuminance: 168 lux @ 2 m
• Lumens: 137

Wireless

• Operating Frequency: 2.412 to 2.484 GHz
• Max Unobstructed Distance: 600 ft / 183 m

Power

• Input Voltage: 5 VDC, 1.5A external power supply
• Power and Current 120 V, 60 Hz: 13 W, 0.3 A
• Power and Current 230 V, 50 Hz: 13 W, 0.2 A

Battery

• Maximum Run Time, All On: Up to 8 hours
• Maximum Run Time, Single Color: Up to 20 hours
• Recharge Time: 6 hours

Temperature

• Startup Temperature: -4 °F to 113 °F / -20 °C to 45 °C
• Operating Temperature: -22 °F to 113 °F / -30 °C to 45 °C

Mounting

• Bracket Mounting Hole: M12
• Mounting Base: Magnetic base

Dimensions

• Fixture Size: 3 x 3 x 4.2 inches / 75 x 75 x 107 mm

Weight

• Fixture Weight: 1.6 lb / 0.7 kg

Optional Controllers

• Optional Controllers: RFC, RFC-XL, FREEDOM Connect
