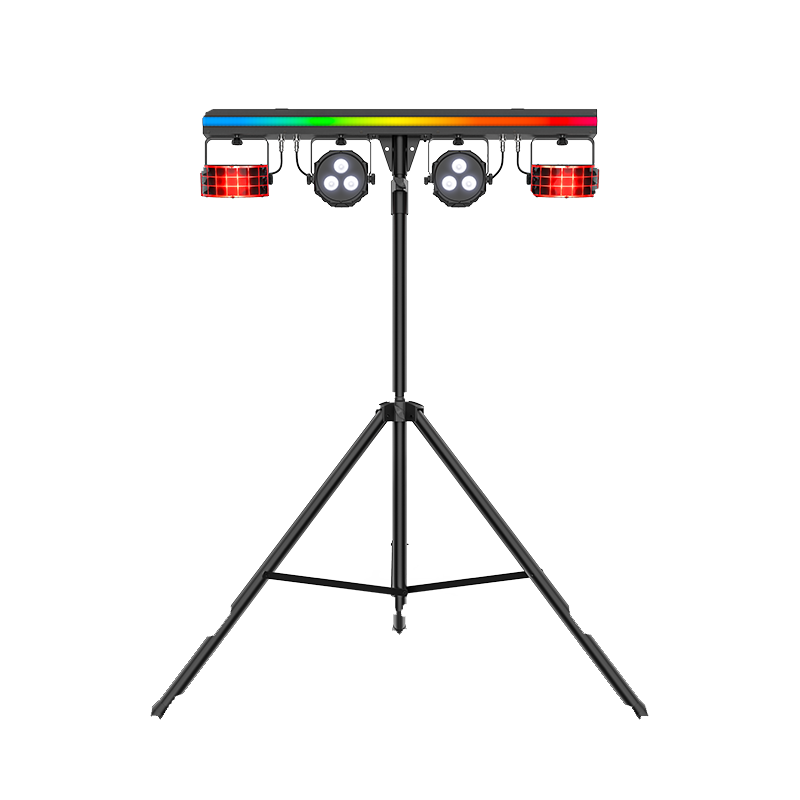

Chauvet DJ GigBar 3 ILS 3-in-1 LED Lighting System with Stand and Bag

Bring the Party to Life with the Chauvet DJ GigBar 3 ILS 3-in-1 LED Lighting System with Stand and Bag

GigBar 3 ILS brings on the good times fast with Instant Light Show technology that wirelessly syncs multiple fixtures of different types. Get in and out quickly, and spend less time on setup, with an ILS-compatible 3-in-1 pack-n-go kit that comes with tripod, wireless footswitch and carry bags. GigBar 3 ILS includes an LED strip for eye-candy effects, LED pars for color wash coverage, and LED derbies that send multicolored chasing beams across the dancefloor. Add up to 4 additional fixtures to create your own custom mobile lighting setup.

• 3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar
• Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups
• ILS compatibility for use in the ILS ecosystem
• Create the ultimate light show by mounting up to 4 additional fixtures to the top of the GigBar 3 ILS
• Reversible tripod bracket allows for upside down mounting
• Easy navigation and access all functions directly from the full-color LCD display
• Get in and get out quickly with the included tripod, wireless footswitch, and free carry bags
• Phenomenal, built-in, automated, and sound-activated programs that include all 3 effects to make one complete show
• Easy control from the display, included RF Remote, wireless foot switch or DMX to take your gig to a higher level
• Save time running cables and extension cords by power linking multiple units

SPECIFICATIONS

General

• DMX Channels: 2, 21, or 132
• DMX Connectors: 3-pin XLR
• Strobe Rate: 0 to 20 Hz
• Operating Frequency: 2.412 to 2.484 GHz
• Power Linking: 11 units 120 V; 18 units 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Approvals: CE, RoHS, FCC
• Optional Controllers: ILS Command, RF Remote

Power and Current

• 120 V, 60 Hz: 47 W, 0.7 A
• 230 V, 50 Hz: 45 W, 0.4 A

Dimensions and Weight

• Weight: 13.2 lbs. (6 kg)
• Size: 41.2 x 3.7 x 10.7 inches (1047 x 94.5 x 272 mm)
• Cable Length: 9 ft (2.844 m)

Light Source (Pars)

• LEDs: 6 LEDs (quad-color RGB + UV)
• Power: 3.7 W (1 A)
• Life Expectancy: 50,000 hours
• Beam Angle: 13°
• Field Angle: 24°

Light Source (LED Strip)

• LEDs: 74 LEDs (red, green, blue)
• Power: 5 W (0.03 A)
• Life Expectancy: 50,000 hours
• Coverage Angle: 174°

Light Source (Derby)

• LEDs: 6 LEDs (2 red, 2 green, 2 blue)
• Power: 3 W (0.6 A)
• Life Expectancy: 50,000 hours
• Coverage Angle: 114°

Tripod

• Stand Height: 4.8 ft to 7.8 ft (1.5 to 2.4 m)
• Tripod Leg Width: 3.9 ft (1.2 m)
• Fits Tripod Size: 1.5 inches (37.4 mm)

Wireless Footswitch

• Operating Frequency: 433 MHz
• Max Unobstructed Distance: 100 ft (30.5 m)
• Battery: 9 V 300 mA
