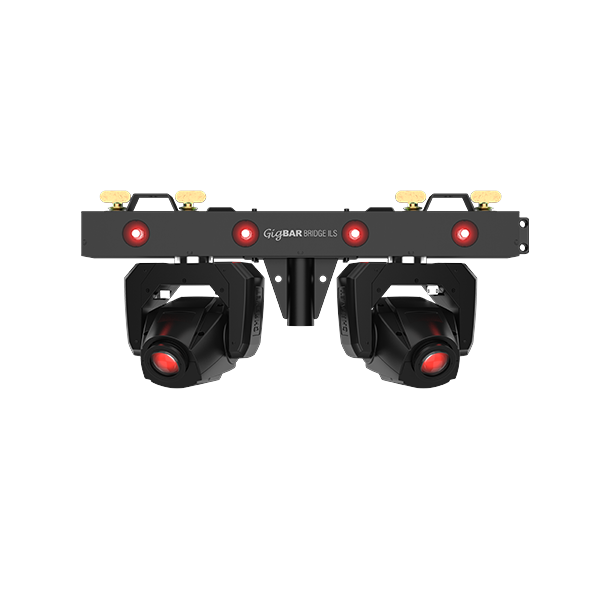

Chauvet DJ GigBAR Bridge ILS 2-in-1 LED Lighting System

Create Big Dancefloor Moments with the CHAUVET DJ GigBAR Bridge ILS

Enjoy a customizable party lighting setup that suits your needs with the connectable GigBAR Bridge ILS. This 2-in-1 lighting system keeps setup fast and clean, with moving heads and wash lights pre-mounted on a single bar. With ILS compatibility, building coordinated light shows across different fixture types is easy, while the built-in locking system lets you quickly and securely connect multiple units for bigger looks.

• 2-in-1 lighting system with moving heads and washes pre-mounted on a single bar
• Built-in locking system for quick, secure multi-fixture connections
• Built-in DFI transceiver wirelessly communicates DMX or ILS signals
• Removable bracket for safe mounting to truss or mobile tripods
• Full-color LCD display for easy navigation and quick access to functions
• Moving heads feature separate color and gobo wheels for creative programming
• Totem Mode keeps moving heads focused on the dance floor
• Power link multiple units to reduce cable and extension cord runs
• ILS compatibility for use within the ILS ecosystem
• Included RF remote triggers built-in shows without needing line of sight

SPECIFICATIONS

• DMX Channels: 3, 16, or 46
• DMX Connectors: 3-pin XLR
• Strobe Rate: 0 to 20 Hz
• Operating Frequency: 2.4 GHz
• Power Linking: 8 units @ 120 V; 13 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 191 W, 1.5 A @ 120 VAC, 60 Hz
• Power and Current: 175 W, 1 A @ 230 VAC, 50 Hz
• Weight: 18.6 lbs (8.4 kg)
• Size: 26 x 2.8 x 12 in (660 x 71 x 305 mm)
• Colors (moving head): 9 + open, split colors, continuous scroll at variable speeds
• Gobos (moving head): 9 + open, continuous scroll at variable speeds
• Light Source (moving head): 1 LED (cool white) 40W (3A), 50,000 hours life expectancy
• Light Source (wash): 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy
• Beam Angle (wash): 22°
• Field Angle (wash): 38°
• Illuminance (moving head): 6,594 lux @ 2 m (per head)
• Illuminance (wash): 375 lux @ 2 m (per section)
• Max Unobstructed Distance (D-Fi): 600 ft (183 m)
• Fits Tripod Sizes: 1.5 in (37.4 mm)
• Optional Controllers: RF, Footswitch, ILS Command
• Approvals: CE, RoHS, FCC

WHAT'S IN THE BOX

• GigBAR Bridge ILS
• Power Cable
• 2 Hanging Brackets
• RF Remote
• Quick Reference Guide
