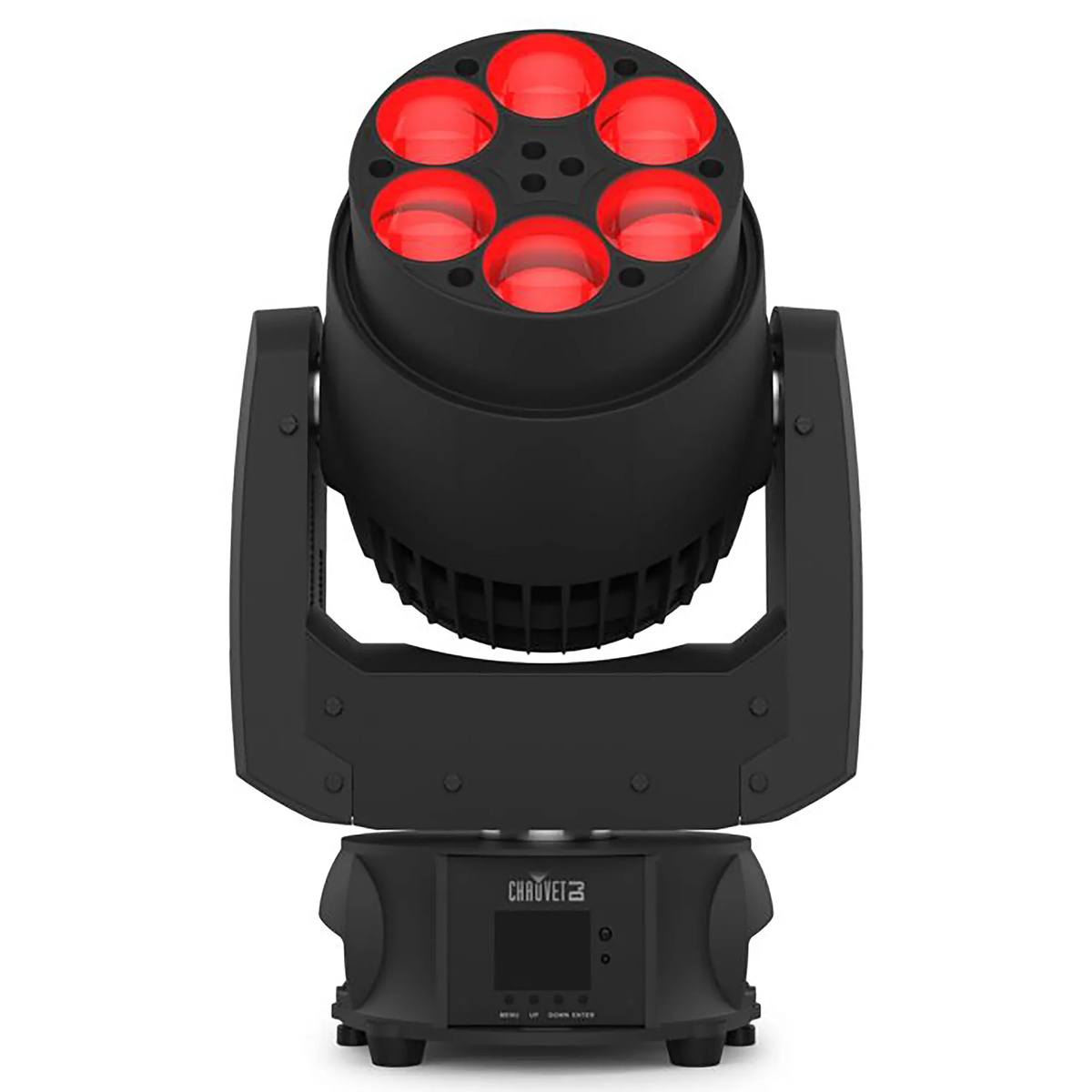

Chauvet DJ Intimidator Trio XD RGBW LED Moving Head Fixture

Control RGBW Moving Effects with the Chauvet DJ Intimidator Trio XD RGBW LED Moving Head Fixture

The Chauvet DJ INTIMTRIOXD is a moving head lighting fixture with 6 quad-color RGBW LEDs, 16/23/52-channel DMX control, 540° pan, 270° tilt, and a 3° to 22° zoom angle.

• 6 quad-color RGBW LEDs with 50,000 hours life expectancy
• 16, 23, or 52 DMX channels
• 3- and 5-pin XLR DMX connectors
• 540° pan and 270° tilt
• 3° to 22° zoom angle
• 0 to 20 Hz strobe rate
• Auto-ranging 100 to 240 VAC, 50/60 Hz input voltage
• Optional RFC and RFC-XL controllers

SPECIFICATIONS

Control

• DMX Channels: 16, 23, or 52
• DMX Connectors: 3- and 5-pin XLR
• Optional Controllers: RFC, RFC-XL

Movement

• Pan and Tilt: 540° / 270°
• Pan Ranges: 180°, 360°, 540°
• Tilt Ranges: 90°, 180°, 270°

Light Source

• Light Source: 6 quad-color RGBW LEDs, 270 W, 9.5 A
• Life Expectancy: 50,000 hours
• Strobe Rate: 0 to 20 Hz
• Zoom Angle: 3° to 22°

Optics

• Illuminance Narrow: 124,299 lux at 2 m, 3°
• Illuminance Wide: 7,505 lux at 2 m, 22°

Power

• Input Voltage: 100 to 240 VAC, 50/60 Hz, auto-ranging
• Power Linking: 4 units at 120 V, 8 units at 230 V
• Power and Current: 348 W, 2.9 A at 120 V, 60 Hz
• Power and Current: 343 W, 1.5 A at 230 V, 50 Hz
• Cable Length: 5 feet / 1.5 m

Dimensions

• Size: 12.6 x 8.7 x 17 inches / 320 x 220 x 431 mm

Weight

• Weight: 20.4 lb / 9.3 kg

Approvals

• Approvals: CE, FCC, MET
