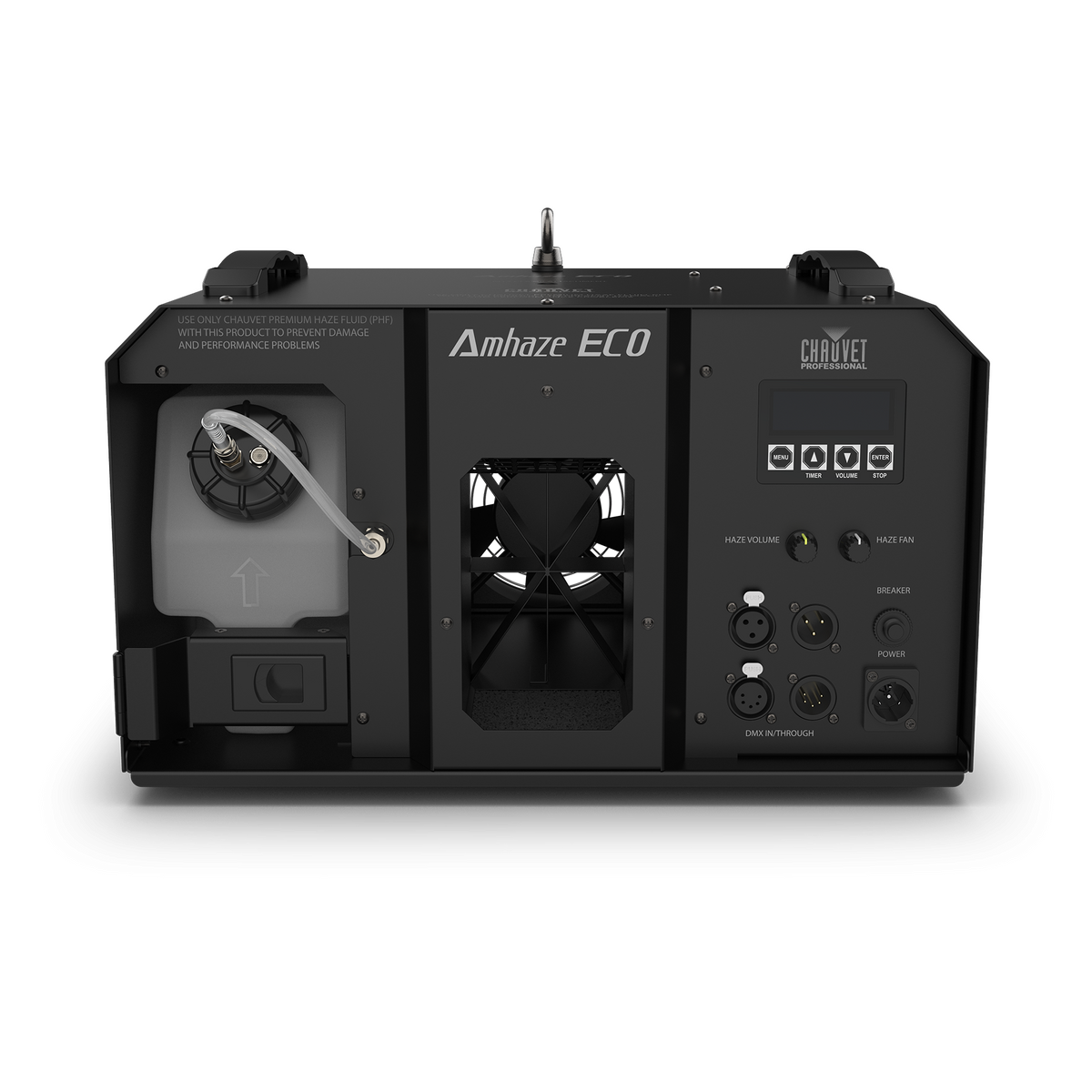

Chauvet Professional Amhaze ECO Water Haze Machine

Get Continuous Haze Output with the Chauvet Professional Amhaze ECO Water Haze Machine

A professional, water-based haze machine designed for high-output, continuous operation with efficient fluid consumption and versatile DMX or manual control. This unit provides a complete atmosphere solution for medium to large venues such as theaters, concert halls, and event productions requiring floor-based or truss-mounted operation.

• Reaches operational temperature in 30 seconds for rapid deployment on demand.
• Produces a consistent 120 cfm of haze with no reheating downtime.
• Maximizes uptime with over eight hours of run time per fluid container.
• Supports 3-channel DMX and RDM protocols for flexible system integration.
• Features M12 threaded inserts for easy and secure mounting to any truss system.
• Includes an automatic low-fluid shutdown to protect the pump from damage.

Amhaze Eco is a professional water-based haze machine that delivers high output while utilizing economic fluid consumption. With a rapid 30-second heat up time, and continuous output that doesn’t require any reheating, you can quickly get the maximum output of 120 cfm with a single fluid container lasting you over 8 hours. Easily control the output and fan speed via DMX or on the onboard control knobs. Amhaze Eco comes ready to rest on the floor and is also equipped with M12 threaded inserts for truss clamps, an easy way to mount the 25lb machine. Amhaze Eco combines high output with efficient operation for a complete atmosphere solution for medium to large venues.

Professional Haze Generation

This is a professional-grade machine designed to create a fine, water-based haze effect.

Rapid Heat Up Time

A 30-second heat-up time means the machine is ready for operation almost instantly.

Uninterrupted Continuous Output

The machine can produce haze continuously without any need to stop and reheat.

Tour Ready Construction

Features an M12 threaded insert for easy and secure mounting to truss systems.

Efficient Fluid Consumption

Operates for over eight hours on a single container of fluid for extended use.

Precise Haze Control

Adjust the haze output and blower speed continuously using either DMX or the manual control knobs.

SPECIFICATIONS

Dynamic Effects

• Fan Speed: 120 cfm
• Low Fluid Shutdown: Yes

Construction and Physical

• Dimensions: 15.86 in (403 mm) x 12.20 in (310 mm) x 10.07 (256 mm)
• Dimensions (Shipping Size): 20.27 x 16.53 x 12.80 in (515 x 420 x 325 mm)
• Weight: 25 lb (11.4 kg)
• Shipping Weight: 28.8 lb (13.5 kg)
• Threaded Bolt: M12
• Exterior Color: Black
• Tank Capacity: 0.92 gal (3.5L)
• Fluid Consumption: 7.5 ml/min (0.12 gallons/hour)
• Maximum Run Time: >7.5 hours @ full volume
• Mounting Options: Rest on the floor or mount in the rig with the M12 threaded insert for truss clamps

Connections

• Power Connection: Edison (local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR
• Cable Length (Power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 3
• Modes/Personalities: 1 personality
• On-Board Control: Yes

Electrical

• Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
• Power and Current: 1,230 W, 10.25 A @ 120 V, 60 Hz
• Power and Current: 2,430 W, 10.56 A @ 230 V, 50 Hz
• Heat-up Time: 30 sec

Certifications and Qualifications

• Certifications: MET, CE
• MET Listing Number: E115095
• US Safety: UL 499
• Canadian Safety: CSA C22.2 No. 64-10
• IP Rating: IP20, dry location
• Minimum Distance from Flammable Material to All Exterior Surfaces of the Product: 3.3 ft (1 m)
• Maximum Exterior Surface Temperature (Tc): 127 °F (53 ℃)
