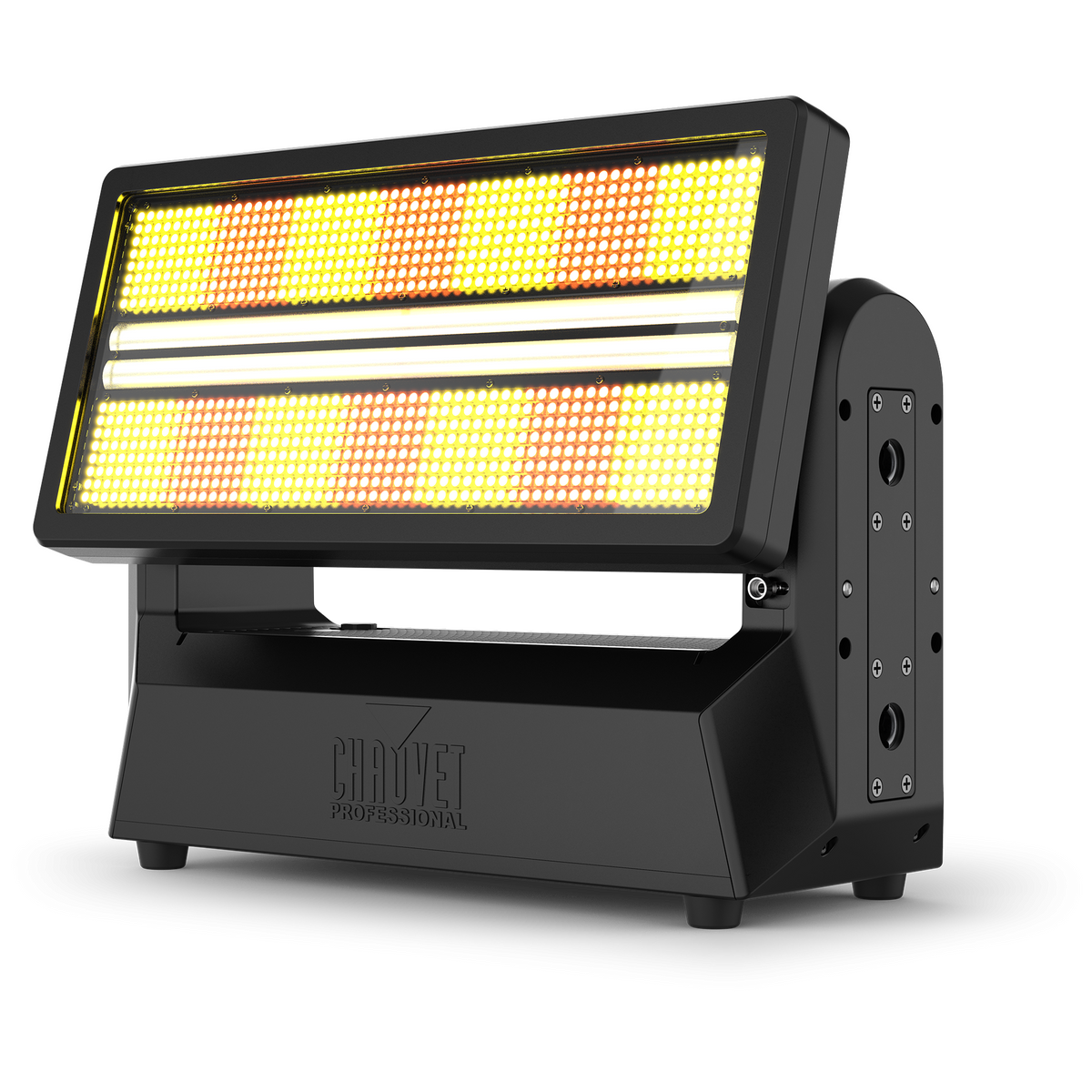

Chauvet Professional Color STRIKE M Motorized Strobe and Wash

Create Dynamic Arrays with the Chauvet Professional Color STRIKE M Motorized Strobe and Wash

An IP65-rated motorized strobe and wash fixture that combines two ultra-bright white tube elements with a surrounding color-mixing, pixel-mappable face and a 180° tilt range for versatile, high-impact lighting effects. Perfect for creating massive linear arrays and dynamic visual displays for concerts, festivals, and touring productions requiring powerful and weather-resistant strobe and wash effects.

• Features two powerful, cool-white LED tube elements surrounded by a vibrant, color-mixing plate.
• Offers extensive pixel-mapping control over 14 RGB zones and 28 individual strobe sections.
• Housed in a rugged, IP65-rated enclosure for reliable all-weather performance.
• Supports DMX, Art-Net, and sACN protocols for seamless professional system integration.
• Simplifies large-scale arrays with integrated alignment pins for precise, seamless fixture linking.
• A 180° motorized tilt range directs wide-angle wash and strobe effects with precision.

Color STRIKE M is an IP65 rated motorized strobe/wash with two ultra-bright, white light tube elements surrounded by an electrifying, color-mixing, and pixel-mappable face. This versatile strobe light can double as a wash fixture with 180° tilt range to throw bright saturated color wherever you need. The IP65 casing protects the fixture from any environmental factors or weather and has two omega-bracket attachments so you can mount the fixture horizontally or vertically without any hassle. Multiple programming personalities give you a varying amount of control from simple set ups with a multitude of built-in effects, or wider control options to take advantage of the pixel-mappable zones: 14 in the RGB face and 28 in the two tube elements. Built-in alignment pins insure perfectly straight linear arrays to create massive arrangements. DMX, Art-net, and sACN control.

Tilting Hybrid Strobe and Wash

A high-power fixture combines strobe and wash effects with a 180-degree tilting head for dynamic positioning.

All-Weather IP65 Rating

Ensures reliable performance in any environment, making it suitable for all-weather outdoor use.

Extensive Pixel Control

Features 14 controllable RGB sections and 28 white strobe sections for creating detailed visual effects.

Versatile Rigging Options

A repositionable yoke with quarter-turn adaptors offers creative mounting in horizontal or vertical orientations.

Built-In Effect Macros

Includes a multitude of pre-programmed effects with adjustable parameters for quick and easy setup.

Flexible Control Protocols

Supports DMX, ArtNet, and sACN to seamlessly integrate into any professional lighting system.

Easy-to-Use OLED Display

Provides a clear and simple interface for on-board fixture configuration and settings adjustments.

Rugged Design

Engineered for years of rough use and reliable performance in the most extreme conditions.

Advanced System Flexibility

Offers adjustable Pulse Width Modulation (PWM) and Remote Device Management (RDM) for added control.

USB Software Updates

A convenient USB port allows for simple fixture software updates to add new features and improvements.

Integrated Alignment Pins

Ensures multiple units can be linked together to form perfectly straight linear arrays.

SPECIFICATIONS

Optical

• Light Source: 896 LEDs (tri-color) SMD 5050, 0.784 W, (252 mA), 50,000 hours life expectancy
• Light Source: 432 LEDs, (CW) 1.56 W, (696 mA), 5861K, 50,000 hours life expectancy
• Color Temperature (at Full): 7757 K
• CRI: 90.3
• Lumens (Combined): 71,620
• Lumens (Plate): 18,600
• Lumens (Beam): 54,381
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

• Tilt: 180°
• Tilt Ranges: 0° to 180°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

Construction/Physical

• Dimensions: 16.02 x 6.90 x 12.30 in (407 x 175.4 x 312.5 mm)
• Weight: 26.6 lb (12.1 kg)
• Exterior Color: Black
• Housing Material: Magnesium alloy

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: Art-Net, DMX, RDM, sACN
• DMX Channels: 8, 11, 13, 24, 30, 47, 68, 74 or 97
• Art-Net Channels: 8, 11, 13, 24, 30, 47, 68, 74 or 97
• Modes/Personalities: 8 personalities (8, 11, 13, 24, 30, 47, 68, 74, 97)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 720 W, 7.14 A @ 100 V, 60 Hz
• Power and Current: 740 W, 6.36 A @ 120 V, 60 Hz
• Power and Current: 716 W, 2.35 A @ 208 V, 60 Hz
• Power and Current: 696 W, 3.27 A @ 230 V, 50 Hz
• Power and Current: 709 W, 3.02 A @ 240 V, 50 Hz

Certifications/Qualifications

• Certifications: CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

Compatible Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-08
• IP Rated Seetronic Powerkon Extensions
• IP Rated DMX cables
• IP Rated EtherCon Cables
• UPLOAD 03 software uploader

What’s Included

• Color STRIKE M
• Seetronic Powerkon IP65 power cord
• Omega bracket
