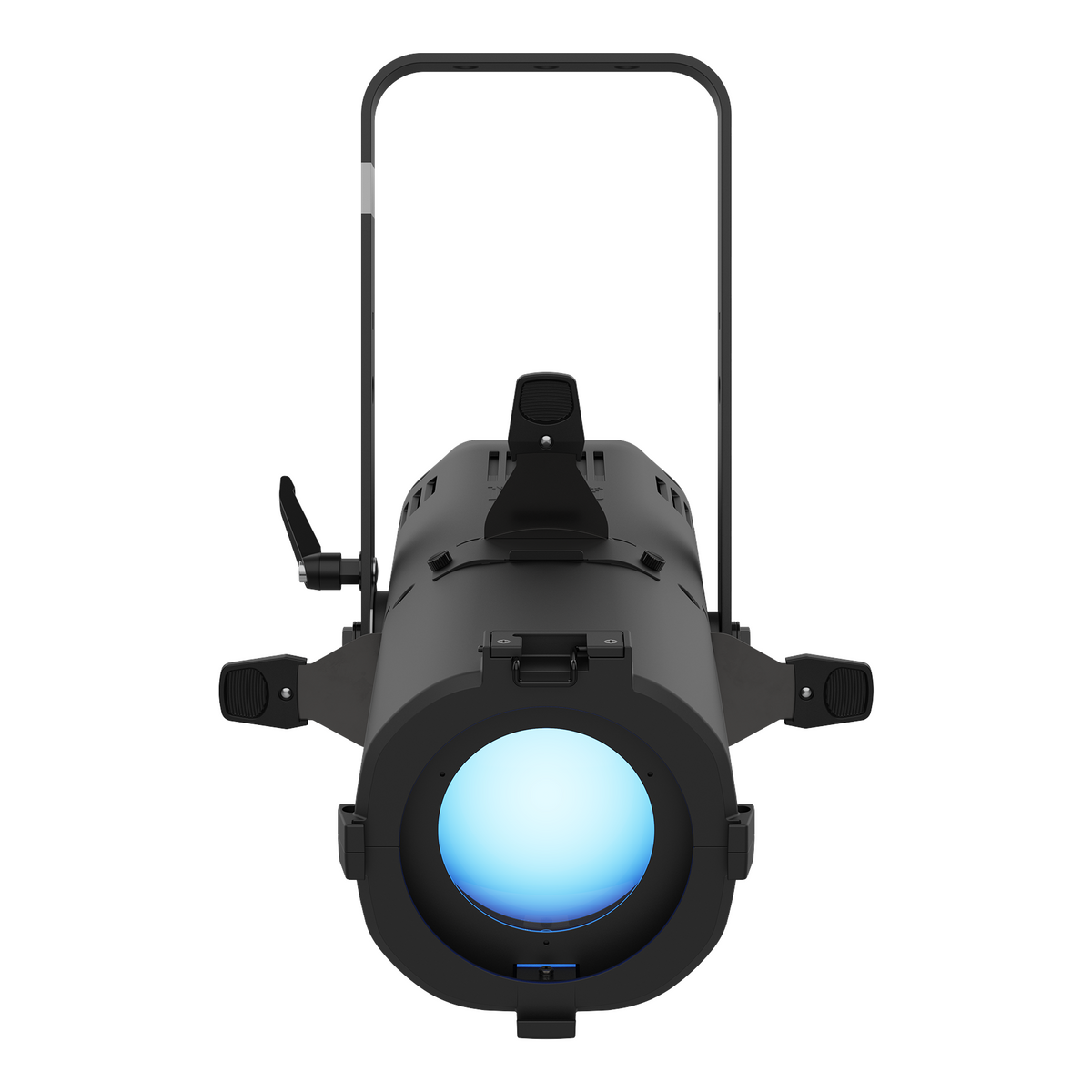

Chauvet Professional Ovation E-2 FC RGBA-Lime LED Ellipsoidal Spotlight

Get High-CRI Color and Quiet Performance with the CHAUVET Professional Ovation E-2 FC LED Ellipsoidal Spotlight

A compact LED ellipsoidal spotlight delivering high-CRI, full-spectrum RGBA-Lime color mixing with an integrated manual zoom and a dedicated focus mode. Its quiet and durable design is optimized for smaller venues requiring high-quality light and silent operation.

• Delivers an adjustable color temperature from 2800 K to 8000 K with a high CRI of 93.
• Provides a versatile 25° to 50° manual zoom range for precise beam shaping and coverage.
• Offers advanced color control with plus/minus green adjustment and emulated red-shift.
• Achieves exceptionally smooth fades and transitions with advanced 18-bit dimming curves.
• Supports DMX and RDM protocols with nine personalities for flexible control integration.
• Simplifies installations with power linking for up to 7 units at 120 V.

Ovation E-2 FC is a compact LED ellipsoidal spotlight that delivers high quality of light and convenient features in a quiet durable design optimized for smaller venues. Its advanced full spectrum Ovation color mixing system produces exceptionally high CRI output that can be smoothly sized with an integrated manual Zoom and focusing made easier with a dedicated Focus Mode button.

Full Spectrum LED Fixture

An ERS-style LED light designed for vibrant, full-spectrum color in small theaters and studios.

Integrated Zoom Lens

Features a built-in 25 to 50 degree zoom lens for flexible beam angle adjustments.

Adjustable Color Temperature

Offers a wide range of color temperature presets from 2800 K to 8000 K with high color rendering.

Advanced Color Control

Provides precise plus/minus green adjustment and emulated red-shift effects via DMX or on-board controls.

One-Touch Focus Mode

A dedicated button allows for instant activation of a focus mode, simplifying adjustments without a console operator.

Smooth 18-Bit Dimming

Delivers exceptionally smooth dimming curves and speeds to seamlessly complement any lighting scheme.

USB Software Updates

Includes a convenient USB port for easy and straightforward fixture software updates.

SPECIFICATIONS

Optical

• Light Source: 72 LEDs (15 reds 11 green, 6 blue, 4 cyan, 14 amber, 22 lime) 6 to 9.75 W, (1.5 A) 50,000 hours life expectancy
• Color Temperature Range: 2800 to 8000 K
• Color Temperature (at Full): 4525 K
• CRI (3200 K): 93
• Zoom Range: 23.8° to 51.8°
• Lumens (Spot): 3708 lm
• Lumens (Flood): 5608 lm
• Lumens (50% Zoom): 5147 lm
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

• Framing Shutters: Yes
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual
• Focus: Manual
• Strobe Rate: 0 to 25 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

Construction and Physical

• Dimensions: 18.1 x 12.2 x 17.5 in (461 x 310 x 445 mm)
• Weight: 14.8 lb (6.7 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 6.25 in (159 mm)
• Gobo Size (Optional): “M”: 66 mm (outside), 48 mm (image), 2 mm (max. thickness)

Connections

• Power Connection: Edison (Local) plug to Seetronic Powercon IP65
• Power Input: Seetronic Powercon IP65
• Power Output: Seetronic Powercon IP65
• Data Connectors: 5-pin XLR
• Cable Length (Power): 5 ft (1.5 m)
• Software Connection: USB

Control

• Control Protocol: DMX, RDM
• DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17, or HSV
• Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17, or HSV)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
• Power and Current: 208 W, 1.71 A @ 120 V, 60 Hz
• Power and Current: 219 W, 1.10 A @ 208 V, 60 Hz
• Power and Current: 220 W, 0.98 A @ 230 V, 50 Hz

Certifications and Qualifications

• Certifications: CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
